Mitre Gears
-
Plastic Mitre Gear DP16 16T 1:1 (PBMDP16/16)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioPlastic Mitre Gear DP16 16T 1:1 (PBMDP16/16) Part No. 7708-201 Code PBMDP16/16 DP 16 No. Teeth 16 dp (in) 1 de (in) 1.09 dm (in) 0.75 Bore +0.001 -0.002 0.375 F (in) 0.236 Lm (in) 0.437 A (in) 0.75 V+A (ins) 1.063 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£45.07
-
Nylon 6 Mitre Gear DP16 32T 1:1 (PBMDP16/32)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP16 32T 1:1 (PBMDP16/32) Part No. 7708-202 Code PBMDP16/32 DP 16 No. Teeth 32 dp (in) 2 de (in) 2.088 dm (in) 1.25 Bore +0.001 -0.002 0.5 F (in) 0.4 Lm (in) 0.375 A (in) 0.875 V+A (ins) 1.562 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£40.83
-
Nylon 6 Mitre Gear DP24 24T 1:1 (PBMDP24/24)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP24 24T 1:1 (PBMDP24/24) Part No. 7708-203 Code PBMDP24/24 DP 24 No. Teeth 24 dp (in) 1 de (in) 1.05 dm (in) 0.625 Bore +0.001 -0.002 0.252 F (in) 0.182 Lm (in) 0.188 A (in) 0.562 V+A (ins) 0.906 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£27.13
-
Nylon 6 Mitre Gear DP24 30T 1:1 (PBMDP24/30)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP24 30T 1:1 (PBMDP24/30) Part No. 7708-204 Code PBMDP24/30 DP 24 No. Teeth 30 dp (in) 1.25 de (in) 1.31 dm (in) 0.625 Bore +0.001 -0.002 0.25 F (in) 0.22 Lm (in) 0.312 A (in) 0.578 V+A (ins) 1.031 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£27.44
-
Nylon 6 Mitre Gear DP24 36T 1:1 (PBMDP24/36)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP24 36T 1:1 (PBMDP24/36) Part No. 7708-205 Code PBMDP24/36 DP 24 No. Teeth 36 dp (in) 1.5 de (in) 1.56 dm (in) 0.687 Bore +0.001 -0.002 0.312 F (in) 0.205 Lm (in) 0.312 A (in) 0.609 V+A (ins) 1.187 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£27.76
-
Nylon 6 Mitre Gear DP32 16T 1:1 (PBMDP32/16)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP32 16T 1:1 (PBMDP32/16) Part No. 7708-206 Code PBMDP32/16 DP 32 No. Teeth 16 dp (in) 0.5 de (in) 0.55 dm (in) 0.406 Bore +0.001 -0.002 0.187 F (in) 0.114 Lm (in) 0.187 A (in) 0.344 V+A (ins) 0.5 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£21.15
-
Nylon 6 Mitre Gear DP32 24T 1:1 (PBMDP32/24)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP32 24T 1:1 (PBMDP32/24) Part No. 7708-207 Code PBMDP32/24 DP 32 No. Teeth 24 dp (in) 0.75 de (in) 0.8 dm (in) 0.5 Bore +0.001 -0.002 0.187 F (in) 0.11 Lm (in) 0.187 A (in) 0.406 V+A (ins) 0.687 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£21.54
-
Nylon 6 Mitre Gear DP48 15T 1:1 (PBMDP48/15)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP48 15T 1:1 (PBMDP48/15) Part No. 7708-208 Code PBMDP48/15 DP 48 No. Teeth 15 dp (in) 0.313 de (in) 0.35 dm (in) 0.25 Bore +0.001 -0.002 0.125 F (in) 0.088 Lm (in) 0.125 A (in) 0.219 V+A (ins) 0.312 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£17.66
-
Nylon 6 Mitre Gear DP48 18T 1:1 (PBMDP48/18)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP48 18T 1:1 (PBMDP48/18) Part No. 7708-209 Code PBMDP48/18 DP 48 No. Teeth 18 dp (in) 0.375 de (in) 0.404 dm (in) 0.328 Bore +0.001 -0.002 0.125 F (in) 0.082 Lm (in) 0.187 A (in) 0.281 V+A (ins) 0.406 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£21.15
-

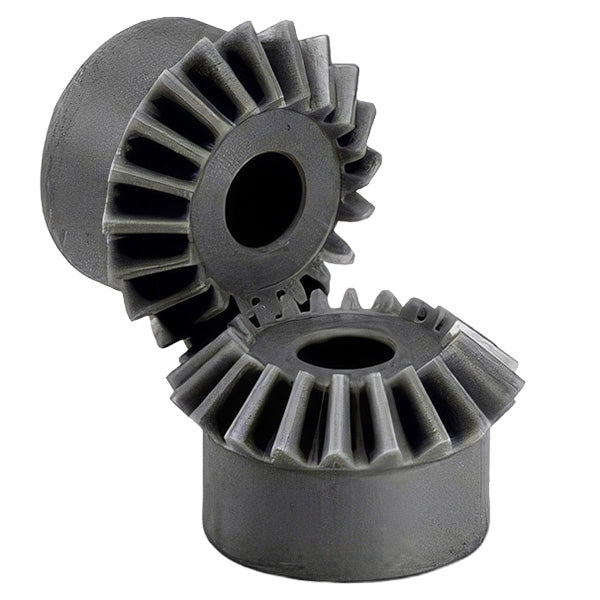

Nylon 6 Mitre Gear DP48 24T 1:1 (PBMDP48/24)
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 RatioNylon 6 Mitre Gear DP48 24T 1:1 (PBMDP48/24) Part No. 7708-210 Code PBMDP48/24 DP 48 No. Teeth 24 dp (in) 0.5 de (in) 0.529 dm (in) 0.375 Bore +0.001 -0.002 0.187 F (in) 0.118 Lm (in) 0.25 A (in) 0.375 V+A (ins) 0.531 S 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£20.20
-
Steel Mitre Gear DP10 1:1 20T (SBMDP10/20)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP10 1:1 20T (SBMDP10/20) Part No. 7708-301 Code SBMDP10/20 DP 10 No. Teeth 20 dp (in) 2 de (in) 2.141 dm (in) 1.562 Bore (in) 0.625 F (in) 0.5 Lm (in) 0.531 A (in) 1.145 V+A (in) 1.75 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£69.64
-
Steel Mitre Gear DP10 1:1 24T (SBMDP10/24)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP10 1:1 24T (SBMDP10/24) Part No. 7708-302 Code SBMDP10/24 DP 10 No. Teeth 24 dp (in) 2.4 de (in) 2.541 dm (in) 1.875 Bore (in) 0.625 F (in) 0.55 Lm (in) 0.63 A (in) 1.362 V+A (in) 2.125 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£97.29
-
Steel Mitre Gear DP10 1:1 25T (SBMDP10/25)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP10 1:1 25T (SBMDP10/25) Part No. 7708-303 Code SBMDP10/25 DP 10 No. Teeth 25 dp (in) 2.5 de (in) 2.641 dm (in) 1.875 Bore (in) 0.75 F (in) 0.562 Lm (in) 0.561 A (in) 1.315 V+A (in) 2.124 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£95.13
-
Steel Mitre Gear DP12 1:1 18T (SBMDP12/18)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP12 1:1 18T (SBMDP12/18) Part No. 7708-304 Code SBMDP12/18 DP 12 No. Teeth 18 dp (in) 1.5 de (in) 1.618 dm (in) 1.25 Bore (in) 0.375 F (in) 0.33 Lm (in) 0.505 A (in) 0.896 V+A (in) 1.375 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£57.53
-
Steel Mitre Gear DP12 1:1 24T (SBMDP12/24)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP12 1:1 24T (SBMDP12/24) Part No. 7708-305 Code SBMDP12/24 DP 12 No. Teeth 24 dp (in) 2 de (in) 2.118 dm (in) 1.602 Bore (in) 0.5 F (in) 0.375 Lm (in) 0.801 A (in) 1.306 V+A (in) 2 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£79.36
-
Steel Mitre Gear DP16 1:1 16T (SBMDP16/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP16 1:1 16T (SBMDP16/16) Part No. 7708-306 Code SBMDP16/16 DP 16 No. Teeth 16 dp (in) 1 de (in) 1.088 dm (in) 0.78 Bore (in) 0.312 F (in) 0.234 Lm (in) 0.455 A (in) 0.756 V+A (in) 1.064 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£46.59
-
Steel Mitre Gear DP16 1:1 18T (SBMDP16/18)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP16 1:1 18T (SBMDP16/18) Part No. 7708-307 Code SBMDP16/18 DP 16 No. Teeth 18 dp (in) 1.125 de (in) 1.213 dm (in) Bore (in) F (in) Lm (in) A (in) V+A (in) S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£47.40
-
Steel Mitre Gear DP16 1:1 20T (SBMDP16/20)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP16 1:1 20T (SBMDP16/20) Part No. 7708-308 Code SBMDP16/20 DP 16 No. Teeth 20 dp (in) 1.25 de (in) 1.338 dm (in) 1.063 Bore (in) 0.375 F (in) 0.284 Lm (in) 0.535 A (in) 0.85 V+A (in) 1.25 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£51.29
-
Steel Mitre Gear DP16 1:1 32T (SBMDP16/32)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP16 1:1 32T (SBMDP16/32) Part No. 7708-309 Code SBMDP16/32 DP 16 No. Teeth 32 dp (in) 2 de (in) 2.088 dm (in) 1.7 Bore (in) 0.5 F (in) 0.45 Lm (in) 0.351 A (in) 0.846 V+A (in) 1.5 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£84.93
-
Steel Mitre Gear DP20 12T 1:1 (SBMDP20/12)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP20 12T 1:1 (SBMDP20/12) Part No. 7708-310 Code SBMDP20/12 DP 20 No. Teeth 12 dp (in) 0.6 de (in) 0.656 dm (in) 0.5 Bore (in) 0.25 F (in) 0.12 Lm (in) 0.312 A (in) 0.484 V+A (in) 0.671 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£70.31
-
Steel Mitre Gear DP20 18T 1:1 (SBMDP20/18)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP20 18T 1:1 (SBMDP20/18) Part No. 7708-311 Code SBMDP20/18 DP 20 No. Teeth 18 dp (in) 0.9 de (in) 0.956 dm (in) 0.625 Bore (in) 0.312 F (in) 0.14 Lm (in) 0.406 A (in) 0.625 V+A (in) 0.953 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£72.37
-
Steel Mitre Gear DP20 20T 1:1 (SBMDP20/20)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP20 20T 1:1 (SBMDP20/20) Part No. 7708-312 Code SBMDP20/20 DP 20 No. Teeth 20 dp (in) 1 de (in) 1.056 dm (in) 0.75 Bore (in) 0.375 F (in) 0.234 Lm (in) 0.5 A (in) 0.812 V+A (in) 1.125 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£80.68
-
Steel Mitre Gear DP20 25T 1:1 (SBMDP20/25)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP20 25T 1:1 (SBMDP20/25) Part No. 7708-313 Code SBMDP20/25 DP 20 No. Teeth 25 dp (in) 1.25 de (in) 1.31 dm (in) 1 Bore (in) 0.375 F (in) 0.25 Lm (in) 0.437 A (in) 0.75 V+A (in) 1.188 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£92.14
-
Steel Mitre Gear DP24 18T 1:1 (SBMDP24/18)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP24 18T 1:1 (SBMDP24/18) Part No. 7708-314 Code SBMDP24/18 DP 24 No. Teeth 18 dp (in) 0.75 de (in) 0.803 dm (in) 0.625 Bore (in) 0.25 F (in) 0.156 Lm (in) 0.375 A (in) 0.562 V+A (in) 0.813 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£60.14
-
Steel Mitre Gear DP24 24T 1:1 (SBMDP24/24)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP24 24T 1:1 (SBMDP24/24) Part No. 7708-315 Code SBMDP24/24 DP 24 No. Teeth 24 dp (in) 1 de (in) 1.053 dm (in) 0.625 Bore (in) 0.25 F (in) 0.2 Lm (in) 0.281 A (in) 0.562 V+A (in) 0.906 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£71.90
