Duplex Pilot Bore Sprockets
-
05B-2 10T Duplex Steel Sprocket (8MMDR10)
Duplex 8mm (05B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4505B-2 10T Duplex Steel Sprocket (8MMDR10) Part No. 7821-001 Code 8MMDR10 No. teeth 10 Outside dia. de 29.2 Pitch dia. dp 25.89 Boss dia. 17 Bore D1* 8 Overall Width A 18 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.34
-
05B-2 16T Duplex Steel Sprocket (8MMDR16)
Duplex 8mm (05B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4505B-2 16T Duplex Steel Sprocket (8MMDR16) Part No. 7821-002 Code 8MMDR16 No. teeth 16 Outside dia. de 44.3 Pitch dia. dp 41.01 Boss dia. 32 Bore D1* 10 Overall Width A 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.73
-
05B-2 23T Duplex Steel Sprocket (8MMDR23)
Duplex 8mm (05B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4505B-2 23T Duplex Steel Sprocket (8MMDR23) Part No. 7821-004 Code 8MMDR23 No. teeth 23 Outside dia. de 62 Pitch dia. dp 58.75 Boss dia. 40 Bore D1* 10 Overall Width A 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.30
-
06B-2 10T Duplex Steel Sprocket (3DR10)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 10T Duplex Steel Sprocket (3DR10) Part No. 7822-101 Code 3DR10 No. teeth 10 Outside dia. de 34 Pitch dia. dp 30.82 Boss dia. 20 Bore D1* 8 Overall Width A 22 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.92
-
06B-2 11T Duplex Steel Sprocket (3DR11)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 11T Duplex Steel Sprocket (3DR11) Part No. 7822-102 Code 3DR11 No. teeth 11 Outside dia. de 37 Pitch dia. dp 33.8 Boss dia. 22 Bore D1* 10 Overall Width A 25 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.92
-
06B-2 12T Duplex Steel Sprocket (3DR12)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 12T Duplex Steel Sprocket (3DR12) Part No. 7822-104 Code 3DR12 No. teeth 12 Outside dia. de 40 Pitch dia. dp 36.8 Boss dia. 25 Bore D1* 10 Overall Width A 25 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.52
-
06B-2 13T Duplex Steel Sprocket (3DR13)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 13T Duplex Steel Sprocket (3DR13) Part No. 7822-105 Code 3DR13 No. teeth 13 Outside dia. de 43 Pitch dia. dp 39.8 Boss dia. 28 Bore D1* 10 Overall Width A 25 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.26
-
06B-2 14T Duplex Steel Sprocket (3DR14)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 14T Duplex Steel Sprocket (3DR14) Part No. 7822-106 Code 3DR14 No. teeth 14 Outside dia. de 46.3 Pitch dia. dp 42.8 Boss dia. 31 Bore D1* 10 Overall Width A 25 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.30
-
06B-2 15T Duplex Steel Sprocket (3DR15)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 15T Duplex Steel Sprocket (3DR15) Part No. 7822-107 Code 3DR15 No. teeth 15 Outside dia. de 49.3 Pitch dia. dp 45.81 Boss dia. 34 Bore D1* 10 Overall Width A 25 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.56
-
06B-2 16T Duplex Steel Sprocket (3DR16)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 16T Duplex Steel Sprocket (3DR16) Part No. 7822-108 Code 3DR16 No. teeth 16 Outside dia. de 52.3 Pitch dia. dp 48.82 Boss dia. 37 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.92
-
06B-2 17T Duplex Steel Sprocket (3DR17)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 17T Duplex Steel Sprocket (3DR17) Part No. 7822-109 Code 3DR17 No. teeth 17 Outside dia. de 55.3 Pitch dia. dp 51.83 Boss dia. 40 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.07
-
06B-2 18T Duplex Steel Sprocket (3DR18)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 18T Duplex Steel Sprocket (3DR18) Part No. 7822-110 Code 3DR18 No. teeth 18 Outside dia. de 58.3 Pitch dia. dp 54.85 Boss dia. 43 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.72
-
06B-2 19T Duplex Steel Sprocket (3DR19)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 19T Duplex Steel Sprocket (3DR19) Part No. 7822-111 Code 3DR19 No. teeth 19 Outside dia. de 61.3 Pitch dia. dp 57.87 Boss dia. 46 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.26
-
06B-2 20T Duplex Steel Sprocket (3DR20)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 20T Duplex Steel Sprocket (3DR20) Part No. 7822-113 Code 3DR20 No. teeth 20 Outside dia. de 64.3 Pitch dia. dp 60.89 Boss dia. 49 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.23
-
06B-2 21T Duplex Steel Sprocket (3DR21)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 21T Duplex Steel Sprocket (3DR21) Part No. 7822-114 Code 3DR21 No. teeth 21 Outside dia. de 68 Pitch dia. dp 63.91 Boss dia. 52 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.40
-
06B-2 22T Duplex Steel Sprocket (3DR22)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 22T Duplex Steel Sprocket (3DR22) Part No. 7822-116 Code 3DR22 No. teeth 22 Outside dia. de 71 Pitch dia. dp 66.93 Boss dia. 55 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.59
-
06B-2 23T Duplex Steel Sprocket (3DR23)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 23T Duplex Steel Sprocket (3DR23) Part No. 7822-118 Code 3DR23 No. teeth 23 Outside dia. de 73.5 Pitch dia. dp 69.95 Boss dia. 58 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.96
-
06B-2 24T Duplex Steel Sprocket (3DR24)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 24T Duplex Steel Sprocket (3DR24) Part No. 7822-119 Code 3DR24 No. teeth 24 Outside dia. de 77 Pitch dia. dp 72.97 Boss dia. 61 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.98
-
06B-2 25T Duplex Steel Sprocket (3DR25)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 25T Duplex Steel Sprocket (3DR25) Part No. 7822-121 Code 3DR25 No. teeth 25 Outside dia. de 80 Pitch dia. dp 76 Boss dia. 64 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.96
-
06B-2 26T Duplex Steel Sprocket (3DR26)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 26T Duplex Steel Sprocket (3DR26) Part No. 7822-122 Code 3DR26 No. teeth 26 Outside dia. de 83 Pitch dia. dp 79.02 Boss dia. 67 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.96
-
06B-2 28T Duplex Steel Sprocket (3DR28)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 28T Duplex Steel Sprocket (3DR28) Part No. 7822-124 Code 3DR28 No. teeth 28 Outside dia. de 89 Pitch dia. dp 85.07 Boss dia. 73 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.44
-
06B-2 29T Duplex Steel Sprocket (3DR29)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 29T Duplex Steel Sprocket (3DR29) Part No. 7822-125 Code 3DR29 No. teeth 29 Outside dia. de 92 Pitch dia. dp 88.09 Boss dia. 76 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.72
-

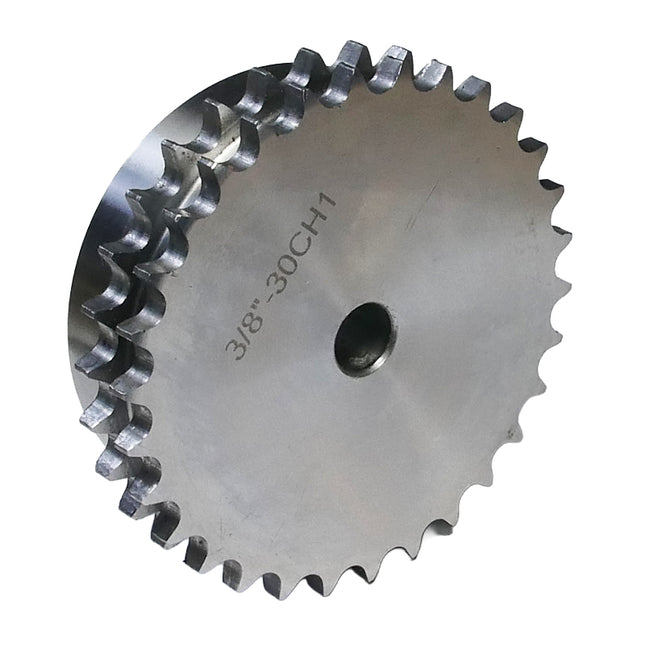

06B-2 30T Duplex Steel Sprocket (3DR30)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 30T Duplex Steel Sprocket (3DR30) Part No. 7822-126 Code 3DR30 No. teeth 30 Outside dia. de 94.7 Pitch dia. dp 91.12 Boss dia. 79 Bore D1* 12 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.40
-
06B-2 32T Duplex Steel Sprocket (3DR32)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 32T Duplex Steel Sprocket (3DR32) Part No. 7822-127 Code 3DR32 No. teeth 32 Outside dia. de 101.3 Pitch dia. dp 97.17 Boss dia. 80 Bore D1* 16 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£10.06
-
06B-2 34T Duplex Steel Sprocket (3DR34)
Duplex 3/8" (06B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C4506B-2 34T Duplex Steel Sprocket (3DR34) Part No. 7822-128 Code 3DR34 No. teeth 34 Outside dia. de 107.3 Pitch dia. dp 103.23 Boss dia. 80 Bore D1* 16 Overall Width A 30 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£15.18
You have seen 25 out of 225 products
