Bevel Gears
-
Hostaform MOD 1 2:1 Bevel Hostaform C Gear 15T/30T (WPRB10/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 1 2:1 Bevel POM C Gear 15T/30T (WPRB10/2) Part No. 7707-201 Code WPRB10/2 Pitch module 1 No. teeth 15 dp (mm) 15 de(mm) 16.8 dm (mm) 12.2 Bore 5 F(mm) 6.6 Lm(mm) 10.6 A(mm) 17 A+V (mm) 26.4 S (mm) 0 Part No. 7707-201 Code WPRB10/2 Pitch module 1 No. teeth 30 dp (mm) 30 de(mm) 31.1 dm (mm) 18 Bore 8 F(mm) 6.6 Lm(mm) 9.1 A(mm) 16.2 A+V (mm) 20.9 S (mm) 1.4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.14
-
Hostaform MOD 1 3:1 Bevel Hostaform C Gear 15T/45T (WPRB10/3)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 1 3:1 Bevel POM C Gear 15T/45T (WPRB10/3) Part No. 7707-202 Code WPRB10/3 Pitch module 1 No. teeth 15 dp (mm) 15 de(mm) 16.6 dm (mm) 12.3 Bore 5 F(mm) 9.2 Lm(mm) 11 A(mm) 20.4 A+V (mm) 34.3 S (mm) 0 Part No. 7707-202 Code WPRB10/3 Pitch module 1 No. teeth 45 dp (mm) 45 de(mm) 46.1 dm (mm) 23.4 Bore 10 F(mm) 9.2 Lm(mm) 9.6 A(mm) 18.2 A+V (mm) 22.7 S (mm) 1.7 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.95
-
Hostaform MOD 1 4:1 Bevel Hostaform C Gear 10T/40T (WPRB10/4)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 1 4:1 Bevel POM C Gear 10T/40T (WPRB10/4) Part No. 7707-203 Code WPRB10/4 Pitch module 1 No. teeth 10 dp (mm) 10 de(mm) 12 dm (mm) 7.8 Bore 4 F(mm) 8.2 Lm(mm) 9.3 A(mm) 17.7 A+V (mm) 30.1 S (mm) 0 Part No. 7707-203 Code WPRB10/4 Pitch module 1 No. teeth 40 dp (mm) 40 de(mm) 40.8 dm (mm) 23.4 Bore 10 F(mm) 8.2 Lm(mm) 10.8 A(mm) 17 A+V (mm) 20.1 S (mm) 1.3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.95
-
Hostaform MOD 1 1:5 Bevel Hostaform C Gear 12T/60T (WPRB10/5)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 1 1:5 Bevel POM C Gear 12T/60T (WPRB10/5) Part No. 7707-204 Code WPRB10/5 Pitch module 1 No. teeth 12 dp (mm) 12 de(mm) 13.7 dm (mm) 9.5 Bore 4 F(mm) 9.5 Lm(mm) 10 A(mm) 20.3 A+V (mm) 40.5 S (mm) 0 Part No. 7707-204 Code WPRB10/5 Pitch module 1 No. teeth 60 dp (mm) 60 de(mm) 60.4 dm (mm) 20.5 Bore 10 F(mm) 9.5 Lm(mm) 11 A(mm) 17.4 A+V (mm) 21 S (mm) 1.9 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.48
-
Hostaform MOD 1.5 2:1 Bevel Hostaform C Gear 15T/30T (WPRB15/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 1.5 2:1 Bevel POM C Gear 15T/30T (WPRB15/2) Part No. 7707-205 Code WPRB15/2 Pitch module 1.5 No. teeth 15 dp (mm) 22.5 de(mm) 25.4 dm (mm) 17 Bore 8 F(mm) 11 Lm(mm) 11.5 A(mm) 22.8 A+V (mm) 35.8 S (mm) 0 Part No. 7707-205 Code WPRB15/2 Pitch module 1.5 No. teeth 30 dp (mm) 45 de(mm) 46.4 dm (mm) 23.4 Bore 10 F(mm) 11 Lm(mm) 9.6 A(mm) 19.5 A+V (mm) 26.2 S (mm) 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.01
-
Hostaform MOD 1.5 3:1 Bevel Hostaform C Gear 15T/45T (WPRB15/3)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 1.5 3:1 Bevel POM C Gear 15T/45T (WPRB15/3) Part No. 7707-206 Code WPRB15/3 Pitch module 1.5 No. teeth 15 dp (mm) 22.5 de(mm) 25.1 dm (mm) 17.2 Bore 8 F(mm) 14 Lm(mm) 12.5 A(mm) 26.8 A+V (mm) 47.9 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.68
-
Hostaform MOD 1.5 4:1 Bevel Hostaform C Gear 10T/40T (WPRB15/4)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 1.5 4:1 Bevel POM C Gear 10T/40T (WPRB15/4) Part No. 7707-207 Code WPRB15/4 Pitch module 1.5 No. teeth 10 dp (mm) 15 de(mm) 18 dm (mm) 11.3 Bore 5 F(mm) 12 Lm(mm) 10.9 A(mm) 23.5 A+V (mm) 41.7 S (mm) 0 Part No. 7707-207 Code WPRB15/4 Pitch module 1.5 No. teeth 40 dp (mm) 60 de(mm) 61.2 dm (mm) 30.4 Bore 12 F(mm) 12 Lm(mm) 12.8 A(mm) 21.7 A+V (mm) 26.2 S (mm) 1.7 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£10.85
-
Hostaform MOD 2 2:1 Bevel Hostaform C Gear 15T/30T (WPRB20/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 2 2:1 Bevel POM C Gear 15T/30T (WPRB20/2) Part No. 7707-208 Code WPRB20/2 Pitch module 2 No. teeth 15 dp (mm) 30 de(mm) 33.6 dm (mm) 22.5 Bore 10 F(mm) 15 Lm(mm) 11.8 A(mm) 27 A+V (mm) 44.2 S (mm) 1 Part No. 7707-208 Code WPRB20/2 Pitch module 2 No. teeth 30 dp (mm) 60 de(mm) 62.2 dm (mm) 30.2 Bore 12 F(mm) 15 Lm(mm) 11.8 A(mm) 24.2 A+V (mm) 32.6 S (mm) 1.6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.84
-
Hostaform MOD 2 3:1 Bevel Hostaform C Gear 10T/30T (WPRB20/3)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 2 3:1 Bevel POM C Gear 10T/30T (WPRB20/3) Part No. 7707-209 Code WPRB20/3 Pitch module 2 No. teeth 10 dp (mm) 20 de(mm) 24 dm (mm) 16.6 Bore 6 F(mm) 13 Lm(mm) 12 A(mm) 25 A+V (mm) 43.7 S (mm) 0 Part No. 7707-209 Code WPRB20/3 Pitch module 2 No. teeth 30 dp (mm) 60 de(mm) 61.7 dm (mm) 30.3 Bore 12 F(mm) 13 Lm(mm) 11.5 A(mm) 22.5 A+V (mm) 28 S (mm) 2.3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.58
-
Hostaform MOD 2 4:1 Bevel Hostaform C Gear 10T/40T (WPRB20/4)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 2 4:1 Bevel POM C Gear 10T/40T (WPRB20/4) Part No. 7707-210 Code WPRB20/4 Pitch module 2 No. teeth 10 dp (mm) 20 de(mm) 23.8 dm (mm) 14.3 Bore 6 F(mm) 16 Lm(mm) 12.8 A(mm) 28.9 A+V (mm) 54 S (mm) 0 Part No. 7707-210 Code WPRB20/4 Pitch module 2 No. teeth 40 dp (mm) 80 de(mm) 81.5 dm (mm) 36 Bore 18 F(mm) 16 Lm(mm) 16.6 A(mm) 27 A+V (mm) 32.5 S (mm) 2.3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£18.18
-
Hostaform MOD 2.5 2:1 Bevel Hostaform C Gear 15T/30T (WPRB25/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 2.5 2:1 Bevel POM C Gear 15T/30T (WPRB25/2) Part No. 7707-211 Code WPRB25/2 Pitch module 2.5 No. teeth 15 dp (mm) 37.5 de(mm) 42 dm (mm) 26.5 Bore 12 F(mm) 17 Lm(mm) 13 A(mm) 31.2 A+V (mm) 53.3 S (mm) 1.6 Part No. 7707-211 Code WPRB25/2 Pitch module 2.5 No. teeth 30 dp (mm) 75 de(mm) 77.3 dm (mm) 36.1 Bore 16 F(mm) 17 Lm(mm) 15 A(mm) 29.5 A+V (mm) 40.5 S (mm) 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£19.91
-
Hostaform MOD 2.5 3:1 Bevel Hostaform C Gear 10T/30T (WPRB25/3)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 2.5 3:1 Bevel POM C Gear 10T/30T (WPRB25/3) Part No. 7707-212 Code WPRB25/3 Pitch module 2.5 No. teeth 10 dp (mm) 25 de(mm) 29.7 dm (mm) 18.8 Bore 8 F(mm) 16 Lm(mm) 13 A(mm) 28.8 A+V (mm) 52.4 S (mm) 0 Part No. 7707-212 Code WPRB25/3 Pitch module 2.5 No. teeth 30 dp (mm) 75 de(mm) 77.2 dm (mm) 36.1 Bore 18 F(mm) 16 Lm(mm) 15.5 A(mm) 29 A+V (mm) 35.7 S (mm) 3.8 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£19.24
-

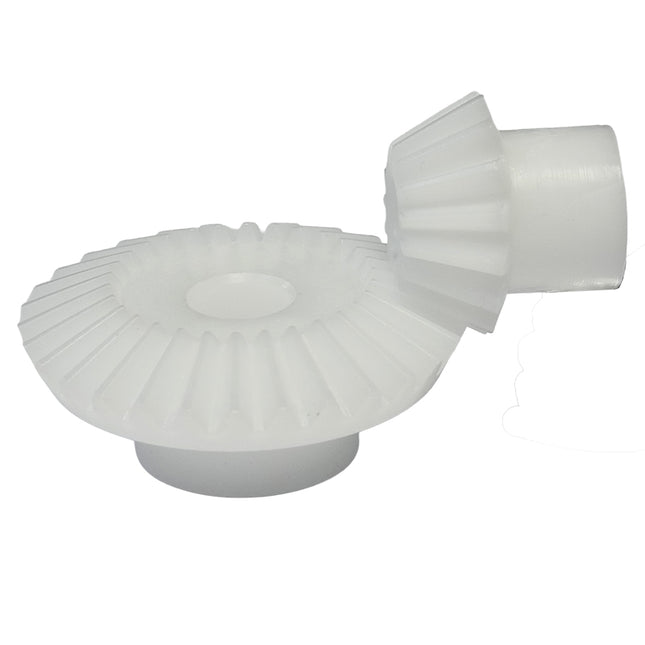

Hostaform MOD 3 2:1 Bevel Hostaform C Gear 15T/30T (WPRB30/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CMod 3 2:1 Bevel POM C Gear 15T/30T (WPRB30/2) Part No. 7707-213 Code WPRB30/2 Pitch module 3 No. teeth 15 dp (mm) 45 de(mm) 50.3 dm (mm) 31.2 Bore 14 F(mm) 21 Lm(mm) 14.8 A(mm) 36.3 A+V (mm) 63.3 S (mm) 1.3 Part No. 7707-213 Code WPRB30/2 Pitch module 3 No. teeth 30 dp (mm) 90 de(mm) 93 dm (mm) 45 Bore 18 F(mm) 21 Lm(mm) 19 A(mm) 37 A+V (mm) 49.5 S (mm) 2.8 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£26.91
-

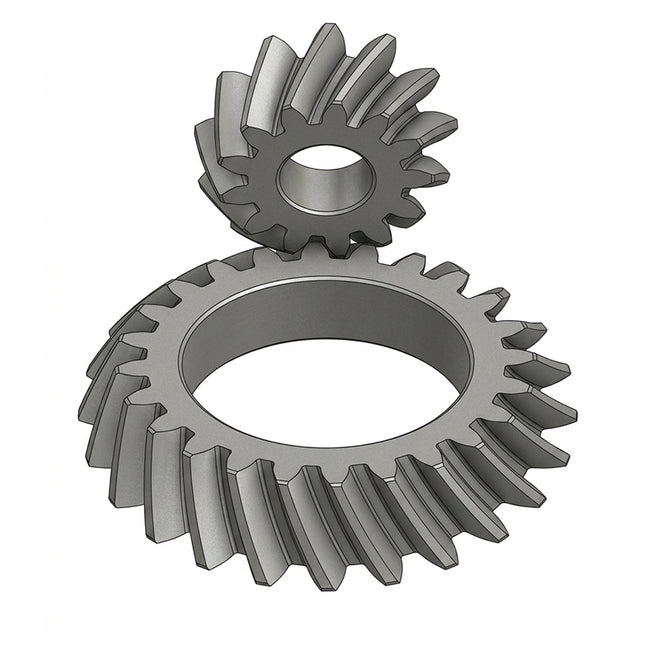

Steel Spiral Bevel Gear MOD 1.5 16T/32T (SRBSP15/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spiral Bevel Gear Mod 1.5 16T/32T (SRBSP15/2) Part No. 7707-301 Code SRBSP15/2 Pitch Module 1.5 No. Teeth 16 dp (mm) 24 de (mm) 27 dm (mm) 20 Bore (H8) 10 F (mm) 8 Lm (mm) 9.5 A (mm) 18.6 V+A (mm) 35 S (mm) 1.6 Part No. 7707-301 Code SRBSP15/2 Pitch Module 1.5 No. Teeth 32 dp (mm) 48 de (mm) 48 dm (mm) 32 Bore (H8) 12 F (mm) 8 Lm (mm) 10 A (mm) 20 V+A (mm) 28 S (mm) 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£107.45
-
Steel Spiral Bevel Gear MOD 2.0 16T/32T (SRBSP20/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spiral Bevel Gear Mod 2.0 16T/32T (SRBSP20/2) Part No. 7707-302 Code SRBSP20/2 Pitch Module 2 No. Teeth 16 dp (mm) 32 de (mm) 36 dm (mm) 27 Bore (H8) 10 F (mm) 10 Lm (mm) 11.7 A (mm) 22.5 V+A (mm) 45 S (mm) 1.5 Part No. 7707-302 Code SRBSP20/2 Pitch Module 2 No. Teeth 32 dp (mm) 64 de (mm) 65 dm (mm) 40 Bore (H8) 12 F (mm) 10 Lm (mm) 10 A (mm) 24.1 V+A (mm) 35 S (mm) 2.6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£115.90
-
Steel Spiral Bevel Gear MOD 2.5 16T/32T (SRBSP25/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spiral Bevel Gear Mod 2.5 16T/32T (SRBSP25/2) Part No. 7707-303 Code SRBSP25/2 Pitch Module 2.5 No. Teeth 16 dp (mm) 40 de (mm) 45 dm (mm) 32 Bore (H8) 12 F (mm) 12 Lm (mm) 14 A (mm) 27.5 V+A (mm) 56 S (mm) 2.4 Part No. 7707-303 Code SRBSP25/2 Pitch Module 2.5 No. Teeth 32 dp (mm) 80 de (mm) 81 dm (mm) 50 Bore (H8) 15 F (mm) 12 Lm (mm) 15 A (mm) 29.2 V+A (mm) 43 S (mm) 3.3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£149.57
-
Steel Spiral Bevel Gear MOD 3.0 16T/32T (SRBSP30/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spiral Bevel Gear Mod 3.0 16T/32T (SRBSP30/2) Part No. 7707-304 Code SRBSP30/2 Pitch Module 3 No. Teeth 16 dp (mm) 48 de (mm) 54 dm (mm) 40 Bore (H8) 15 F (mm) 15 Lm (mm) 12 A (mm) 28.4 V+A (mm) 62 S (mm) 3.2 Part No. 7707-304 Code SRBSP30/2 Pitch Module 3 No. Teeth 32 dp (mm) 96 de (mm) 97 dm (mm) 60 Bore (H8) 15 F (mm) 15 Lm (mm) 15 A (mm) 34.6 V+A (mm) 51 S (mm) 4.8 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£171.05
-
Steel Spiral Bevel Gear MOD 4.0 16T/32T (SRBSP40/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spiral Bevel Gear Mod 4.0 16T/32T (SRBSP40/2) Part No. 7707-305 Code SRBSP40/2 Pitch Module 4 No. Teeth 16 dp (mm) 64 de (mm) 72 dm (mm) 50 Bore (H8) 20 F (mm) 20 Lm (mm) 13.5 A (mm) 36.2 V+A (mm) 81 S (mm) 4 Part No. 7707-305 Code SRBSP40/2 Pitch Module 4 No. Teeth 32 dp (mm) 128 de (mm) 129 dm (mm) 80 Bore (H8) 20 F (mm) 20 Lm (mm) 23 A (mm) 44.2 V+A (mm) 66 S (mm) 5.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£268.42
-
Steel Spiral Bevel Gear MOD 5.0 16T/32T (SRBSP50/2)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spiral Bevel Gear Mod 5.0 16T/32T (SRBSP50/2) Part No. 7707-306 Code SRBSP50/2 Pitch Module 5 No. Teeth 16 dp (mm) 80 de (mm) 90 dm (mm) 60 Bore (H8) 20 F (mm) 25 Lm (mm) 21 A (mm) 50 V+A (mm) 106 S (mm) 4.7 Part No. 7707-306 Code SRBSP50/2 Pitch Module 5 No. Teeth 32 dp (mm) 160 de (mm) 162 dm (mm) 90 Bore (H8) 25 F (mm) 25 Lm (mm) 27 A (mm) 53.7 V+A (mm) 81 S (mm) 6.9 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£430.57
-

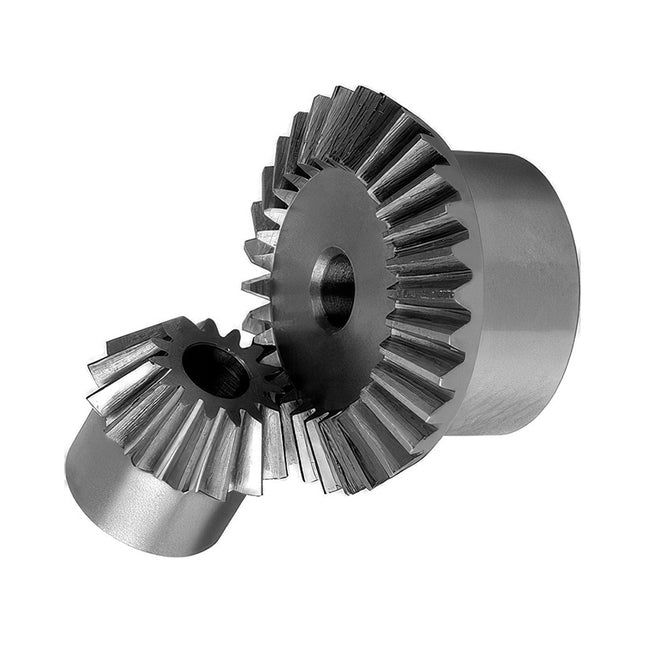

Steel Bevel Gear MOD 1 1.5:1 16T/24T (SRB10/1.5)
These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. Type B, 20° pressure angle. Bore tolerance H8. UNI EN 10083-1, C45E Steel. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.Steel Bevel Gear Mod 1 1.5:1 16T/24T (similar to SRB10/1.5) Part No. 7707-401 Code /Ratio SRB10/1.5 Pitch Module 1 No. Teeth 16 dp (mm) 16 V (mm) 8 d (mm) 13.3 Bore D 4 F (mm) 4.3 H (mm) 12 de (mm) 18.1 S (mm) Lm (mm) 7 Part No. 7707-401 Code /Ratio SRB10/1.5 Pitch Module 1 No. Teeth 24 dp (mm) 24 V (mm) 4.2 d (mm) 20.3 Bore D 5 F (mm) 4.3 H (mm) 14.8 de (mm) 24.8 S (mm) 1.5 Lm (mm) 9.3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£29.93
-
Steel Bevel Gear MOD 1 2:1 15T/30T (SRB10/2)
These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. Type B, 20° pressure angle. Bore tolerance H8. UNI EN 10083-1, C45E Steel. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.Steel Bevel Gear Mod 1 2:1 15T/30T (similar to SRB10/2) Part No. 7707-402 Code /Ratio SRB10/2 Pitch Module 1 No. Teeth 15 dp (mm) 15 V (mm) 10.1 d (mm) 13.3 Bore D 4 F (mm) 5 H (mm) 11.9 de (mm) 17.4 S (mm) Lm (mm) 6.5 Part No. 7707-402 Code /Ratio SRB10/2 Pitch Module 1 No. Teeth 30 dp (mm) 30 V (mm) 4.9 d (mm) 20.3 Bore D 5 F (mm) 5 H (mm) 15.1 de (mm) 30.6 S (mm) 1.4 Lm (mm) 9.0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£33.35
-
Steel Bevel Gear MOD 1 2:1 16T/32T (SRB10/2N)
These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. . Cut to the Gleason System. 20° pressure angle. Bore tolerance H8. DIN 3964, DIN 3967, DIN 3971. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.Steel Bevel Gear Mod 1 2:1 16T/32T (SRB10/2N) Part No. 7707-403 Code /Ratio SRB10/2N Pitch Module 1 No. Teeth 16 dp (mm) 16 A+V (mm) 22 dm (mm) 12 Bore 4 F (mm) 6 A (mm) 11.78 de (mm) 17.8 S (mm) 0 Lm (mm) 5 Part No. 7707-403 Code /Ratio SRB10/2N Pitch Module 1 No. Teeth 32 dp (mm) 32 A+V (mm) 23 dm (mm) 18 Bore 5 F (mm) 32.89 A (mm) 2 de (mm) 10 S (mm) Lm (mm) Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£34.97
-
Steel Bevel Gear MOD 1 3:1 15T/45T (SRB10/3)
These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. Type B, 20° pressure angle. Bore tolerance H8. UNI EN 10083-1, C45E Steel. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.Steel Bevel Gear Mod 1 3:1 15T/45T (similar SRB10/3) Part No. 7707-404 Code /Ratio SRB10/3 Pitch Module 1 No. Teeth 15 dp (mm) 15 V (mm) 15.4 d (mm) 13.3 Bore D 4 F (mm) 7.1 H (mm) 16.6 de (mm) 17.7 S (mm) Lm (mm) 9.2 Part No. 7707-404 Code /Ratio SRB10/3 Pitch Module 1 No. Teeth 45 dp (mm) 45 V (mm) 4.9 d (mm) 25.3 Bore D 8 F (mm) 7.1 H (mm) 17.1 de (mm) 45.3 S (mm) 1.9 Lm (mm) 10.0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£44.29
-
Steel Bevel Gear MOD 1 3:1 16T/48T (SRB10/3N)
These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. . Cut to the Gleason System. 20° pressure angle. Bore tolerance H8. DIN 3964, DIN 3967, DIN 3971. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.Steel Bevel Gear Mod 1 3:1 16T/48T (SRB10/3N) Part No. 7707-405 Code /Ratio SRB10/3N Pitch Module 1 No. Teeth 16 dp (mm) 16 A+V (mm) 32 dm (mm) 12 Bore 4 F (mm) 8 A (mm) 15.91 de (mm) 18 S (mm) 0 Lm (mm) 7.3 Part No. 7707-405 Code /Ratio SRB10/3N Pitch Module 1 No. Teeth 48 dp (mm) 48 A+V (mm) 27 dm (mm) 26 Bore 8 F (mm) 8 A (mm) 21.85 de (mm) 47.5 S (mm) 2.5 Lm (mm) 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£53.70
-
Steel Bevel Gear MOD 1 4:1 15T/60T (SRB10/4)
These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. Type B, 20° pressure angle. Bore tolerance H8. UNI EN 10083-1, C45E Steel. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.Steel Bevel Gear Mod 1 4:1 15T/60T (similar to SRB10/4) Part No. 7707-406 Code /Ratio SRB10/4 Pitch Module 1 No. Teeth 15 dp (mm) 15 V (mm) 20.8 d (mm) 13.3 Bore D 4 F (mm) 9.3 H (mm) 17.2 de (mm) 17.8 S (mm) Lm (mm) 7.7 Part No. 7707-406 Code /Ratio SRB10/4 Pitch Module 1 No. Teeth 60 dp (mm) 60 V (mm) 4.9 d (mm) 30.3 Bore D 8 F (mm) 9.3 H (mm) 17.1 de (mm) 60.3 S (mm) 1.9 Lm (mm) 10 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£56.00
