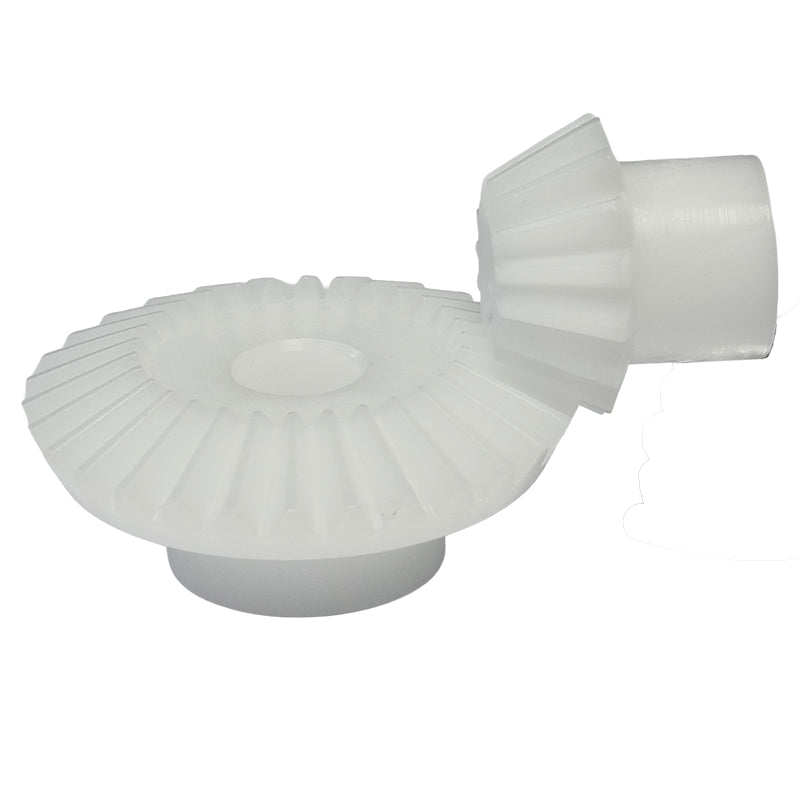

MOD 2 4:1 Bevel Hostaform C Gear 10T/40T (WPRB20/4)

  • Hostaform

Description

DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM C

Mod 2 4:1 Bevel POM C Gear 10T/40T (WPRB20/4)

Part No. 7707-210
Code WPRB20/4
Pitch module 2
No. teeth 10
dp (mm) 20
de(mm) 23.8
dm (mm) 14.3
Bore 6
F(mm) 16
Lm(mm) 12.8
A(mm) 28.9
A+V (mm) 54
S (mm) 0
Part No. 7707-210
Code WPRB20/4
Pitch module 2
No. teeth 40
dp (mm) 80
de(mm) 81.5
dm (mm) 36
Bore 18
F(mm) 16
Lm(mm) 16.6
A(mm) 27
A+V (mm) 32.5
S (mm) 2.3
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur

MOD 2 4:1 Bevel Hostaform C Gear 10T/40T (WPRB20/4)

  • Hostaform
Product form

Part No: 7707-210

DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular... Read more

Free pickup in our shop(s)

£18.18 Excl. VAT

    Description

    DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM C

    Mod 2 4:1 Bevel POM C Gear 10T/40T (WPRB20/4)

    Part No. 7707-210
    Code WPRB20/4
    Pitch module 2
    No. teeth 10
    dp (mm) 20
    de(mm) 23.8
    dm (mm) 14.3
    Bore 6
    F(mm) 16
    Lm(mm) 12.8
    A(mm) 28.9
    A+V (mm) 54
    S (mm) 0
    Part No. 7707-210
    Code WPRB20/4
    Pitch module 2
    No. teeth 40
    dp (mm) 80
    de(mm) 81.5
    dm (mm) 36
    Bore 18
    F(mm) 16
    Lm(mm) 16.6
    A(mm) 27
    A+V (mm) 32.5
    S (mm) 2.3
    Every effort is taken to ensure the accuracy of the table data
    Design variations and errors although rare may occur
