Linear motion bearings for shaft-guided systems, across a wide bore range.
Linear Bearings
-
Makertronics Makertronics Linear Bearing Slide Unit - 6mm SC6UU
A 6mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables. Shaft Diameter: 6mm h: 9mm E: 15mm W: 30mm L: 25mm F: 18mm G: 15mm T: 6mm B: 20mm C: 15mm K: 5mm S1: M4 S2: 3.4mm I: 8mm
£3.74
-
Makertronics Makertronics Linear Bearing Slide Unit - 8mm SC8UU
A 8mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables. Shaft Diameter: 8mm h: 11mm E: 17mm W: 34mm L: 30mm F: 22mm G: 18mm T: 6mm B: 24mm C: 18mm K: 5mm S1: M4 S2: 3.4mm I: 8mm
£2.29
-
Makertronics Makertronics Linear Bearing Slide Unit - 10mm SC10UU
A 10mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables. Shaft Diameter: 10mm h: 13mm E: 20mm W: 40mm L: 35mm F: 26mm G: 21mm T: 8mm B: 28mm C: 21mm K: 6mm S1: M5 S2: 4.3mm I: 10mm
£3.31
-
Makertronics Makertronics Linear Bearing Slide Unit - 12mm SC12UU
A 12mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables. Shaft Diameter: 12mm h: 15mm E: 21mm W: 42mm L: 36mm F: 28mm G: 24mm T: 8mm B: 30.5mm C: 26mm K: 5.75mm S1: M5 S2: 4.3mm I: 12mm
£3.36
-
Makertronics Makertronics Linear Bearing Slide Unit - 16mm SC16UU
A 16mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables. Shaft Diameter: 16mm h: 19mm E: 25mm W: 50mm L: 44mm F: 38.5mm G: 32.5mm T: 9mm B: 36mm C: 34mm K: 7mm S1: M5 S2: 4.3mm I: 16mm
£4.89
-

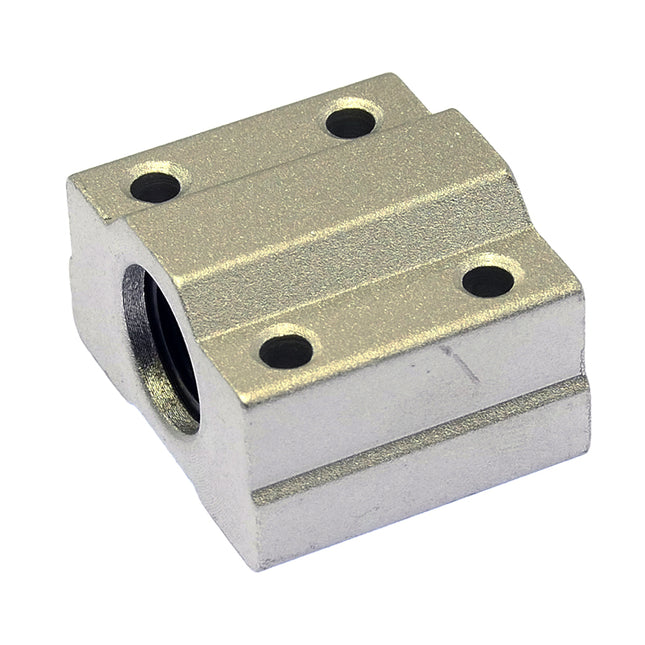

Makertronics Makertronics Linear Bearing Slide Unit - 20mm SC20UU
A 20mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables. Shaft Diameter: 20mm h: 21mm E: 27mm W: 54mm L: 50mm F: 41mm G: 35mm T: 11mm B: 40mm C: 40mm K: 7mm S1: M6 S2: 5.2mm I: 20mm
£5.95
-
Makertronics Makertronics Linear Bearing LM3UU 3mm Bushing
A linear slide bush for 3mm hardened steel shafts. Overal Diameter: 7mm Length: 10mm Inside diameter: 3mm Number of ball rows: 4
£4.18
-
Makertronics Makertronics Linear Bearing LM4UU 4mm Bushing
A linear slide bush for 4mm hardened steel shafts. Overal Diameter: 8mm Length: 12mm Inside diameter: 4mm Number of ball rows: 4
£1.80
-
Makertronics Makertronics Linear Bearing LM5UU 5mm Bushing
A linear slide bush for 5mm hardened steel shafts. Overal Diameter: 10mm Length: 15mm Inside diameter: 5mm Number of ball rows: 4 Dynamic Load Rating: 16kgf Staic Load: 20kgf
£1.80
-
Makertronics Makertronics Linear Bearing LM6UU 6mm Bushing
A linear slide bush for 6mm hardened steel shafts. Overal Diameter: 12mm Length: 19mm Inside diameter: 6mm Number of ball rows: 4 Dynamic Load Rating: 21kgf Staic Load: 27kgf
£0.74
-
Makertronics Makertronics Linear Bearing LM8UU 8mm Bushing
A linear slide bush for 8mm hardened steel shafts. Overal Diameter: 15mm Length: 24mm Inside diameter: 8mm
£0.70
-
Makertronics Makertronics Linear Bearing LM10UU 10mm Bushing
A linear slide bush for 10mm hardened steel shafts. Overal Diameter: 19mm Length: 29mm Inside diameter: 10mm
£1.20
-
Makertronics Makertronics Linear Bearing LM12UU 12mm Bushing
A linear slide bush for 12mm hardened steel shafts. Overal Diameter: 21mm Length: 30mm Inside diameter: 12mm
£1.20
-
Makertronics Makertronics Linear Bearing LM16UU 16mm Bushing
A linear slide bush for 12mm hardened steel shafts. Overal Diameter: 28mm Length: 37mm Inside diameter: 16mm
£1.91
-

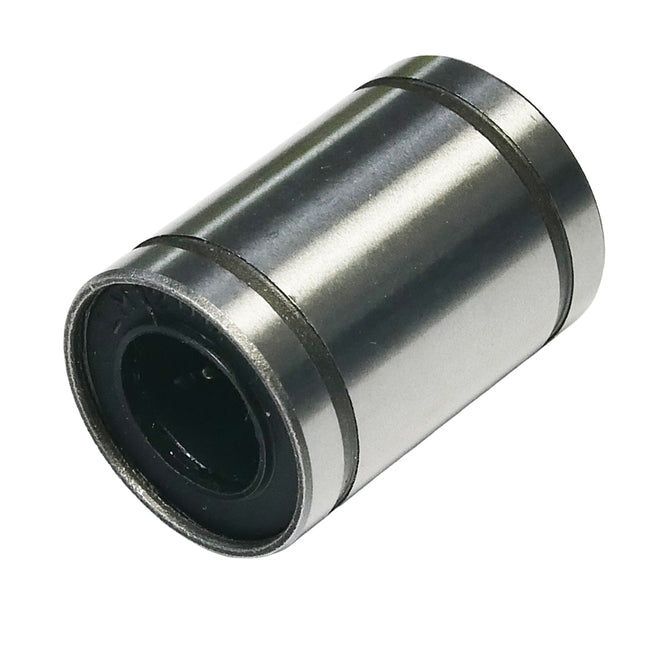

Makertronics Makertronics Linear Bearing LM20UU 20mm Bushing
A linear slide bush for 20mm hardened steel shafts. Overal Diameter: 32mm Length: 42mm Inside diameter: 20mm
£1.80
-
Makertronics Makertronics Linear Bearing LM6LUU 6mm Long Bushing
A longer version of our standard LM6UU linear slide bush for 6mm hardened steel shafts. Overal Diameter: 12mm Length: 35mm Inside diameter: 6mm Number of ball rows: 4 Dynamic Load Rating: 33kgf Staic Load: 54kgf
£1.43
-
Makertronics Makertronics Linear Bearing LM8LUU 8mm Long Bushing
A longer version of our standard LM8UU linear slide bush for 8mm hardened steel shafts. Overal Diameter: 15mm Length: 45mm Inside diameter: 8mm Number of ball rows: 4 Dynamic Load Rating: 44kgf Staic Load: 80kgf
£1.43
-
Makertronics Makertronics Linear Bearing LM10LUU 10mm Long Bushing
A longer version of our standard LM10UU linear slide bush for 10mm hardened steel shafts. Overal Diameter: 19mm Length: 55mm Inside diameter: 10mm Number of ball rows: 4 Dynamic Load Rating: 60kgf Staic Load: 112kgf
£1.56
-

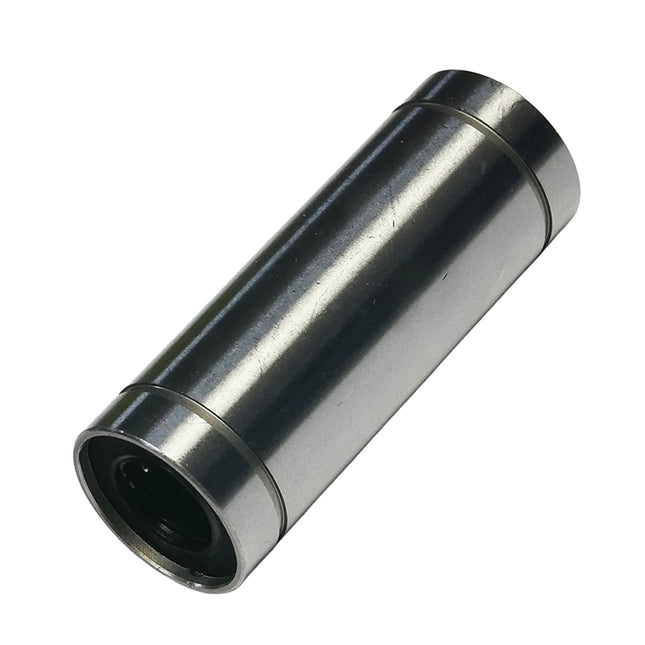

Makertronics Makertronics Linear Bearing LM12LUU 12mm Long Bushing
A longer version of our standard LM12UU linear slide bush for 12mm hardened steel shafts. Overal Diameter: 21mm Length: 57mm Inside diameter: 12mm Number of ball rows: 4 Dynamic Load Rating: 83kgf Staic Load: 160kgf
£1.87
-
Makertronics Makertronics Linear Bearing LMF6UU 6mm Flange Bushing
Like our standard LM6UU linear slide bush for 6mm hardened steel shafts but flange mounting. Bearing Diameter D: 12mm Flange Diameter D1: 32mm Overall Length L: 19mm Flange Width H: 5mm Flange Mounting Holes PCD: 20mm Inside diameter: 6mm Number of ball rows: 4
£2.25
-
Makertronics Makertronics Linear Bearing LMF8UU 8mm Flange Bushing
Like our standard LM8UU linear slide bush for 8mm hardened steel shafts but flange mounting. Bearing Diameter D: 15mm Flange Diameter D1: 32mm Overall Length L: 24mm Flange Width H: 5mm Flange Mounting Holes PCD: 24mm Inside diameter: 8mm Number of ball rows: 4
£2.29
-
Makertronics Makertronics Linear Bearing LMF10UU 10mm Flange Bushing
Like our standard LM10UU linear slide bush for 10mm hardened steel shafts but flange mounting. Bearing Diameter D: 19mm Flange Diameter D1: 40mm Overall Length L: 29mm Flange Width H: 6mm Flange Mounting Holes PCD: 29mm Inside diameter: 10mm Number of ball rows: 4
£2.84
-
Makertronics Makertronics Linear Bearing LMF12UU 12mm Flange Bushing
Like our standard LM12UU linear slide bush for 12mm hardened steel shafts but flange mounting. Bearing Diameter D: 21mm Flange Diameter D1: 42mm Overall Length L: 30mm Flange Width H: 6mm Flange Mounting Holes PCD: 32mm Inside diameter: 12mm Number of ball rows: 4
£3.01
-
Makertronics Makertronics Linear Bearing LMF16UU 16mm Flange Bushing
Like our standard LM16UU linear slide bush for 16mm hardened steel shafts but flange mounting. Bearing Diameter D: 28mm Flange Diameter D1: 48mm Overall Length L: 37mm Flange Width H: 6mm Flange Mounting Holes PCD: 38mm Inside diameter: 16mm Number of ball rows: 5
£3.35
-

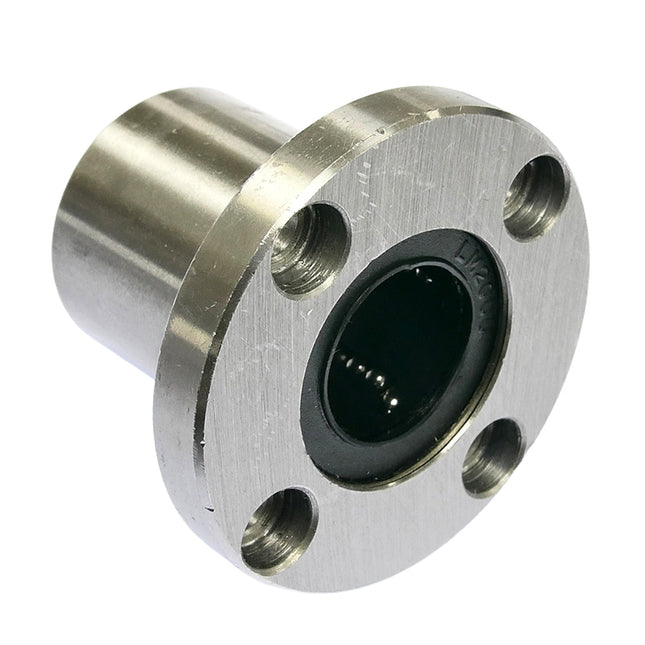

Makertronics Makertronics Linear Bearing LMF20UU 20mm Flange Bushing
Like our standard LM20UU linear slide bush for 20mm hardened steel shafts but flange mounting. Bearing Diameter D: 32mm Flange Diameter D1: 54mm Overall Length L: 42mm Flange Width H: 8mm Flange Mounting Holes PCD: 43mm Inside diameter: 20mm Number of ball rows: 5
£3.63
You have seen 25 out of 47 products
