Cast Bearings Blocks
-
UCF 202 15mm, 4-Bolt Square Flange Bearing (UCF/202)
Cast iron square flange bearing housing complete with steel bearing insertUCF 202 15mm, 4-Bolt Square Flange Bearing (UCF/202) Part Number 7910-001 Code UCF/202 UCF 202 Bore (mm) 15 l 86 r 64 v 15 e 11 t 25.5 F 12 m 33.3 A 31 w 12.7 Bearing No. UC202 Bolt size M10 Housing No. F202 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.48
-
UCF 203 17mm, 4-Bolt Square Flange Bearing (UCF/203)
Cast iron square flange bearing housing complete with steel bearing insertUCF 203 17mm, 4-Bolt Square Flange Bearing (UCF/203) Part Number 7910-002 Code UCF/203 UCF 203 Bore (mm) 17 l 86 r 64 v 15 e 11 t 25.5 F 12 m 33.3 A 31 w 12.7 Bearing No. UC203 Bolt size M10 Housing No. F203 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.14
-
UCF 204 20mm, 4-Bolt Square Flange Bearing (UCF/204)
Cast iron square flange bearing housing complete with steel bearing insertUCF 204 20mm, 4-Bolt Square Flange Bearing (UCF/204) Part Number 7910-003 Code UCF/204 UCF 204 Bore (mm) 20 l 86 r 64 v 15 e 11 t 25.5 F 12 m 33.3 A 31 w 12.7 Bearing No. UC204 Bolt size M10 Housing No. F204 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.48
-
UCF 205 25mm, 4-Bolt Square Flange Bearing (UCF/205)
Cast iron square flange bearing housing complete with steel bearing insertUCF 205 25mm, 4-Bolt Square Flange Bearing (UCF/205) Part Number 7910-004 Code UCF/205 UCF 205 Bore (mm) 25 l 95 r 70 v 16 e 13 t 27 F 12 m 35.7 A 34 w 14.3 Bearing No. UC205 Bolt size M10 Housing No. F205 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.82
-
UCF 206 30mm, 4-Bolt Square Flange Bearing (UCF/206)
Cast iron square flange bearing housing complete with steel bearing insertUCF 206 30mm, 4-Bolt Square Flange Bearing (UCF/206) Part Number 7910-005 Code UCF/206 UCF 206 Bore (mm) 30 l 108 r 83 v 18 e 13 t 31 F 12 m 40.2 A 38.1 w 15.9 Bearing No. UC206 Bolt size M10 Housing No. F206 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£11.04
-
UCF 207 35mm, 4-Bolt Square Flange Bearing (UCF/207)
Cast iron square flange bearing housing complete with steel bearing insertUCF 207 35mm, 4-Bolt Square Flange Bearing (UCF/207) Part Number 7910-006 Code UCF/207 UCF 207 Bore (mm) 35 l 117 r 92 v 19 e 15 t 34 F 14 m 44.4 A 42.9 w 17.5 Bearing No. UC207 Bolt size M12 Housing No. F207 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£14.26
-
UCF 208 40mm, 4-Bolt Square Flange Bearing (UCF/208)
Cast iron square flange bearing housing complete with steel bearing insertUCF 208 40mm, 4-Bolt Square Flange Bearing (UCF/208) Part Number 7910-007 Code UCF/208 UCF 208 Bore (mm) 40 l 130 r 102 v 21 e 15 t 36 F 16 m 51.2 A 49.2 w 19 Bearing No. UC208 Bolt size M14 Housing No. F208 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£17.54
-
UCF 209 45mm, 4-Bolt Square Flange Bearing (UCF/209)
Cast iron square flange bearing housing complete with steel bearing insertUCF 209 45mm, 4-Bolt Square Flange Bearing (UCF/209) Part Number 7910-008 Code UCF/209 UCF 209 Bore (mm) 45 l 137 r 105 v 22 e 16 t 38 F 16 m 52.2 A 49.2 w 19 Bearing No. UC209 Bolt size M14 Housing No. F209 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£21.00
-
UCF 210 50mm, 4-Bolt Square Flange Bearing (UCF/210)
Cast iron square flange bearing housing complete with steel bearing insertUCF 210 50mm, 4-Bolt Square Flange Bearing (UCF/210) Part Number 7910-009 Code UCF/210 UCF 210 Bore (mm) 50 l 143 r 111 v 22 e 16 t 40 F 16 m 54.6 A 51.6 w 19 Bearing No. UC210 Bolt size M14 Housing No. F210 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£24.06
-
UCF 211 55mm, 4-Bolt Square Flange Bearing (UCF/211)
Cast iron square flange bearing housing complete with steel bearing insertUCF 211 55mm, 4-Bolt Square Flange Bearing (UCF/211) Part Number 7910-010 Code UCF/211 UCF 211 Bore (mm) 55 l 162 r 130 v 25 e 18 t 43 F 19 m 58.4 A 55.6 w 22.2 Bearing No. UC211 Bolt size M16 Housing No. F211 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£29.04
-
UCF 212 60mm, 4-Bolt Square Flange Bearing (UCF/212)
Cast iron square flange bearing housing complete with steel bearing insertUCF 212 60mm, 4-Bolt Square Flange Bearing (UCF/212) Part Number 7910-011 Code UCF/212 UCF 212 Bore (mm) 60 l 175 r 143 v 29 e 18 t 48 F 19 m 68.7 A 65.1 w 25.4 Bearing No. UC212 Bolt size M16 Housing No. F212 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£37.20
-
UCF 213 65mm, 4-Bolt Square Flange Bearing (UCF/213)
Cast iron square flange bearing housing complete with steel bearing insertUCF 213 65mm, 4-Bolt Square Flange Bearing (UCF/213) Part Number 7910-012 Code UCF/213 UCF 213 Bore (mm) 65 l 187 r 149 v 30 e 22 t 50 F 19 m 69.7 A 65.1 w 25.4 Bearing No. UC213 Bolt size M16 Housing No. F213 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£62.68
-
UCF 214 70mm, 4-Bolt Square Flange Bearing (UCF/214)
Cast iron square flange bearing housing complete with steel bearing insertUCF 214 70mm, 4-Bolt Square Flange Bearing (UCF/214) Part Number 7910-013 Code UCF/214 UCF 214 Bore (mm) 70 l 193 r 152 v 31 e 22 t 54 F 19 m 75.4 A 74.6 w 30.2 Bearing No. UC214 Bolt size M16 Housing No. F214 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£72.44
-
UCF 215 75mm, 4-Bolt Square Flange Bearing (UCF/215)
Cast iron square flange bearing housing complete with steel bearing insertUCF 215 75mm, 4-Bolt Square Flange Bearing (UCF/215) Part Number 7910-014 Code UCF/215 UCF 215 Bore (mm) 75 l 200 r 159 v 34 e 22 t 56 F 19 m 78.5 A 77.8 w 33.3 Bearing No. UC215 Bolt size M16 Housing No. F215 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£80.78
-
UCF 216 80mm, 4-Bolt Square Flange Bearing (UCF/216)
Cast iron square flange bearing housing complete with steel bearing insertUCF 216 80mm, 4-Bolt Square Flange Bearing (UCF/216) Part Number 7910-015 Code UCF/216 UCF 216 Bore (mm) 80 l 208 r 165 v 34 e 22 t 58 F 23 m 83.3 A 82.6 w 33.3 Bearing No. UC216 Bolt size M20 Housing No. F216 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£98.46
-
UCF 217 85mm, 4-Bolt Square Flange Bearing (UCF/217)
Cast iron square flange bearing housing complete with steel bearing insertUCF 217 85mm, 4-Bolt Square Flange Bearing (UCF/217) Part Number 7910-016 Code UCF/217 UCF 217 Bore (mm) 85 l 220 r 175 v 36 e 24 t 63 F 23 m 87.6 A 85.7 w 34.1 Bearing No. UC217 Bolt size M20 Housing No. F217 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£184.62
-
UCF 218 90mm, 4-Bolt Square Flange Bearing (UCF/218)
Cast iron square flange bearing housing complete with steel bearing insertUCF 218 90mm, 4-Bolt Square Flange Bearing (UCF/218) Part Number 7910-017 Code UCF/218 UCF 218 Bore (mm) 90 l 235 r 187 v 40 e 24 t 68 F 23 m 96.3 A 96 w 39.7 Bearing No. UC218 Bolt size M20 Housing No. F218 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£208.33
-

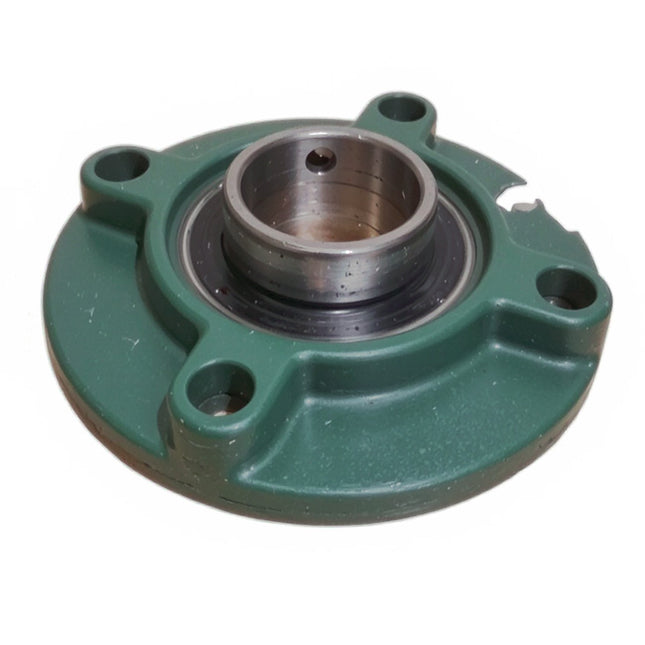

UCFC 202 15mm, 4-Bolt Round Flange Bearing (UCFC/202)
Round cast iron bearing housing complete with steel bearing insertUCFC 202 15mm, 4-Bolt Round Flange Bearing (UCFC/202) Part Number 7910-101 Code UCFC/202 UCFC 202 Bore (mm) 15 l 100 z 78 r 55.1 v 10 U 12 y 5 w 7 e 20.5 h 62 m 28.3 A 31 o 12.7 Bearing No. UC202 Bolt size M10 Housing No. FC202 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.48
-
UCFC 203 17mm, 4-Bolt Round Flange Bearing (UCFC/203)
Round cast iron bearing housing complete with steel bearing insertUCFC 203 17mm, 4-Bolt Round Flange Bearing (UCFC/203) Part Number 7910-102 Code UCFC/203 UCFC 203 Bore (mm) 17 l 100 z 78 r 55.1 v 10 U 12 y 5 w 7 e 20.5 h 62 m 28.3 A 31 o 12.7 Bearing No. UC203 Bolt size M10 Housing No. FC203 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.48
-
UCFC 204 20mm, 4-Bolt Round Flange Bearing (UCFC/204)
Round cast iron bearing housing complete with steel bearing insertUCFC 204 20mm, 4-Bolt Round Flange Bearing (UCFC/204) Part Number 7910-103 Code UCFC/204 UCFC 204 Bore (mm) 20 l 100 z 78 r 55.1 v 10 U 12 y 5 w 7 e 20.5 h 62 m 28.3 A 31 o 12.7 Bearing No. UC204 Bolt size M10 Housing No. FC204 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£10.53
-
UCFC 205 25mm, 4-Bolt Round Flange Bearing (UCFC/205)
Round cast iron bearing housing complete with steel bearing insertUCFC 205 25mm, 4-Bolt Round Flange Bearing (UCFC/205) Part Number 7910-104 Code UCFC/205 UCFC 205 Bore (mm) 25 l 115 z 90 r 63.6 v 10 U 12 y 6 w 7 e 21 h 70 m 29.7 A 34 o 14.3 Bearing No. UC205 Bolt size M10 Housing No. FC205 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£11.94
-
UCFC 206 30mm, 4-Bolt Round Flange Bearing (UCFC/206)
Round cast iron bearing housing complete with steel bearing insertUCFC 206 30mm, 4-Bolt Round Flange Bearing (UCFC/206) Part Number 7910-105 Code UCFC/206 UCFC 206 Bore (mm) 30 l 125 z 100 r 70.7 v 10 U 12 y 8 w 8 e 23 h 80 m 32.2 A 38.1 o 15.9 Bearing No. UC206 Bolt size M10 Housing No. FC206 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£15.21
-
UCFC 207 35mm, 4-Bolt Round Flange Bearing (UCFC/207)
Round cast iron bearing housing complete with steel bearing insertUCFC 207 35mm, 4-Bolt Round Flange Bearing (UCFC/207) Part Number 7910-106 Code UCFC/207 UCFC 207 Bore (mm) 35 l 135 z 110 r 77.8 v 11 U 14 y 8 w 9 e 26 h 90 m 36.4 A 42.9 o 17.5 Bearing No. UC207 Bolt size M12 Housing No. FC207 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£20.31
-
UCFC 208 40mm, 4-Bolt Round Flange Bearing (UCFC/208)
Round cast iron bearing housing complete with steel bearing insertUCFC 208 40mm, 4-Bolt Round Flange Bearing (UCFC/208) Part Number 7910-107 Code UCFC/208 UCFC 208 Bore (mm) 40 l 145 z 120 r 84.8 v 11 U 14 y 10 w 9 e 26 h 100 m 41.2 A 49.2 o 19 Bearing No. UC208 Bolt size M12 Housing No. FC208 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£25.71
-
UCFC 209 45mm, 4-Bolt Round Flange Bearing (UCFC/209)
Round cast iron bearing housing complete with steel bearing insertUCFC 209 45mm, 4-Bolt Round Flange Bearing (UCFC/209) Part Number 7910-108 Code UCFC/209 UCFC 209 Bore (mm) 45 l 160 z 132 r 93.3 v 10 U 16 y 12 w 14 e 26 h 105 m 40.2 A 49.2 o 19 Bearing No. UC209 Bolt size M14 Housing No. FC209 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£30.78
You have seen 25 out of 82 products
