Duplex Chain

Duplex Chain 05B 8mm / sold per metreSpecification:Pitch P: 8mmRoller diameter A: 5mmWidth between inner plates B: 3mmPin diameter C: 2.31mmPin Length D: 13.9mmInner plate height F: 7.1mmMinimum tensile strength: 7.8kNAverage tensile strength: 10.2kN

Read more less

Duplex Chain 06B 3/8" / sold per metreSpecification:Pitch P: 9.525mmRoller diameter A: 6.35mmWidth between inner plates B: 5.72mmPin diameter C: 3.28mmPin Length D: 23.4mmInner plate height F: 8.2mmMinimum tensile strength: 16.9kNAverage tensile strength: 18.7kN

Read more less

Duplex Chain 08B 1/2" / sold per metreSpecification:Pitch P: 12.7mmRoller diameter A: 8.51mmWidth between inner plates B: 7.75mmPin diameter C: 4.45mmPin Length D: 31.2mmInner plate height F: 11.8mmMinimum tensile strength: 32kNAverage tensile strength: 38.7kN

Read more less

Duplex Chain 10B-2 5/8" / sold per metreSpecification:Pitch P: 5/8"Roller diameter A: 10.16mmWidth between inner plates B: 9.65mmPin diameter C: 5.08mmPin Length D: 36.1mm Pin Length E: 37.5mmInner plate height F: 14.7mm Plate Thickness g/G: 1.7mm Transverse pitch H: 16.59mmMinimum tensile strength: 44.5kNAverage tensile strength: 56.2kN

Read more less

Duplex Chain 12B-2 3/4" / sold per metreSpecification:Pitch P: 3/4"Roller diameter A: 12.07mmWidth between inner plates B: 11.68mmPin diameter C: 5.72mmPin Length D: 42mm Pin Length E: 43.6mmInner plate height F: 16mm Plate Thickness g/G: 1.85mm Transverse pitch H: 19.46mmMinimum tensile strength: 57.8kNAverage tensile strength: 66.1kN

Read more less

Duplex Chain 16B-2 1" / sold per metreSpecification:Pitch P: 1"Roller diameter A: 15.88mmWidth between inner plates B: 17.02mmPin diameter C: 8.28mmPin Length D: 68mm Pin Length E: 69.3mmInner plate height F: 21mm Plate Thickness g/G: 4.15/3.1mm Transverse pitch H: 31.88mmMinimum tensile strength: 106kNAverage tensile strength: 133kN

Read more less

Duplex Chain 20B-2 1 1/4" / sold per metreSpecification:Pitch P: 1 1/4"Roller diameter A: 19.05mmWidth between inner plates B: 19.56mmPin diameter C: 10.19mmPin Length D: 77.8mm Pin Length E: 81.5mmInner plate height F: 26.4mm Plate Thickness g/G: 4.5/3.5mm Transverse pitch H: 36.45mmMinimum tensile strength: 170kNAverage tensile strength: 211.2kN

Read more less

Duplex Chain 24B-2 1 1/2" / sold per metreSpecification:Pitch P: 1 1/2"Roller diameter A: 25.4mmWidth between inner plates B: 25.4mmPin diameter C: 14.63mmPin Length D: 101.7mm Pin Length E: 106.2mmInner plate height F: 33.2mm Plate Thickness g/G: 6/4.8mm Transverse pitch H: 48.36mmMinimum tensile strength: 280kNAverage tensile strength: 319.2kN

Read more less

Duplex Chain 28B-2 1 3/4" / sold per metreSpecification:Pitch P: 1 3/4"Roller diameter A: 27.94mmWidth between inner plates B: 30.99mmPin diameter C: 15.9mmPin Length D: 124.6mm Pin Length E: 129.1mmInner plate height F: 36.7mm Plate Thickness g/G: 7.5/6mm Transverse pitch H: 59.56Minimum tensile strength: 360kNAverage tensile strength: 406.8kN

Read more less

Duplex Chain 32B-2 2" / sold per metreSpecification:Pitch P: 2"Roller diameter A: 29.21mmWidth between inner plates B: 30.99mmPin diameter C: 17.81mmPin Length D: 124.6mm Pin Length E: 129.6mmInner plate height F: 42mm Plate Thickness g/G: 7/6mm Transverse pitch H: 58.55mmMinimum tensile strength: 450kNAverage tensile strength: 508.5kN

Read more less

Duplex Chain 40B-2 2 1/2" / sold per metreSpecification:Pitch P: 2 1/2"Roller diameter A: 39.37mmWidth between inner plates B: 38.1mmPin diameter C: 22.89mmPin Length D: 154.5mm Pin Length E: 161.5mmInner plate height F: 52.96mm Plate Thickness g/G: 8.5/8mm Transverse pitch H: 72.29mmMinimum tensile strength: 630kNAverage tensile strength: 711.9kN

Read more less

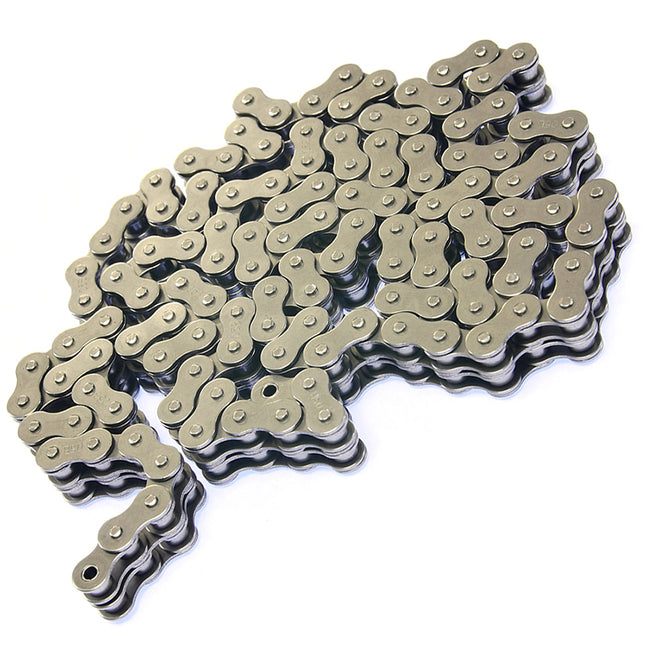

Duplex Chain 48B-2 3" / sold per metreSpecification:Pitch P: 3"Roller diameter A: 48.26mmWidth between inner plates B: 45.72mmPin diameter C: 29.24mmPin Length D: 190.4mm Pin Length E: 198.2mmInner plate height F: 63.8mm Plate Thickness g/G: 12/10mm Transverse pitch H: 91.21mmMinimum tensile strength: 1000kNAverage tensile strength: 1130kN

Read more less
