Miniature and industry standard size ball thrust bearings for axial load applications, across a wide size range.
Thrust Bearings
-
Miniature Thrust Ball Bearing F3-8M 3x8x3.5
3mm bore x 8mm overall diameter x 3.5mm thick, 600N rating, 15,000 rpm max, uses 6 off 1.588mm diameter steel balls.
£1.74
-
Miniature Thrust Ball Bearing F4-10M 4x10x4
4mm bore x 10mm overall diameter x 4mm thick, 658N rating, 10,000 rpm max, uses 6 off 1.588mm diameter steel balls.
£2.40
-
Miniature Thrust Ball Bearing F5-10M 5x10x4
5mm bore x 10mm overall diameter x 4mm thick, 950N rating, 8,100 rpm max, uses 7 off 1.588mm diameter steel balls.
£1.70
-
Miniature Thrust Ball Bearing F5-12M 5x12x4
5mm bore x 12mm overall diameter x 4mm thick, 988N rating, 8,000 rpm max, uses 7 off 1.588mm diameter steel balls.
£1.70
-
Miniature Thrust Ball Bearing F6-12M 6x12x4.5
6mm bore x 12mm overall diameter x 4.5mm thick, 1,600N rating, 7,000 rpm max, uses 8 off 2mm diameter steel balls.
£2.40
-
Miniature Thrust Ball Bearing F6-14M 6x14x5
6mm bore x 14mm overall diameter x 5mm thick, 1,800N rating, 7,000 rpm max, uses 8 off 2.381mm diameter steel balls.
£1.70
-
Miniature Thrust Ball Bearing F7-15M 7x15x5
7mm bore x 15mm overall diameter x 5mm thick, 2,200N rating, 7,100 rpm max, uses 8 off 2.5mm diameter steel balls.
£1.44
-
Miniature Thrust Ball Bearing F8-16M 8x16x5
8mm bore x 16mm overall diameter x 5mm thick, 2,500N rating, 8,000 rpm max, uses 9 off 3mm diameter steel balls.
£2.40
-
Miniature Thrust Ball Bearing F9-20M 9x20x7
9mm bore x 20mm overall diameter x 7mm thick, 3,356N rating, 4,500 rpm max, uses 8 off 3.175mm diameter steel balls.
£1.62
-

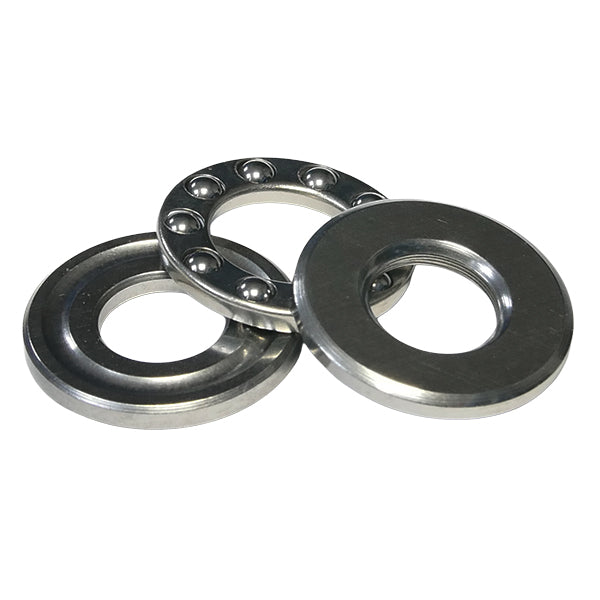

Miniature Thrust Ball Bearing F10-18M 10x18x5.5
10mm bore x 18mm overall diameter x 5.5mm thick, 2,230N rating, 4,500 rpm max, uses 10 off 2.381mm diameter steel balls.
£2.40
-
Dunlop 51100 Thrust Bearing 10x24x9mm
An industry standard thrust bearing for axial loads in a single direction only. Code: 51100 Bore: 10mm OD: 24mm Height: 9mm
£2.55
-
Dunlop 51101 Thrust Bearing 12x26x9mm
An industry standard thrust bearing for axial loads in a single direction only. Code: 51101 Bore: 12mm OD: 26mm Height: 9mm
£2.65
-
Dunlop 51102 Thust Bearing 15x28x9mm
An industry standard thrust bearing for axial loads in a single direction only. Code: 51102 Bore: 15mm OD: 32mm Height: 12mm
£3.00
-
Dunlop 51103 Thrust Bearing 17x30x9mm
An industry standard thrust bearing for axial loads in a single direction only. Code: 51103 Bore: 17mm OD: 30mm Height: 9mm
£3.90
-
Dunlop 51104 Thrust Bearing 20x35x10mm
An industry standard thrust bearing for axial loads in a single direction only. Code: 51104 Bore: 20mm OD: 35mm Height: 10mm
£4.05
-
Dunlop 51105 Thrust Bearing 25x42x11mm
An industry standard thrust bearing for axial loads in a single direction only. Code: 51105 Bore: 25mm OD: 42mm Height: 11mm
£4.60
-

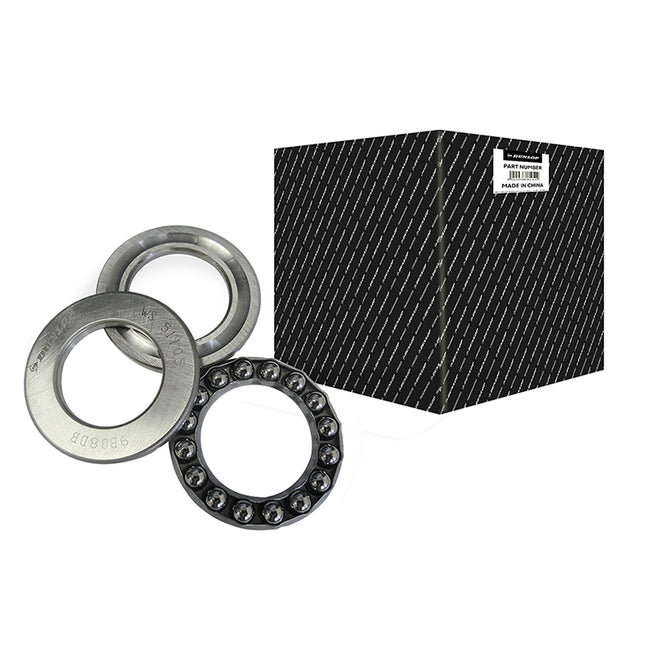

Dunlop 51106 Thrust Bearing 30x47x11mm
An industry standard thrust bearing for axial loads in a single direction only. Code: 51106 Bore: 30mm OD: 47mm Height: 11mm
£5.45
