Metric Spur Gears
-

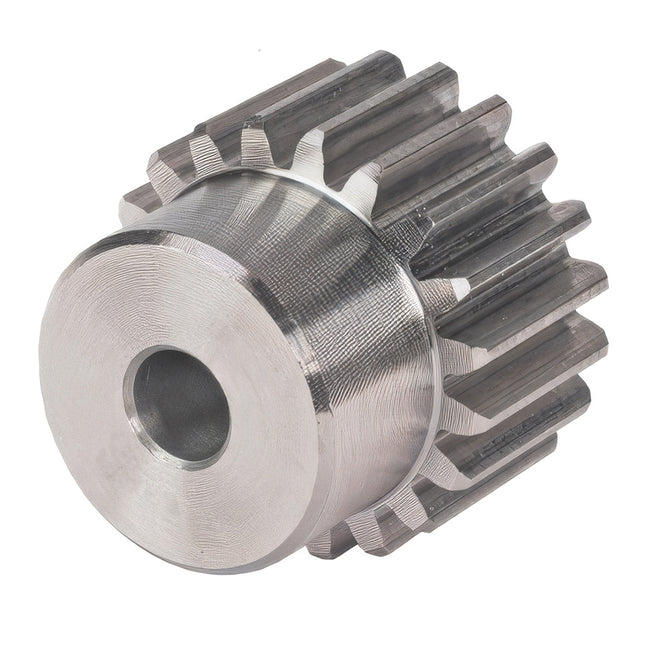

Steel Spur Gear MOD 1.0 12 Tooth (SS10/12B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 12 Tooth. Part No. 4710-012 Code SS10/12B Type B No. of Teeth 12 Pitch Ø dp 12 Bore Ø H8 0 or 5mm* Hub/Boss Ø dm 9 Outside Ø de 14 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur *Normally supplied with no bore but can have a pre-bore of 5mm depending on availability.
£3.93
-
Steel Spur Gear MOD 1.0 13 Tooth (SS10/13B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 13 Tooth Part No. 4710-013 Code SS10/13B Type B No. of Teeth 13 Pitch Ø dp 13 Bore Ø H8 5 Hub/Boss Ø dm 10 Outside Ø de 15 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.93
-
Steel Spur Gear MOD 1.0 14 Tooth (SS10/14B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 14 Tooth Part No. 4710-014 Code SS10/14B Type B No. of Teeth 14 Pitch Ø dp 14 Bore Ø H8 0* Hub/Boss Ø dm 10 Outside Ø de 16 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur *Normally supplied with no bore but may have a pre-bore of 5mm depending on availability.
£4.12
-
Steel Spur Gear MOD 1.0 15 Tooth (SS10/15B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 15 Tooth Part No. 4710-015 Code SS10/15B Type B No. of Teeth 15 Pitch Ø dp 15 Bore Ø H8 0 Hub/Boss Ø dm 12 Outside Ø de 17 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.15
-
Steel Spur Gear MOD 1.0 16 Tooth (SS10/16B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 16 Tooth Part No. 4710-016 Code SS10/16B Type B No. of Teeth 16 Pitch Ø dp 16 Bore Ø H8 0* Hub/Boss Ø dm 13 Outside Ø de 18 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur *Some stock may have a 6mm bore instead
£5.13
-
Steel Spur Gear MOD 1.0 17 Tooth (SS10/17B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 17 Tooth Part No. 4710-017 Code SS10/17B Type B No. of Teeth 17 Pitch Ø dp 17 Bore Ø H8 8 Hub/Boss Ø dm 14 Outside Ø de 19 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur *Some stock may have a 6mm bore instead
£5.24
-
Steel Spur Gear MOD 1.0 18 Tooth (SS10/18B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 18 Tooth Part No. 4710-018 Code SS10/18B Type B No. of Teeth 18 Pitch Ø dp 18 Bore Ø H8 8 Hub/Boss Ø dm 15 Outside Ø de 20 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.74
-
Steel Spur Gear MOD 1.0 19 Tooth (SS10/19B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 19 Tooth Part No. 4710-019 Code SS10/19B Type B No. of Teeth 19 Pitch Ø dp 19 Bore Ø H8 8 Hub/Boss Ø dm 15 Outside Ø de 21 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.03
-
Steel Spur Gear MOD 1.0 20 Tooth (SS10/20B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 20 Tooth Part No. 4710-020 Code SS10/20B Type B No. of Teeth 20 Pitch Ø dp 20 Bore Ø H8 8 Hub/Boss Ø dm 16 Outside Ø de 22 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.09
-
Steel Spur Gear MOD 1.0 25 Tooth (SS10/25B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 25 Tooth Part No. 4710-025 Code SS10/25B Type B No. of Teeth 25 Pitch Ø dp 25 Bore Ø H8 8 Hub/Boss Ø dm 20 Outside Ø de 27 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.78
-
Steel Spur Gear MOD 1.0 30 Tooth (SS10/30B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 30 Tooth Part No. 4710-030 Code SS10/30B Type B No. of Teeth 30 Pitch Ø dp 30 Bore Ø H8 8 Hub/Boss Ø dm 20 Outside Ø de 32 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.99
-
Steel Spur Gear MOD 1.0 40 Tooth (SS10/40B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 40 Tooth Part No. 4710-040 Code SS10/40B Type B No. of Teeth 40 Pitch Ø dp 40 Bore Ø H8 10 Hub/Boss Ø dm 25 Outside Ø de 42 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.82
-
Steel Spur Gear MOD 1.0 50 Tooth (SS10/50B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 50 Tooth Part No. 4710-050 Code SS10/50B Type B No. of Teeth 50 Pitch Ø dp 50 Bore Ø H8 12 Hub/Boss Ø dm 30 Outside Ø de 52 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.44
-
Steel Spur Gear MOD 1.0 60 Tooth (SS10/60B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.0 60 Tooth Part No. 4710-060 Code SS10/60B Type B No. of Teeth 60 Pitch Ø dp 60 Bore Ø H8 12 Hub/Boss Ø dm 40 Outside Ø de 62 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£11.74
-
Steel Spur Gear MOD 1.5 12 Tooth (SS15/12B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 12 Tooth Part No. 4715-012 Code SS15/12B Type B No. of Teeth 12 Pitch Ø dp 18 Bore Ø H8 8 Hub/Boss Ø dm 14 Outside Ø de 21 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.42
-
Steel Spur Gear MOD 1.5 13 Tooth (SS15/13B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 13 Tooth Part No. 4715-013 Code SS15/13B Type B No. of Teeth 13 Pitch Ø dp 19.5 Bore Ø H8 8 Hub/Boss Ø dm 14/15 Outside Ø de 22.5 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.49
-
Steel Spur Gear MOD 1.5 14 Tooth (SS15/14B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 14 Tooth Part No. 4715-014 Code SS15/14B Type B No. of Teeth 14 Pitch Ø dp 21 Bore Ø H8 8 Hub/Boss Ø dm 17/18 Outside Ø de 24 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.50
-
Steel Spur Gear MOD 1.5 15 Tooth (SS15/15B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 15 Tooth Part No. 4715-015 Code SS15/15B Type B No. of Teeth 15 Pitch Ø dp 22.5 Bore Ø H8 8 Hub/Boss Ø dm 18 Outside Ø de 25.5 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.06
-
Steel Spur Gear MOD 1.5 16 Tooth (SS15/16B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 16 Tooth Part No. 4715-016 Code SS15/16B Type B No. of Teeth 16 Pitch Ø dp 24 Bore Ø H8 8 Hub/Boss Ø dm 19/20 Outside Ø de 27 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.17
-
Steel Spur Gear MOD 1.5 18 Tooth (SS15/18B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 18 Tooth Part No. 4715-018 Code SS15/18B Type B No. of Teeth 18 Pitch Ø dp 27 Bore Ø H8 8 Hub/Boss Ø dm 20 Outside Ø de 30 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.45
-
Steel Spur Gear MOD 1.5 20 Tooth (SS15/20B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 20 Tooth Part No. 4715-020 Code SS15/20B Type B No. of Teeth 20 Pitch Ø dp 30 Bore Ø H8 8 Hub/Boss Ø dm 25 Outside Ø de 33 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.85
-
Steel Spur Gear MOD 1.5 25 Tooth (SS15/25B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 25 Tooth Part No. 4715-025 Code SS15/25B Type B No. of Teeth 25 Pitch Ø dp 37.5 Bore Ø H8 10 Hub/Boss Ø dm 25 Outside Ø de 40.5 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.96
-
Steel Spur Gear MOD 1.5 30 Tooth (SS15/30B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 30 Tooth Part No. 4715-030 Code SS15/30B Type B No. of Teeth 30 Pitch Ø dp 45 Bore Ø H8 12 Hub/Boss Ø dm 30 Outside Ø de 48 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.42
-
Steel Spur Gear MOD 1.5 40 Tooth (SS15/40B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 1.5 40 Tooth Part No. 4715-040 Code SS15/40B Type B No. of Teeth 40 Pitch Ø dp 60 Bore Ø H8 12 Hub/Boss Ø dm 40 Outside Ø de 63 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.01
-
Steel Spur Gear MOD 1.5 50 Tooth (SS15/50B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentTbot Steel Spur Gear MOD 1.5 50 Tooth Part No. 4715-050 Code SS15/50B Type B No. of Teeth 50 Pitch Ø dp 75 Bore Ø H8 14 Hub/Boss Ø dm 50 Outside Ø de 78 O/A Width A 30 Face Width B 17 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£15.24
