Metric T and AT pitch timing pulleys with pilot bore fitting, across a wide tooth range.
Metric Pilot Bore Timing Pulleys
-

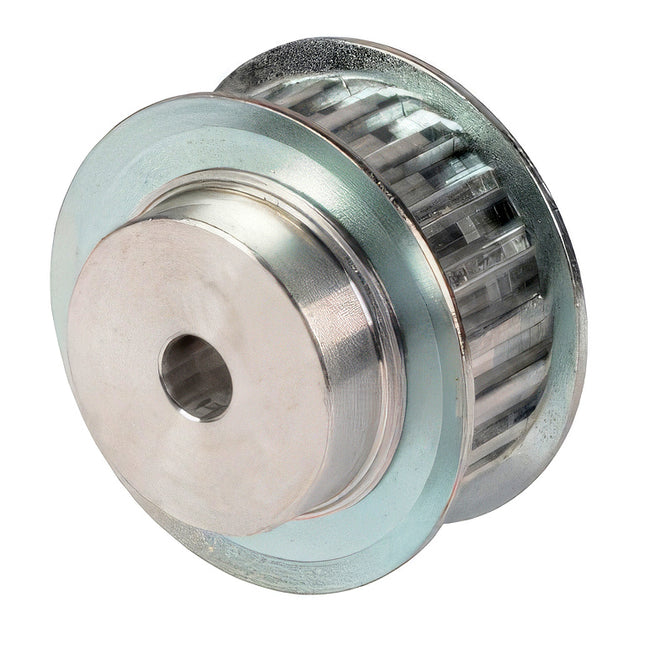

Timing Pulley T2.5x6mm 10T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 10T Part No. 4620-110 Code 16T2.5/10-2 Type 0F No. teeth 10 De 7.45 Dp 7.96 Df 13 Dm 13 F 9 L 16 Bore (d) 0 Max. bore 3 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.30
-
Timing Pulley T2.5x6mm 12T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 12T Part No. 4620-112 Code 16T2.5/12-2 Type 0F No. teeth 12 De 9 Dp 9.55 Df 13 Dm 13 F 9 L 16 Bore (d) 0 Max. bore 3 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.17
-
Timing Pulley T2.5x6mm 14T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 14T Part No. 4620-114 Code 16T2.5/14-2 Type 0F No. teeth 14 De 10.6 Dp 11.1 Df 15 Dm 15 F 9 L 16 Bore (d) 0 Max. bore 4 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.38
-
Timing Pulley T2.5x6mm 15T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 15T Part No. 4620-115 Code 16T2.5/15-2 Type 0F No. teeth 15 De 11.4 Dp 11.9 Df 15 Dm 15 F 9 L 16 Bore (d) 0 Max. bore 5 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.63
-
Timing Pulley T2.5x6mm 16T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 16T Part No. 4620-116 Code 16T2.5/16-2 Type 0F No. teeth 16 De 12.2 Dp 12.7 Df 16 Dm 16 F 9 L 16 Bore (d) 0 Max. bore 6 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.77
-
Timing Pulley T2.5x6mm 18T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 18T Part No. 4620-118 Code 16T2.5/18-2 Type 1F No. teeth 18 De 13.8 Dp 14.3 Df 18 Dm 10 F 10 L 16 Bore (d) 0 Max. bore 7 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.68
-
Timing Pulley T2.5x6mm 19T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 19T Part No. 4620-119 Code 16T2.5/19-2 Type 1F No. teeth 19 De 14.6 Dp 15.1 Df 20 Dm 10 F 10 L 16 Bore (d) 0 Max. bore 8 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.75
-
Timing Pulley T2.5x6mm 20T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 20T Part No. 4620-120 Code 16T2.5/20-2 Type 1F No. teeth 20 De 15.4 Dp 15.9 Df 20 Dm 11 F 10 L 16 Bore (d) 0 Max. bore 9 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.78
-
Timing Pulley T2.5x6mm 22T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 22T Part No. 4620-122 Code 16T2.5/22-2 Type 1F No. teeth 22 De 17 Dp 17.5 Df 22 Dm 11 F 10 L 16 Bore (d) 0 Max. bore 10 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.77
-
Timing Pulley T2.5x6mm 24T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 24T Part No. 4620-124 Code 16T2.5/24-2 Type 1F No. teeth 24 De 18.6 Dp 19.1 Df 22 Dm 12 F 10 L 16 Bore (d) 0 Max. bore 11 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.80
-
Timing Pulley T2.5x6mm 25T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 25T Part No. 4620-125 Code 16T2.5/25-2 Type 1F No. teeth 25 De 19.4 Dp 19.9 Df 25 Dm 13 F 10 L 16 Bore (d) 0 Max. bore 12 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.83
-
Timing Pulley T2.5x6mm 26T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 26T Part No. 4620-126 Code 16T2.5/26-2 Type 1F No. teeth 26 De 20.2 Dp 20.7 Df 26 Dm 14 F 10 L 16 Bore (d) 0 Max. bore 13 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.93
-
Timing Pulley T2.5x6mm 28T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 28T Part No. 4620-128 Code 16T2.5/28-2 Type 1F No. teeth 28 De 21.8 Dp 22.3 Df 26 Dm 14 F 10 L 16 Bore (d) 0 Max. bore 33 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.93
-
Timing Pulley T2.5x6mm 30T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 30T Part No. 4620-130 Code 16T2.5/30-2 Type 1F No. teeth 30 De 23.4 Dp 23.9 Df 26 Dm 16 F 10 L 16 Bore (d) 0 Max. bore 15 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.19
-
Timing Pulley T2.5x6mm 32T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 32T Part No. 4620-132 Code 16T2.5/32-2 Type 1F No. teeth 32 De 25 Dp 25.5 Df 32 Dm 16 F 10 L 16 Bore (d) 0* Max. bore 16 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur *Some stock may have a 6mm bore
£4.19
-
Timing Pulley T2.5x6mm 36T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 36T Part No. 4620-136 Code 16T2.5/36-2 Type 1F No. teeth 36 De 28.1 Dp 28.7 Df 36 Dm 20 F 10 L 16 Bore (d) 0 Max. bore 20 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.25
-
Timing Pulley T2.5x6mm 40T
T2.5 Pilot bore aluminium pulley with zinc plated flanges to suit 6mm wide T2.5 timing belt. Timing Pulley T2.5x6mm 40T Part No. 4620-140 Code 16T2.5/40-2 Type 1F No. teeth 40 De 31.3 Dp 31.8 Df 38 Dm 22 F 10 L 16 Bore (d) 0 Max. bore 23 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.56
-
Timing Pulley T5x10mm 10T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 10T Part No. 4621-110 Code 21T5/10-2 Type 1F No. teeth 10 De 15.1 Dp 15.9 Df 20 Dm 8 F 15 L 21 Bore (d) None Max. bore 6 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.27
-
Timing Pulley T5x10mm 12T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 12T Part No. 4621-112 Code 21T5/12-2 Type 1F No. teeth 12 De 18.3 Dp 19.1 Df 23 Dm 11 F 15 L 21 Bore (d) 0 Max. bore 6 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.48
-
Timing Pulley T5x10mm 14T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 14T Part No. 4621-114 Code 21T5/14-2 Type 1F No. teeth 14 De 21.5 Dp 22.3 Df 25 Dm 13 F 15 L 21 Bore (d) None Max. bore 8 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.79
-
Timing Pulley T5x10mm 15T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 15T Part No. 4621-115 Code 21T5/15-2 Type 1F No. teeth 15 De 23.1 Dp 23.9 Df 28 Dm 16 F 15 L 21 Bore (d) No bore Max. bore 10 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur *Some stock may have a 6mm bore
£4.05
-
Timing Pulley T5x10mm 16T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 16T Part No. 4621-116 Code 21T5/16-2 Type 1F No. teeth 16 De 24.6 Dp 25.5 Df 32 Dm 18 F 15 L 21 Bore (d) 6 Max. bore 12 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.19
-
Timing Pulley T5x10mm 18T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 18T Part No. 4621-118 Code 21T5/18-2 Type 1F No. teeth 18 De 27.8 Dp 28.7 Df 32 Dm 20 F 15 L 21 Bore (d) 0 Max. bore 16 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.29
-
Timing Pulley T5x10mm 20T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 20T Part No. 4621-120 Code 21T5/20-2 Type 1F No. teeth 20 De 31 Dp 31.8 Df 36 Dm 23 F 15 L 21 Bore (d) 0 Max. bore 18 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.68
-
Timing Pulley T5x10mm 22T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 22T Part No. 4621-122 Code 21T5/22-2 Type 1F No. teeth 22 De 34.2 Dp 35 Df 38 Dm 24 F 15 L 21 Bore (d) 6 Max. bore 22 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.56
You have seen 25 out of 292 products
