Metric T and AT pitch timing pulleys with pilot bore fitting, across a wide tooth range.
Metric Pilot Bore Timing Pulleys
-
Timing Pulley T5x10mm 24T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 24T Part No. 4621-124 Code 21T5/24-2 Type 1F No. teeth 24 De 37.4 Dp 38 Df 42 Dm 26 F 15 L 21 Bore (d) 0 Max. bore 24 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.68
-
Timing Pulley T5x10mm 25T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 25T Part No. 4621-125 Code 21T5/25-2 Type 1F No. teeth 25 De 39 Dp 39.8 Df 44 Dm 26 F 15 L 21 Bore (d) 6 Max. bore 25 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.78
-
Timing Pulley T5x10mm 26T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 26T Part No. 4621-126 Code 21T5/26-2 Type 1F No. teeth 26 De 40.6 Dp 41.4 Df 44 Dm 26 F 15 L 21 Bore (d) 0* Max. bore 25 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur *Some stock may have a 6mm bore
£5.77
-
Timing Pulley T5x10mm 27T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 27T Part No. 4621-127 Code 21T5/27-2 Type 1F No. teeth 27 De 42.2 Dp 43 Df 48 Dm 30 F 15 L 21 Bore (d) 8 Max. bore 27 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.79
-
Timing Pulley T5x10mm 28T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 28T Part No. 4621-128 Code 21T5/28-2 Type 1F No. teeth 28 De 43.8 Dp 44.6 Df 48 Dm 32 F 15 L 21 Bore (d) 8* Max. bore 29 No. flanges 2 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur.*Some stock may have no bore
£5.93
-
Timing Pulley T5x10mm 30T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 30T Part No. 4621-130 Code 21T5/30-2 Type 1F No. teeth 30 De 47 Dp 47.8 Df 51 Dm 34 F 15 L 21 Bore (d) 8 Max. bore 33 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.04
-
Timing Pulley T5x10mm 32T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 32T Part No. 4621-132 Code 21T5/32-2 Type 1F No. teeth 32 De 50.1 Dp 50.9 Df 54 Dm 38 F 15 L 21 Bore (d) 8 Max. bore 37 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.97
-
Timing Pulley T5x10mm 36T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 36T Part No. 4621-136 Code 21T5/36-2 Type 1F No. teeth 36 De 56.5 Dp 57.3 Df 64 Dm 38 F 15 L 21 Bore (d) 8 Max. bore 42 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.83
-
Timing Pulley T5x10mm 40T
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 40T Part No. 4621-140 Code 21T5/40-2 Type 1F No. teeth 40 De 62.9 Dp 63.7 Df 67 Dm 40 F 15 L 21 Bore (d) 8 Max. bore 47 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.76
-
Aluminium Pulley T2.5/44-0 For 6mm Belt (16T2.5/44-2)
Timing Pulleys T2.5 for 6mm wide belt. Centre drilled or Pilot Bore in aluminium without flanges.Aluminium Pulley T2.5/44-0 For 6mm Belt (16T2.5/44-2) Part No. 7802-018 Code 16T2.5/44-0 Type 2 No. teeth 44 De 34.5 Dp 35 Df 42 Dm 24 F 10 L 16 Bore (d) 0 Max. bore 25 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.20
-
Aluminium Pulley T2.5/48-0 For 6mm Belt (16T2.5/48-0)
Timing Pulleys T2.5 for 6mm wide belt. Centre drilled or Pilot Bore in aluminium.Aluminium Pulley T2.5/48-0 For 6mm Belt (16T2.5/48-0) Part No. 7802-019 Code 16T2.5/48-0 Type 2 No. teeth 48 De 37.7 Dp 38.2 Df Dm 26 F 10 L 16 Bore (d) 6 Max. bore 27 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.22
-

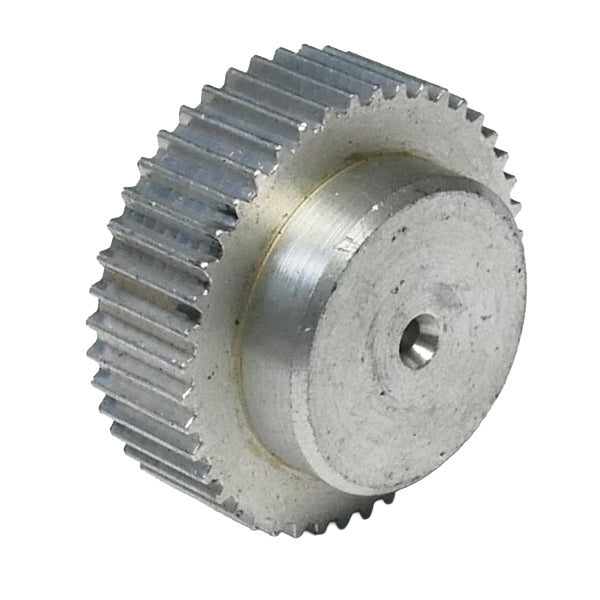

Aluminium Pulley T2.5/60-0 For 6mm Belt (16T2.5/60-0)
Timing Pulleys T2.5 for 6mm wide belt. Centre drilled or Pilot Bore in aluminium.Aluminium Pulley T2.5/60-0 For 6mm Belt (16T2.5/60-0) Part No. 7802-020 Code 16T2.5/60-0 Type 2 No. teeth 60 De 47.3 Dp 47.8 Df Dm 34 F 10 L 16 Bore (d) 8 Max. bore 35 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.99
-
Aluminium Pulley T5/19-2 For 10mm Belt (21T5/19-2)
T5 Pilot bore aluminium pulley with zinc plated flanges to suit 10mm wide T5 timing belt. Timing Pulley T5x10mm 19T Part No. 4621-119 Code 21T5/19-2 Type 1F No. teeth 19 De 29.4 Dp 30.2 Df 36 Dm 22 F 15 L 21 Bore (d) 6 Max. bore 16 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.43
-
Aluminium Pulley T5/42-2 For 10mm Belt (21T5/42-2)
Timing Pulleys T5 for 10mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/42-2 For 10mm Belt (21T5/42-2) Part No. 7802-119 Code 21T5/42-2 Type 1F No. teeth 42 De 66 Dp 66.9 Df 70 Dm 40 F 15 L 21 Bore (d) 8 Max. bore 50 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.40
-
Aluminium Pulley T5/44-0 For 10mm Belt (21T5/44-0)
Timing Pulleys T5 for 10mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/44-0 For 10mm Belt (21T5/44-0) Part No. 7802-120 Code 21T5/44-0 Type 2 No. teeth 44 De 69.2 Dp 70 Df Dm 45 F 15 L 21 Bore (d) 8 Max. bore 52 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.94
-
Aluminium Pulley T5/48-0 For 10mm Belt (21T5/48-0)
Timing Pulleys T5 for 10mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/48-0 For 10mm Belt (21T5/48-0) Part No. 7802-121 Code 21T5/48-0 Type 2 No. teeth 48 De 75.6 Dp 76.4 Df Dm 50 F 15 L 21 Bore (d) 8 Max. bore 60 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£10.38
-
Aluminium Pulley T5/60-0 For 10mm Belt (21T5/60-0)
Timing Pulleys T5 for 10mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/60-0 For 10mm Belt (21T5/60-0) Part No. 7802-122 Code 21T5/60-0 Type 2 No. teeth 60 De 94.7 Dp 95.5 Df Dm 65 F 15 L 21 Bore (d) 8 Max. bore 76 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£15.58
-
Aluminium Pulley T5/10-2 For 16mm Belt (27T5/10-2)
Timing Pulleys T5 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/10-2 For 16mm Belt (27T5/10-2) Part No. 7802-123 Code 27T5/10-2 Type 1F No. teeth 10 De 15.1 Dp 15.9 Df 20 Dm 8 F 21 L 27 Bore (d) Max. bore 6 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.51
-
Aluminium Pulley T5/12-2 For 16mm Belt (27T5/12-2)
Timing Pulleys T5 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/12-2 For 16mm Belt (27T5/12-2) Part No. 7802-124 Code 27T5/12-2 Type 1F No. teeth 12 De 18.3 Dp 19.1 Df 23 Dm 11 F 21 L 27 Bore (d) Max. bore 6 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.50
-
Aluminium Pulley T5/14-2 For 16mm Belt (27T5/14-2)
Timing Pulleys T5 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/14-2 For 16mm Belt (27T5/14-2) Part No. 7802-125 Code 27T5/14-2 Type 1F No. teeth 14 De 21.5 Dp 22.3 Df 25 Dm 13 F 21 L 27 Bore (d) Max. bore 8 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.17
-
Aluminium Pulley T5/15-2 For 16mm Belt (27T5/15-2)
Timing Pulleys T5 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/15-2 For 16mm Belt (27T5/15-2) Part No. 7802-126 Code 27T5/15-2 Type 1F No. teeth 15 De 23.1 Dp 23.9 Df 28 Dm 16 F 21 L 27 Bore (d) 6 Max. bore 10 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.83
-
Aluminium Pulley T5/16-2 For 16mm Belt (27T5/16-2)
Timing Pulleys T5 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/16-2 For 16mm Belt (27T5/16-2) Part No. 7802-127 Code 27T5/16-2 Type 1F No. teeth 16 De 24.6 Dp 25.5 Df 32 Dm 18 F 21 L 27 Bore (d) 6 Max. bore 12 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.07
-
Aluminium Pulley T5/18-2 For 16mm Belt (27T5/18-2)
Timing Pulleys T5 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/18-2 For 16mm Belt (27T5/18-2) Part No. 7802-128 Code 27T5/18-2 Type 1F No. teeth 18 De 27.8 Dp 28.7 Df 32 Dm 20 F 21 L 27 Bore (d) 6 Max. bore 16 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.22
-
Aluminium Pulley T5/19-2 For 16mm Belt (27T5/19-2)
Timing Pulleys T5 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/19-2 For 16mm Belt (27T5/19-2) Part No. 7802-129 Code 27T5/19-2 Type 1F No. teeth 19 De 29.4 Dp 30.2 Df 36 Dm 22 F 21 L 27 Bore (d) 6 Max. bore 16 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.58
-
Aluminium Pulley T5/20-2 For 16mm Belt (27T5/20-2)
Timing Pulleys T5 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T5/20-2 For 16mm Belt (27T5/20-2) Part No. 7802-130 Code 27T5/20-2 Type 1F No. teeth 20 De 31 Dp 31.8 Df 36 Dm 23 F 21 L 27 Bore (d) 6 Max. bore 18 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.82
You have seen 50 out of 292 products
