Miniature male and female thread rod end bearings for linkages and actuators.
Rod End Bearings
-
Miniature Rod End Bearing M3 Male
Self aligning rod end bearing with M3 threaded mount.Bearing bore: 3mmBearing width: 6mmThread M3 x 19mm longHead diameter: 12mm
£1.74
-
Miniature Rod End Bearing M3 Female
Self aligning rod end bearing with M3 tapped mount.Bearing bore: 3mmBearing width: 6mmTapped thread M3Head diameter: 12mmOverall length: 28mm
£1.61
-

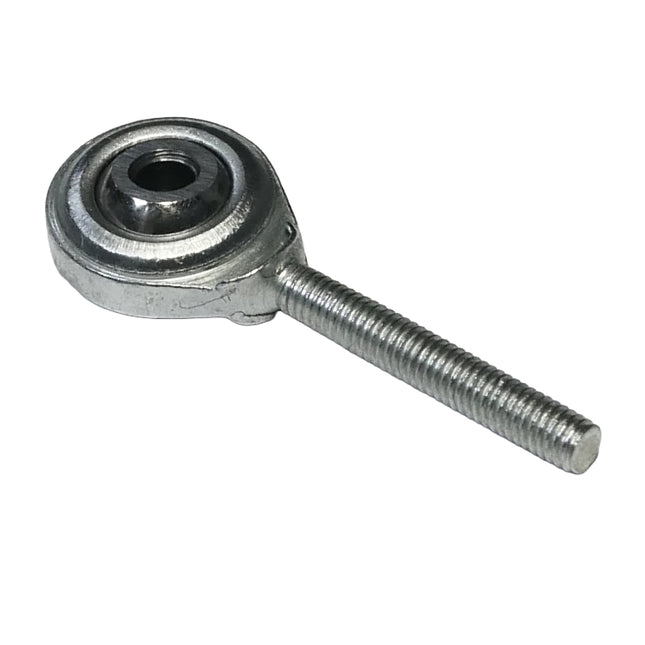

Miniature Rod End Bearing M4 Male
Self aligning rod end bearing with M4 threaded mount.Bearing bore: 4mmBearing width: 7mmThread M4 x 20mm longHead diameter: 14mm
£1.74
-
Miniature Rod End Bearing M4 Female
Self aligning rod end bearing with M4 tapped mount.Bearing bore: 4mmBearing width: 7mmTapped thread M4Head diameter: 14mmOverall length: 32mm
£1.61
-
Rod End Bearing M5 Female
Self aligning rod end bearing with M5 tapped mount.Bearing bore: 5mmBearing width: 8mmTapped thread M5Head diameter: 18mmOverall length: 36mm
£1.72
-
Rod End Bearing M6 Female
Self aligning rod end bearing with M6 tapped mount.Bearing bore: 6mmBearing width: 9mmTapped thread M6Head diameter: 20mmOverall length: 41mm
£1.98
-
Rod End Bearing M8 Female
Self aligning rod end bearing with M8 tapped mount.Bearing bore: 8mmBearing width: 12mmTapped thread M8Head diameter: 24mmOverall length: 50mm
£2.23
-
Rod End Bearing M10 Female
Self aligning rod end bearing with M10 tapped mount.Bearing bore: 10mmBearing width: 14mmTapped thread M10Head diameter: 28mmOverall length: 59mm
£2.80
-

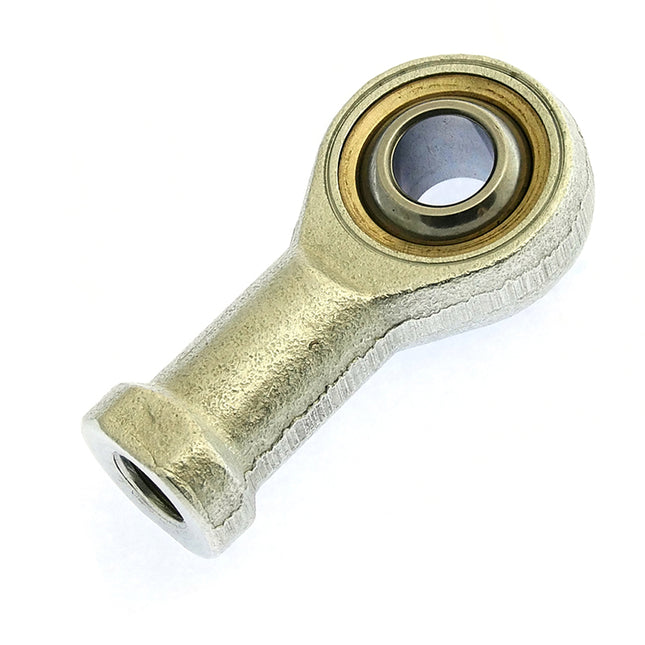

Rod End Bearing M12 Female
Self aligning rod end bearing with M12 tapped mount.Bearing bore: 12mmBearing width: 16mmTapped thread M12Head diameter: 32mmOverall length: 67mm
£3.63
