SPZ V Belt Taper Bush Pulleys

•

  Spz100/1 V Pulley For 1210 T/L Bush (SPZ100/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz100/1 V Pulley For 1210 T/L Bush (SPZ100/1) Part No. 7804-601 Type SPZ100/1 Diameter P (mm) 100 Diameter O (mm) 104 Style 1 Bush 1210 Bore ø max. 32 E – J – K – L 25 M 9 N 85 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £9.39

•

  Spz106/1 V Pulley For 1610 T/L Bush (SPZ106/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz106/1 V Pulley For 1610 T/L Bush (SPZ106/1) Part No. 7804-602 Type SPZ106/1 Diameter P (mm) 106 Diameter O (mm) 110 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £9.86

•

  Spz112/1 V Pulley For 1610 T/L Bush (SPZ112/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz112/1 V Pulley For 1610 T/L Bush (SPZ112/1) Part No. 7804-603 Type SPZ112/1 Diameter P (mm) 112 Diameter O (mm) 116 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £10.49

•

  Spz118/1 V Pulley For 1610 T/L Bush (SPZ118/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz118/1 V Pulley For 1610 T/L Bush (SPZ118/1) Part No. 7804-604 Type SPZ118/1 Diameter P (mm) 118 Diameter O (mm) 122 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £10.87

•

  Spz125/1 V Pulley For 1610 T/L Bush (SPZ125/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz125/1 V Pulley For 1610 T/L Bush (SPZ125/1) Part No. 7804-605 Type SPZ125/1 Diameter P (mm) 125 Diameter O (mm) 129 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £11.75

•

  Spz132/1 V Pulley For 1610 T/L Bush (SPZ132/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz132/1 V Pulley For 1610 T/L Bush (SPZ132/1) Part No. 7804-606 Type SPZ132/1 Diameter P (mm) 132 Diameter O (mm) 136 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £13.51

•

  Spz140/1 V Pulley For 1610 T/L Bush (SPZ140/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz140/1 V Pulley For 1610 T/L Bush (SPZ140/1) Part No. 7804-607 Type SPZ140/1 Diameter P (mm) 140 Diameter O (mm) 144 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £15.33

•

  Spz150/1 V Pulley For 1610 T/L Bush (SPZ150/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz150/1 V Pulley For 1610 T/L Bush (SPZ150/1) Part No. 7804-608 Type SPZ150/1 Diameter P (mm) 150 Diameter O (mm) 154 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £15.58

•

  Spz160/1 V Pulley For 1610 T/L Bush (SPZ160/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz160/1 V Pulley For 1610 T/L Bush (SPZ160/1) Part No. 7804-609 Type SPZ160/1 Diameter P (mm) 160 Diameter O (mm) 164 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £16.65

•

  Spz170/1 V Pulley For 1610 T/L Bush (SPZ170/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz170/1 V Pulley For 1610 T/L Bush (SPZ170/1) Part No. 7804-610 Type SPZ170/1 Diameter P (mm) 170 Diameter O (mm) 174 Style 1 Bush 1610 Bore ø max. 42 E – J – K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £20.42

•

  Spz180/1 V Pulley For 1610 T/L Bush (SPZ180/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz180/1 V Pulley For 1610 T/L Bush (SPZ180/1) Part No. 7804-611 Type SPZ180/1 Diameter P (mm) 180 Diameter O (mm) 184 Style 7 Bush 1610 Bore ø max. 42 E 5 J 152 K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £18.46

•

  Spz190/1 V Pulley For 1610 T/L Bush (SPZ190/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz190/1 V Pulley For 1610 T/L Bush (SPZ190/1) Part No. 7804-612 Type SPZ190/1 Diameter P (mm) 190 Diameter O (mm) 194 Style 7 Bush 1610 Bore ø max. 42 E 12 J 162 K – L 25 M 9 N 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £23.85

•

  Spz200/1 V Pulley For 2012 T/L Bush (SPZ200/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz200/1 V Pulley For 2012 T/L Bush (SPZ200/1) Part No. 7804-613 Type SPZ200/1 Diameter P (mm) 200 Diameter O (mm) 204 Style 7 Bush 2012 Bore ø max. 50 E 10 J 171 K – L 32 M 16 N 112 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £23.50

•

  Spz224/1 V Pulley For 2012 T/L Bush (SPZ224/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz224/1 V Pulley For 2012 T/L Bush (SPZ224/1) Part No. 7804-614 Type SPZ224/1 Diameter P (mm) 204 Diameter O (mm) 208 Style 7 Bush 2012 Bore ø max. 50 E 15 J 195 K – L 32 M 16 N 112 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £26.44

•

  Spz250/1 V Pulley For 2012 T/L Bush (SPZ250/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz250/1 V Pulley For 2012 T/L Bush (SPZ250/1) Part No. 7804-615 Type SPZ250/1 Diameter P (mm) 250 Diameter O (mm) 254 Style 4 Bush 2012 Bore ø max. 50 E – J 221 K 8 L 32 M 8 N 112 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £31.72

•

  Spz280/1 V Pulley For 2012 T/L Bush (SPZ280/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz280/1 V Pulley For 2012 T/L Bush (SPZ280/1) Part No. 7804-616 Type SPZ280/1 Diameter P (mm) 280 Diameter O (mm) 284 Style 4 Bush 2012 Bore ø max. 50 E – J 251 K 8 L 32 M 8 N 112 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £37.61

•

  Spz315/1 V Pulley For 2012 T/L Bush (SPZ315/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz315/1 V Pulley For 2012 T/L Bush (SPZ315/1) Part No. 7804-617 Type SPZ315/1 Diameter P (mm) 315 Diameter O (mm) 319 Style 4 Bush 2012 Bore ø max. 50 E – J 286 K 8 L 32 M 8 N 112 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £43.79

•

  Spz355/1 V Pulley For 2012 T/L Bush (SPZ355/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz355/1 V Pulley For 2012 T/L Bush (SPZ355/1) Part No. 7804-618 Type SPZ355/1 Diameter P (mm) 355 Diameter O (mm) 359 Style 4 Bush 2012 Bore ø max. 50 E – J 326 K 8 L 32 M 8 N 112 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £43.97

•

  Spz400/1 V Pulley For 2012 T/L Bush (SPZ400/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz400/1 V Pulley For 2012 T/L Bush (SPZ400/1) Part No. 7804-619 Type SPZ400/1 Diameter P (mm) 400 Diameter O (mm) 404 Style 4 Bush 2012 Bore ø max. 50 E – J 326 K 8 L 32 M 8 N 112 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £48.01

•

  Spz450/1 V Pulley For 2517 T/L Bush (SPZ450/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz450/1 V Pulley For 2517 T/L Bush (SPZ450/1) Part No. 7804-620 Type SPZ450/1 Diameter P (mm) 450 Diameter O (mm) 454 Style 4 Bush 2012 Bore ø max. 50 E – J 326 K 8 L 32 M 8 N 112 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £60.95

•

  Spz50/1 V Pulley For 1008 T/L Bush (SPZ50/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz50/1 V Pulley For 1008 T/L Bush (SPZ50/1) Part No. 7804-621 Type SPZ50/1 Diameter P (mm) 50 Diameter O (mm) 54 Style 9 Bush 1008 Bore ø max. 25 E – J 26 K 12 L 25 M – N – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £7.43

•

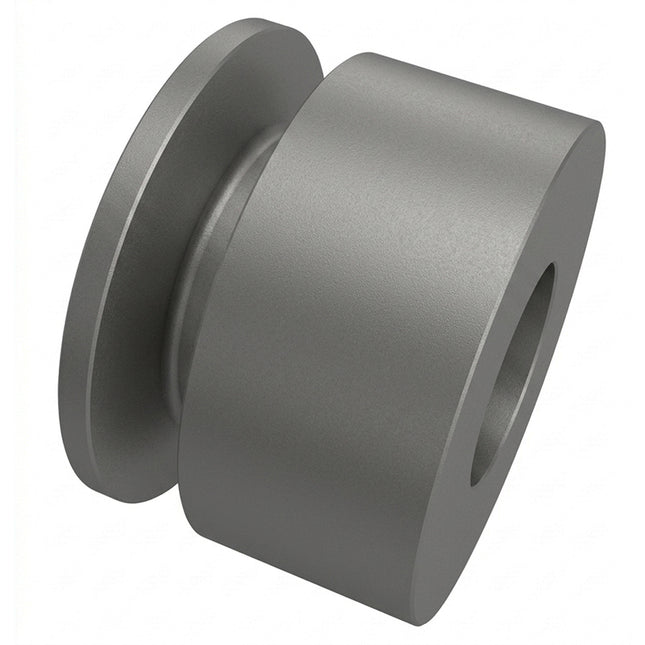

  Spz56/1 V Pulley For 1008 T/L Bush (SPZ56/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz56/1 V Pulley For 1008 T/L Bush (SPZ56/1) Part No. 7804-622 Type SPZ56/1 Diameter P (mm) 56 Diameter O (mm) 60 Style 9 Bush 1008 Bore ø max. 25 E – J 32 K 12 L 25 M – N – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £5.93

•

  Spz60/1 V Pulley For 1008 T/L Bush (SPZ60/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz60/1 V Pulley For 1008 T/L Bush (SPZ60/1) Part No. 7804-623 Type SPZ60/1 Diameter P (mm) 60 Diameter O (mm) 64 Style 1 Bush 1008 Bore ø max. 25 E – J – K – L 22 M – N – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £6.23

•

  Spz63/1 V Pulley For 1108 T/L Bush (SPZ63/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz63/1 V Pulley For 1108 T/L Bush (SPZ63/1) Part No. 7804-624 Type SPZ63/1 Diameter P (mm) 63 Diameter O (mm) 67 Style 1 Bush 1108 Bore ø max. 28 E – J – K – L 22 M 6 N 56 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £5.26

•

  Spz67/1 V Pulley For 1108 T/L Bush (SPZ67/1)

  SPZ 1 Groove V Pulleys taper bore for use with our taper bushes.Spz67/1 V Pulley For 1108 T/L Bush (SPZ67/1) Part No. 7804-625 Type SPZ67/1 Diameter P (mm) 67 Diameter O (mm) 71 Style 1 Bush 1108 Bore ø max. 28 E – J – K – L 22 M 6 N 50 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £5.48
