Description
These Bevel Gears come in pairs, with both gears having differing numbers of teeth. As Bevel Gear pairs are never identical they are supplied in matched left and right-handed pairs. Type B, 20° pressure angle. Bore tolerance H8. UNI EN 10083-1, C45E Steel. Supplied in pairs. Available in 1.5:1, 2:1, 3: & 4:1 ratios. All dimensions in mm. Shaft axes to intersect within . +/- 0.025mm. Angular accuracy between shafts . +/- 5min. Mounting distance tolerance +/- 0.05mm. Standard tolerances, unless otherwise stated ±0.25 mm.

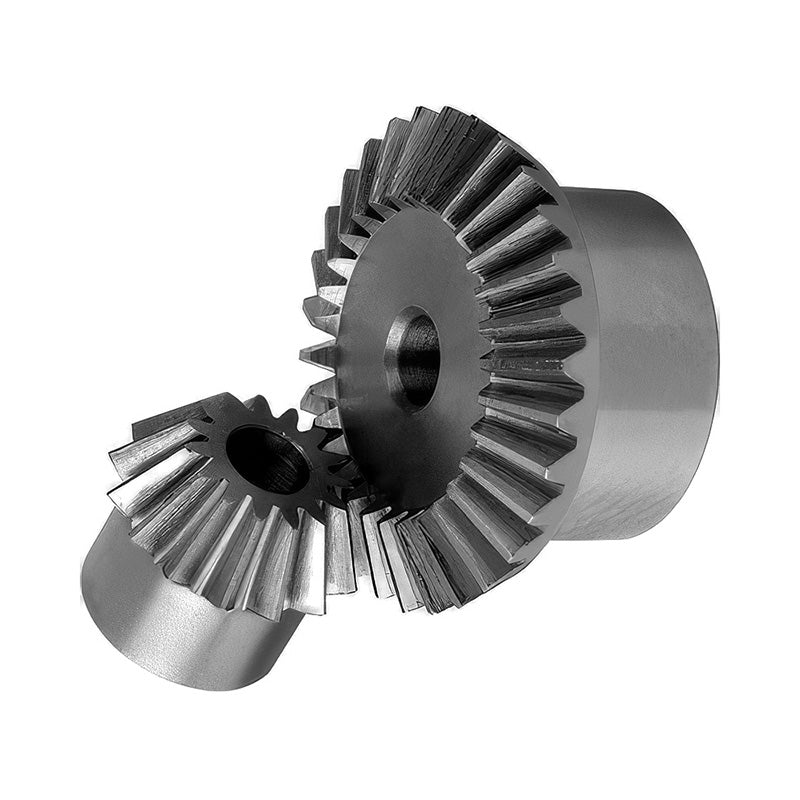

Steel Bevel Gear Mod 1 2:1 15T/30T (similar to SRB10/2)
| Part No. |
7707-402 |
| Code /Ratio |
SRB10/2 |
| Pitch Module |
1 |
| No. Teeth |
15 |
| dp (mm) |
15 |
| V (mm) |
10.1 |
| d (mm) |
13.3 |
| Bore D |
4 |
| F (mm) |
5 |
| H (mm) |
11.9 |
| de (mm) |
17.4 |
| S (mm) |
|
| Lm (mm) |
6.5 |
| Part No. |
7707-402 |
| Code /Ratio |
SRB10/2 |
| Pitch Module |
1 |
| No. Teeth |
30 |
| dp (mm) |
30 |
| V (mm) |
4.9 |
| d (mm) |
20.3 |
| Bore D |
5 |
| F (mm) |
5 |
| H (mm) |
15.1 |
| de (mm) |
30.6 |
| S (mm) |
1.4 |
| Lm (mm) |
9.0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
