Description
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent

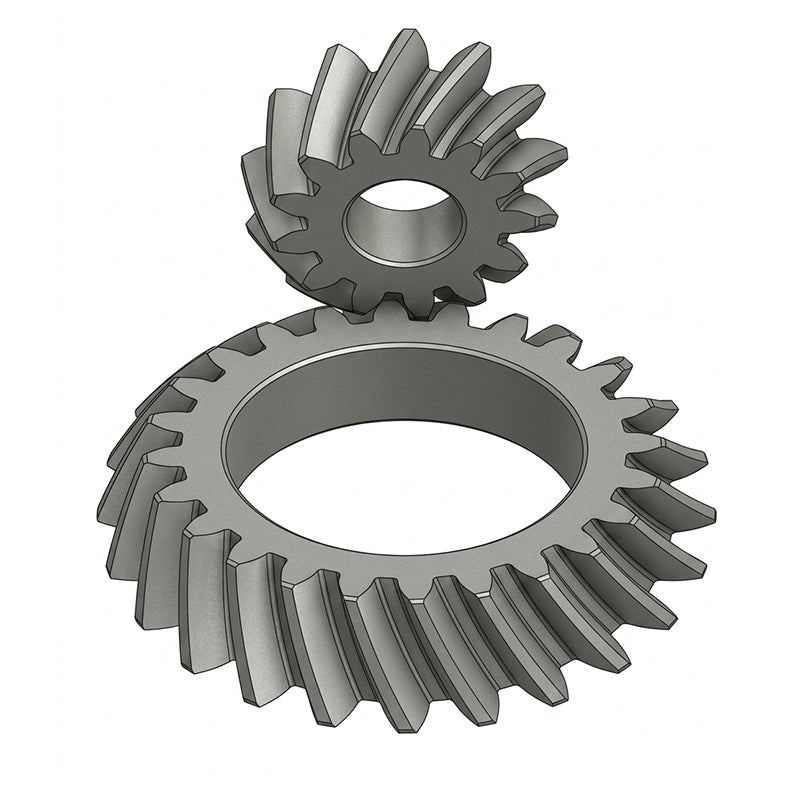

Steel Spiral Bevel Gear Mod 1.5 16T/32T (SRBSP15/2)
| Part No. |
7707-301 |
| Code |
SRBSP15/2 |
| Pitch Module |
1.5 |
| No. Teeth |
16 |
| dp (mm) |
24 |
| de (mm) |
27 |
| dm (mm) |
20 |
| Bore (H8) |
10 |
| F (mm) |
8 |
| Lm (mm) |
9.5 |
| A (mm) |
18.6 |
| V+A (mm) |
35 |
| S (mm) |
1.6 |
| Part No. |
7707-301 |
| Code |
SRBSP15/2 |
| Pitch Module |
1.5 |
| No. Teeth |
32 |
| dp (mm) |
48 |
| de (mm) |
48 |
| dm (mm) |
32 |
| Bore (H8) |
12 |
| F (mm) |
8 |
| Lm (mm) |
10 |
| A (mm) |
20 |
| V+A (mm) |
28 |
| S (mm) |
2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
