Description
Standard tolerances, unless otherwise stated ±0.010 in. Shaft axis to intersect within ±0.001?. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.002?. Bore tolerance as below. 20° pressure angle. Supplied in pairs. All dimensions in inches. 1:1 Ratio

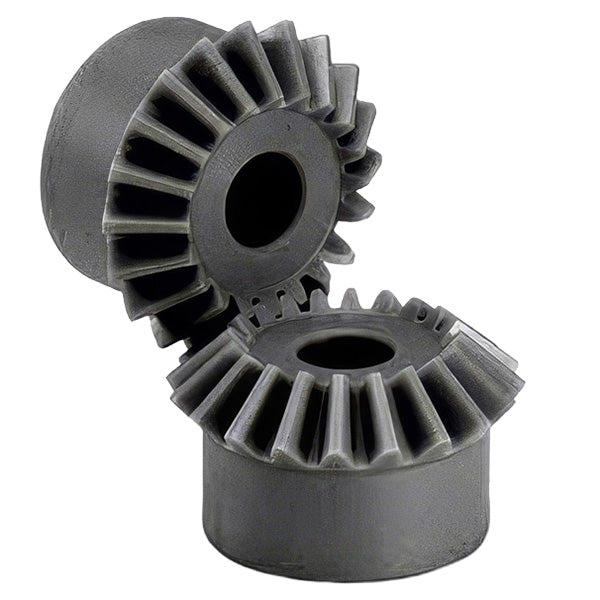

Nylon 6 Mitre Gear DP24 24T 1:1 (PBMDP24/24)
| Part No. |
7708-203 |
| Code |
PBMDP24/24 |
| DP |
24 |
| No. Teeth |
24 |
| dp (in) |
1 |
| de (in) |
1.05 |
| dm (in) |
0.625 |
| Bore +0.001 -0.002 |
0.252 |
| F (in) |
0.182 |
| Lm (in) |
0.188 |
| A (in) |
0.562 |
| V+A (ins) |
0.906 |
| S |
0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
