Description
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 Ratio

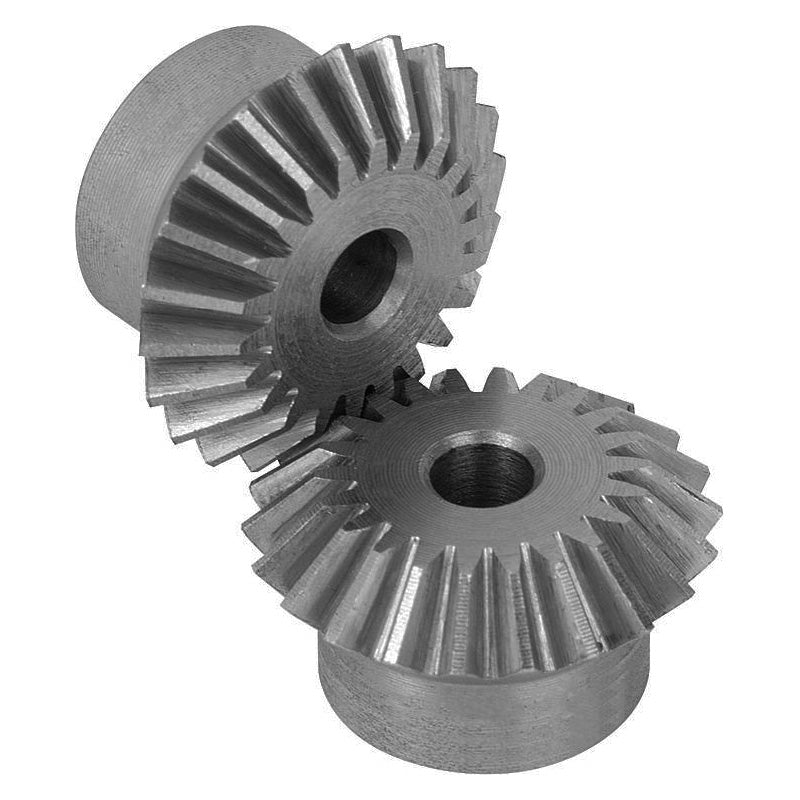

Steel Mitre Gear DP20 20T 1:1 (SBMDP20/20)
| Part No. |
7708-312 |
| Code |
SBMDP20/20 |
| DP |
20 |
| No. Teeth |
20 |
| dp (in) |
1 |
| de (in) |
1.056 |
| dm (in) |
0.75 |
| Bore (in) |
0.375 |
| F (in) |
0.234 |
| Lm (in) |
0.5 |
| A (in) |
0.812 |
| V+A (in) |
1.125 |
| S (in) |
0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
