Mitre Gears
-
Steel Mitre Gear DP24 30T 1:1 (SBMDP24/30)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP24 30T 1:1 (SBMDP24/30) in black oxide finish Part No. 7708-316 Code SBMDP24/30 DP 24 No. Teeth 30 dp (in) 1.25 de (in) 1.309 dm (in) 0.937 Bore (in) 0.25 F (in) 0.3 Lm (in) 0.307 A (in) 0.636 V+A (in) 1.031 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£67.39
-
Steel Mitre Gear DP24 36T 1:1 (SBMDP24/36)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP24 36T 1:1 (SBMDP24/36) in black oxide finish Part No. 7708-317 Code SBMDP24/36 DP 24 No. Teeth 36 dp (in) 1.5 de (in) 1.559 dm (in) 1.3 Bore (in) 0.312 F (in) 0.312 Lm (in) 0.338 A (in) 0.677 V+A (in) 1.187 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£67.62
-
Steel Mitre Gear DP32 16T 1:1 (SBMDP32/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP32 16T 1:1 (SBMDP32/16) Part No. 7708-318 Code SBMDP32/16 DP 32 No. Teeth 16 dp (in) 0.5 de (in) 0.54 dm (in) 0.406 Bore (in) 0.188 F (in) 0.12 Lm (in) 0.188 A (in) 0.344 V+A (in) 0.5 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£50.44
-
Steel Mitre Gear DP32 24T 1:1 (SBMDP32/24)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP32 24T 1:1 (SBMDP32/24) Part No. 7708-319 Code SBMDP32/24 DP 32 No. Teeth 24 dp (in) 0.75 de (in) 0.79 dm (in) 0.5 Bore (in) 0.188 F (in) 0.14 Lm (in) 0.25 A (in) 0.422 V+A (in) 0.688 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£53.79
-
Steel Mitre Gear DP32 32T 1:1 (SBMDP32/32)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP32 32T 1:1 (SBMDP32/32) in black oxide finish Part No. 7708-320 Code SBMDP32/32 DP 32 No. Teeth 32 dp (in) 1 de (in) 1.044 dm (in) 0.781 Bore (in) 0.25 F (in) 0.25 Lm (in) 0.265 A (in) 0.565 V+A (in) 0.875 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£57.59
-
Steel Mitre Gear DP5 24T 1:1 (SBMDP5/24)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP5 24T 1:1 (SBMDP5/24) Part No. 7708-321 Code SBMDP5/24 DP 5 No. Teeth 24 dp (in) 4.8 de (in) 5.083 dm (in) 3.845 Bore (in) 1.25 F (in) 1.125 Lm (in) 1.123 A (in) 2.481 V+A (in) 4 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£236.14
-
Steel Mitre Gear DP6 24T 1:1 (SBMDP6/24)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP6 24T 1:1 (SBMDP6/24) Part No. 7708-322 Code SBMDP6/24 DP 6 No. Teeth 24 dp (in) 4 de (in) 4.236 dm (in) 3.125 Bore (in) 1 F (in) 1 Lm (in) 1.062 A (in) 2.275 V+A (in) 3.5 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£148.47
-
Steel Mitre Gear DP8 24T 1:1 (SBMDP8/24)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalent 1:1 RatioSteel Mitre Gear DP8 24T 1:1 (SBMDP8/24) Part No. 7708-323 Code SBMDP8/24 DP 8 No. Teeth 24 dp (in) 3 de (in) 3.177 dm (in) 2.343 Bore (in) 0.625 F (in) 0.625 Lm (in) 0.952 A (in) 1.749 V+A (in) 2.75 S (in) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£103.68
-
Brass Mitre Gear MOD 1 12T 1:1 (BBM10/12)
Standard tolerances, unless otherwise stated ±0.25mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ± 0.05mm. 20° pressure angle. Supplied in pairs. All dimensions in mm. Brass CZ121 1:1 RatioBrass Mitre Gear Mod 1 12T 1:1 (BBM10/12) Part No. 7708-401 Code BBM10/12 Material Brass Pitch Module 1 No. Teeth 12 dp (mm) 12 de (mm) 13.4 dm (mm) 10 Bore H7 4 F (mm) 4 Lm (mm) 6.2 A (mm) 10.4 A+V (mm) 13.2 S (mm) 1.4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£20.30
-
Brass Mitre Gear MOD 1 16T 1:1 (BBM10/16)
Standard tolerances, unless otherwise stated ±0.25mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ± 0.05mm. 20° pressure angle. Supplied in pairs. All dimensions in mm. Brass CZ121 1:1 RatioBrass Mitre Gear Mod 1 16T 1:1 (BBM10/16) Part No. 7708-402 Code BBM10/16 Material Brass Pitch Module 1 No. Teeth 16 dp (mm) 16 de (mm) 17.4 dm (mm) 12 Bore H7 5 F (mm) 5 Lm (mm) 5 A (mm) 11 A+V (mm) 15.1 S (mm) 1 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£20.40
-
Brass Mitre Gear MOD 1 20T 1:1 (BBM10/20)
Standard tolerances, unless otherwise stated ±0.25mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ± 0.05mm. 20° pressure angle. Supplied in pairs. All dimensions in mm. Brass CZ121 1:1 RatioBrass Mitre Gear Mod 1 20T 1:1 (BBM10/20) Part No. 7708-403 Code BBM10/20 Material Brass Pitch Module 1 No. Teeth 20 dp (mm) 20 de (mm) 21.4 dm (mm) 15 Bore H7 5 F (mm) 5 Lm (mm) 5 A (mm) 11 A+V (mm) 17.1 S (mm) 1.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£22.00
-
Brass Mitre Gear MOD 1 25T 1:1 (BBM10/25)
Standard tolerances, unless otherwise stated ±0.25mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ± 0.05mm. 20° pressure angle. Supplied in pairs. All dimensions in mm. Brass CZ121 1:1 RatioBrass Mitre Gear Mod 1 25T 1:1 (BBM10/25) Part No. 7708-404 Code BBM10/25 Material Brass Pitch Module 1 No. Teeth 25 dp (mm) 25 de (mm) 26.4 dm (mm) 16 Bore H7 5 F (mm) 5 Lm (mm) 7 A (mm) 13 A+V (mm) 21.5 S (mm) 1.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£29.28
-
Brass Mitre Gear MOD 1 30T 1:1 (BBM10/30)
Standard tolerances, unless otherwise stated ±0.25mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ± 0.05mm. 20° pressure angle. Supplied in pairs. All dimensions in mm. Brass CZ121 1:1 RatioBrass Mitre Gear Mod 1 30T 1:1 (BBM10/30) Part No. 7708-405 Code BBM10/30 Material Brass Pitch Module 1 No. Teeth 30 dp (mm) 30 de (mm) 31.4 dm (mm) 16 Bore H7 5 F (mm) 5 Lm (mm) 7 A (mm) 13 A+V (mm) 24 S (mm) 1.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£33.28
-

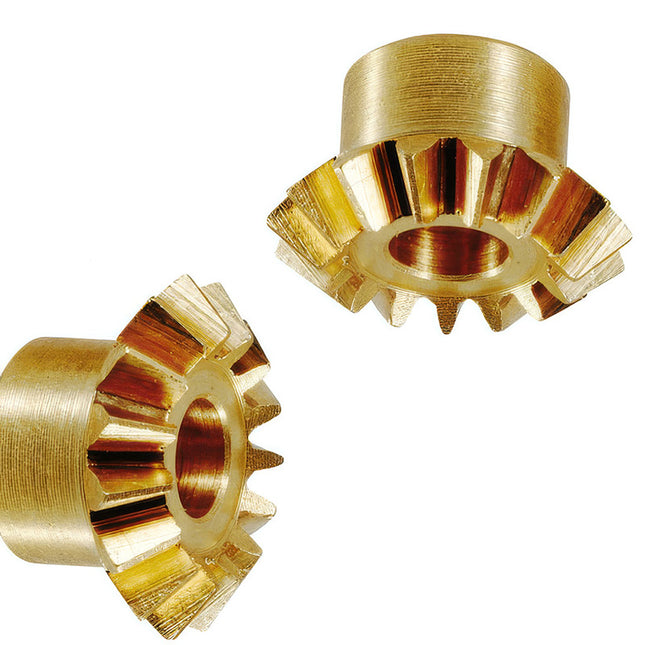

Brass Mitre Gear MOD 1 36T 1:1 (BBM10/36)
Standard tolerances, unless otherwise stated ±0.25mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ± 0.05mm. 20° pressure angle. Supplied in pairs. All dimensions in mm. Brass CZ121 1:1 RatioBrass Mitre Gear Mod 1 36T 1:1 (BBM10/36) Part No. 7708-406 Code BBM10/36 Material Brass Pitch Module 1 No. Teeth 36 dp (mm) 36 de (mm) 37.4 dm (mm) 16 Bore H7 5 F (mm) 5 Lm (mm) 7 A (mm) 13 A+V (mm) 26.9 S (mm) 1.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£45.00
-
Brass Mitre Gear MOD 1 40T 1:1 (BBM10/40)
Standard tolerances, unless otherwise stated ±0.25mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ± 0.05mm. 20° pressure angle. Supplied in pairs. All dimensions in mm. Brass CZ121 1:1 RatioBrass Mitre Gear Mod 1 40T 1:1 (BBM10/40) Part No. 7708-407 Code BBM10/40 Material Brass Pitch Module 1 No. Teeth 40 dp (mm) 40 de (mm) 41.4 dm (mm) 20 Bore H7 5 F (mm) 5 Lm (mm) 8 A (mm) 14 A+V (mm) 29.9 S (mm) 1.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£67.50
-
Hostaform Hostaform White Mitre Gear MOD 0.5 1:1 16T/16T (WPBM05/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CPOM White Mitre Gear Mod 0.5 1:1 16T/16T (WPBM05/16) Part No. 7708-509 Code WPBM05/16 Pitch Module 0.5 No. Teeth 16 dp (mm) 8 de (mm) 8.7 dm (mm) 7 Bore 3 F (mm) 2 Lm (mm) 6 A (mm) 8 V+A (mm) 10.5 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£1.10
-
Hostaform Hostaform White Mitre Gear MOD 1 1:1 16T/16T (WPBM10/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CPOM White Mitre Gear Mod 1 1:1 16T/16T (WPBM10/16) Part No. 7708-510 Code WPBM10/16 Pitch Module 1 No. Teeth 16 dp (mm) 16 de (mm) 17.6 dm (mm) 12 Bore 5 F (mm) 4.7 Lm (mm) 8 A (mm) 13.6 V+A (mm) 18.4 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£1.55
-
Hostaform Hostaform White Mitre Gear MOD 1 1:1 30T/30T (WPBM10/30)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CPOM White Mitre Gear Mod 1 1:1 30T/30T (WPBM10/30) Part No. 7708-511 Code WPBM10/30 Pitch Module 1 No. Teeth 30 dp (mm) 30 de (mm) 31.4 dm (mm) 15 Bore 6 F (mm) 7.4 Lm (mm) 7.4 A (mm) 15.3 V+A (mm) 24.8 S (mm) 2.4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.76
-
Hostaform Hostaform White Mitre Gear MOD 1.5 1:1 16T/16T (WPBM15/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CPOM White Mitre Gear Mod 1.5 1:1 16T/16T (WPBM15/16) Part No. 7708-512 Code WPBM15/16 Pitch Module 1.5 No. Teeth 16 dp (mm) 24 de (mm) 26.4 dm (mm) 18.5 Bore 8 F (mm) 7 Lm (mm) 10 A (mm) 18.4 V+A (mm) 25.8 S (mm) 2.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.52
-
Hostaform Hostaform White Mitre Gear MOD 2 1:1 16T/16T (WPBM20/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CPOM White Mitre Gear Mod 2 1:1 16T/16T (WPBM20/16) Part No. 7708-513 Code WPBM20/16 Pitch Module 2 No. Teeth 16 dp (mm) 32 de (mm) 34.9 dm (mm) 21.9 Bore 10 F (mm) 10 Lm (mm) 9.6 A (mm) 21.2 V+A (mm) 30.4 S (mm) 2.9 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.61
-
Hostaform Hostaform White Mitre Gear MOD 2.5 1:1 16T/16T (WPBM25/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CPOM White Mitre Gear Mod 2.5 1:1 16T/16T (WPBM25/16) Part No. 7708-514 Code WPBM25/16 Pitch Module 2.5 No. Teeth 16 dp (mm) 40 de (mm) 43.5 dm (mm) 25.2 Bore 12 F (mm) 12 Lm (mm) 11.5 A (mm) 25.5 V+A (mm) 37 S (mm) 2.6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£11.02
-
Hostaform Hostaform White Mitre Gear MOD 3 1:1 16T/16T (WPBM30/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CPOM White Mitre Gear Mod 3 1:1 16T/16T (WPBM30/16) Part No. 7708-515 Code WPBM30/16 Pitch Module 3 No. Teeth 16 dp (mm) 48 de (mm) 52.3 dm (mm) 28.8 Bore 14 F (mm) 14 Lm (mm) 13.2 A (mm) 29.2 V+A (mm) 43 S (mm) 2.4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.19
-
Hostaform Hostaform White Mitre Gear MOD 3.5 1:1 16T/16T (WPBM35/16)
DIN 3964, DIN 3967, DIN 3971. Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. White POM CPOM White Mitre Gear Mod 3.5 1:1 16T/16T (WPBM35/16) Part No. 7708-516 Code WPBM35/16 Pitch Module 3.5 No. Teeth 16 dp (mm) 56 de (mm) 61.4 dm (mm) 33.3 Bore 18 F (mm) 16 Lm (mm) 14.4 A (mm) 33.1 V+A (mm) 49.5 S (mm) 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£20.86
-

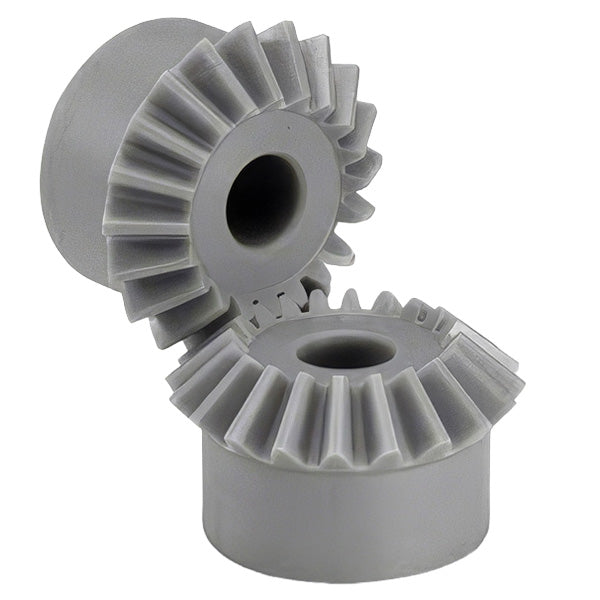

Acetal Mitre Gear MOD 1 1:1 16T/16T (DBM10/16)
Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 1 1:1 16T/16T (DBM10/16) Part No. 7708-603 Code DBM10/16 Pitch Module 1 No. Teeth 16 dp (mm) 16 de (mm) 17.4 dm (mm) 13.3 Bore H8 4 F (mm) 4 Lm (mm) 6.5 A (mm) 11.2 V+A (mm) 16 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£20.88
-
Acetal Mitre Gear MOD 1 1:1 19T/19T (DBM10/19)
Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 1 1:1 19T/19T (DBM10/19) Part No. 7708-604 Code DBM10/19 Pitch Module 1 No. Teeth 19 dp (mm) 19 de (mm) 20.4 dm (mm) 15.3 Bore H8 4 F (mm) 4 Lm (mm) 6.5 A (mm) 11.8 V+A (mm) 18 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£43.03
