Description
Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 Ratio

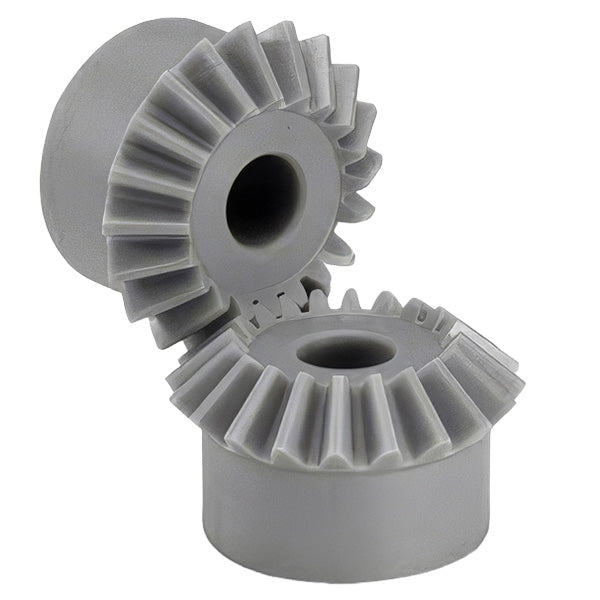

Acetal Mitre Gear Mod 1 1:1 16T/16T (DBM10/16)
| Part No. |
7708-603 |
| Code |
DBM10/16 |
| Pitch Module |
1 |
| No. Teeth |
16 |
| dp (mm) |
16 |
| de (mm) |
17.4 |
| dm (mm) |
13.3 |
| Bore H8 |
4 |
| F (mm) |
4 |
| Lm (mm) |
6.5 |
| A (mm) |
11.2 |
| V+A (mm) |
16 |
| S (mm) |
0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
