Mitre Gears

Show previous products

•

  Acetal Mitre Gear MOD 1 1:1 22T/22T (DBM10/22)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 1 1:1 22T/22T (DBM10/22) Part No. 7708-605 Code DBM10/22 Pitch Module 1 No. Teeth 22 dp (mm) 22 de (mm) 23.4 dm (mm) 15.3 Bore H8 5 F (mm) 4.7 Lm (mm) 5.5 A (mm) 12.8 V+A (mm) 20 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £43.79

•

  Acetal Mitre Gear MOD 1 1:1 26T/26T (DBM10/26)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 1 1:1 26T/26T (DBM10/26) Part No. 7708-606 Code DBM10/26 Pitch Module 1 No. Teeth 26 dp (mm) 26 de (mm) 27.4 dm (mm) 20.3 Bore H8 5 F (mm) 5.5 Lm (mm) 7 A (mm) 13.3 V+A (mm) 22 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £49.79

•

  Acetal Mitre Gear MOD 1 1:1 30T/30T (DBM10/30)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 1 1:1 30T/30T (DBM10/30) Part No. 7708-607 Code DBM10/30 Pitch Module 1 No. Teeth 30 dp (mm) 30 de (mm) 31.4 dm (mm) 20.3 Bore H8 5 F (mm) 6.4 Lm (mm) 8 A (mm) 16 V+A (mm) 26 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £32.97

•

  Acetal Mitre Gear MOD 1.5 1:1 30T/30T (DBM15/30)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 1.5 1:1 30T/30T (DBM15/30) Part No. 7708-608 Code DBM15/30 Pitch Module 1.5 No. Teeth 30 dp (mm) 45 de (mm) 47.12 dm (mm) 32 Bore H8 12 F (mm) 9.5 Lm (mm) 9 A (mm) 19.92 V+A (mm) 35 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £84.57

•

  Acetal Mitre Gear MOD 2.5 1:1 25T/25T (DBM25/25)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 2.5 1:1 25T/25T (DBM25/25) Part No. 7708-609 Code DBM25/25 Pitch Module 2.5 No. Teeth 25 dp (mm) 62.5 de (mm) 66 dm (mm) 55 Bore H8 15 F (mm) 15 Lm (mm) 15 A (mm) 30.5 V+A (mm) 50 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £86.47

•

  Acetal Mitre Gear MOD 4 1:1 16T/16T (DBM40/16)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 4 1:1 16T/16T (DBM40/16), comes with 5mm wide keyway in bore Part No. 7708-610 Code DBM40/16 Pitch Module 4 No. Teeth 16 dp (mm) 64 de (mm) 69.6 dm (mm) 50 Bore H8 15 F (mm) 15 Lm (mm) 16.49 A (mm) 35.81 V+A (mm) 55.5 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £132.35

•

  Acetal Mitre Gear MOD 5 1:1 16T/16T (DBM50/16)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN 1:1 RatioAcetal Mitre Gear Mod 5 1:1 16T/16T (DBM50/16), comes with 6mm wide keyway in bore Part No. 7708-611 Code DBM50/16 Pitch Module 5 No. Teeth 16 dp (mm) 80 de (mm) 87.1 dm (mm) 60 Bore H8 18 F (mm) 20 Lm (mm) 20 A (mm) 46.13 V+A (mm) 70 S (mm) 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £191.45

•

  Black Glass Filled Nylon Mitre Gears, MOD 1.5 1:1 20T/20T (PBM15/20)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 1.5 1:1 20T/20T (PBM15/20) Part No. 7708-612 Code PBM15/20 Pitch Module 1.5 No. Teeth 20 dp (mm) 30 de (mm) 32.1 dm (mm) 22 Bore H8 6 F (mm) 8 Lm (mm) 9 A (mm) 20 V+A (mm) 28.7 S (mm) 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £24.39

•

  Black Glass Filled Nylon Mitre Gears, MOD 1.5 1:1 30T/30T (PBM15/30)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 1.5 1:1 30T/30T (PBM15/30) Part No. 7708-613 Code PBM15/30 Pitch Module 1.5 No. Teeth 30 dp (mm) 45 de (mm) 47.1 dm (mm) 35 Bore H8 12 F (mm) 10 Lm (mm) 12 A (mm) 25 V+A (mm) 39.7 S (mm) 2.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £35.98

•

  Black Glass Filled Nylon Mitre Gears, MOD 2 1:1 20T/20T (PBM20/20)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 2 1:1 20T/20T (PBM20/20) Part No. 7708-614 Code PBM20/20 Pitch Module 2 No. Teeth 20 dp (mm) 40 de (mm) 42.8 dm (mm) 32 Bore H8 8 F (mm) 12 Lm (mm) 12 A (mm) 27 V+A (mm) 35.7 S (mm) 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £37.14

•

  Black Glass Filled Nylon Mitre Gears, MOD 2 1:1 30T/30T (PBM20/30)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 2 1:1 30T/30T (PBM20/30) Part No. 7708-615 Code PBM20/30 Pitch Module 2 No. Teeth 30 dp (mm) 60 de (mm) 62.8 dm (mm) 50 Bore H8 12 F (mm) 16 Lm (mm) 12.28 A (mm) 30 V+A (mm) 47.8 S (mm) 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £42.06

•

  Black Glass Filled Nylon Mitre Gears, MOD 2.5 1:1 20T/20T (PBM25/20)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 2.5 1:1 20T/20T (PBM25/20) Part No. 7708-616 Code PBM25/20 Pitch Module 2.5 No. Teeth 20 dp (mm) 50 de (mm) 53.5 dm (mm) 38 Bore H8 12 F (mm) 12 Lm (mm) 16 A (mm) 30 V+A (mm) 45.9 S (mm) 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £42.35

•

  Black Glass Filled Nylon Mitre Gears, MOD 2.5 1:1 30T/30T (PBM25/30)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 2.5 1:1 30T/30T (PBM25/30) Part No. 7708-617 Code PBM25/30 Pitch Module 2.5 No. Teeth 30 dp (mm) 75 de (mm) 78.5 dm (mm) 50 Bore H8 14 F (mm) 18 Lm (mm) 16 A (mm) 35 V+A (mm) 59.1 S (mm) 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £55.69

•

  Black Glass Filled Nylon Mitre Gears, MOD 3 1:1 20T/20T (PBM30/20)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 3 1:1 20T/20T (PBM30/20) Part No. 7708-618 Code PBM30/20 Pitch Module 3 No. Teeth 20 dp (mm) 60 de (mm) 64.2 dm (mm) 44 Bore H8 14 F (mm) 18 Lm (mm) 13.6 A (mm) 35 V+A (mm) 51.1 S (mm) 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £52.36

•

  Black Glass Filled Nylon Mitre Gears, MOD 3 1:1 30T/30T (PBM30/30)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 3 1:1 30T/30T (PBM30/30) Part No. 7708-619 Code PBM30/30 Pitch Module 3 No. Teeth 30 dp (mm) 90 de (mm) 94.2 dm (mm) 60 Bore H8 20 F (mm) 22 Lm (mm) 19 A (mm) 40 V+A (mm) 68.1 S (mm) 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £52.89

•

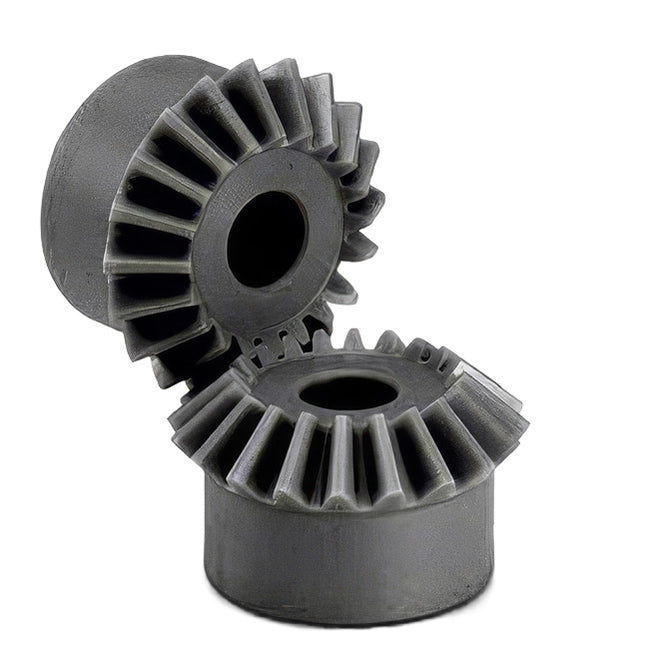

  Black Glass Filled Nylon Mitre Gears, MOD 3.5 1:1 20T/20T (PBM35/20)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore unmachined typically 0.5 – 1mm undersize. Max. recommended working. temperature 130°C. 20° pressure angle. Supplied in pairs. All dimensions in mm. 30% Glass filled Nylon 6Black Glass Filled Nylon Mitre Gears, Mod 3.5 1:1 20T/20T (PBM35/20) Part No. 7708-620 Code PBM35/20 Pitch Module 3.5 No. Teeth 20 dp (mm) 70 de (mm) 74.9 dm (mm) 56 Bore H8 14 F (mm) 22 Lm (mm) 19 A (mm) 40.5 V+A (mm) 58.6 S (mm) 4.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £60.61

•

  Steel Spiral Mitre Gear MOD 1.5 16T/16T (SBMSP15/16)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 1.5 16T/16T (SBMSP15/16) Part No. 7708-701 Code SBMSP15/16 Pitch Module 1.5 No. Teeth 16 dp (mm) 24 de (mm) 25 dm (mm) 18 Bore (H8) 8 F (mm) 6 Lm (mm) 9 A (mm) 16.7 A+V (mm) 24 S (mm) 0.7 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £72.86

•

  Steel Spiral Mitre Gear MOD 1.5 20T/20T (SBMSP15/20)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 1.5 20T/20T (SBMSP15/20) Part No. 7708-702 Code SBMSP15/20 Pitch Module 1.5 No. Teeth 20 dp (mm) 30 de (mm) 31 dm (mm) 22 Bore (H8) 8 F (mm) 7 Lm (mm) 10 A (mm) 19.4 A+V (mm) 29 S (mm) 1.4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £92.96

•

  Steel Spiral Mitre Gear MOD 1.5 25T/25T (SBMSP15/25)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 1.5 25T/25T (SBMSP15/25) Part No. 7708-703 Code SBMSP15/25 Pitch Module 1.5 No. Teeth 25 dp (mm) 38 de (mm) 39 dm (mm) 28 Bore (H8) 8 F (mm) 8 Lm (mm) 11.5 A (mm) 26.5 A+V (mm) 35 S (mm) 6.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £141.52

•

  Steel Spiral Mitre Gear MOD 1.5 30T/30T (SBMSP15/30)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 1.5 30T/30T (SBMSP15/30) Part No. 7708-704 Code SBMSP15/30 Pitch Module 1.5 No. Teeth 30 dp (mm) 45 de (mm) 46 dm (mm) 32 Bore (H8) 10 F (mm) 10 Lm (mm) 11 A (mm) 31.8 A+V (mm) 40 S (mm) 10.3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £165.49

•

  Steel Spiral Mitre Gear MOD 2.0 16T/16T (SBMSP20/16)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 2.0 16T/16T (SBMSP20/16) Part No. 7708-705 Code SBMSP20/16 Pitch Module 2 No. Teeth 16 dp (mm) 32 de (mm) 34 dm (mm) 25 Bore (H8) 10 F (mm) 9 Lm (mm) 9.45 A (mm) 19.9 A+V (mm) 29 S (mm) 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £81.35

•

  Steel Spiral Mitre Gear MOD 2.0 20T/20T (SBMSP20/20)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 2.0 20T/20T (SBMSP20/20) Part No. 7708-706 Code SBMSP20/20 Pitch Module 2 No. Teeth 20 dp (mm) 40 de (mm) 42 dm (mm) 32 Bore (H8) 10 F (mm) 12 Lm (mm) 11.95 A (mm) 24.9 A+V (mm) 36 S (mm) 3.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £100.57

•

  Steel Spiral Mitre Gear MOD 2.0 25T/25T (SBMSP20/25)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 2.0 25T/25T (SBMSP20/25) Part No. 7708-707 Code SBMSP20/25 Pitch Module 2 No. Teeth 25 dp (mm) 50 de (mm) 52 dm (mm) 40 Bore (H8) 12 F (mm) 14 Lm (mm) 11.9 A (mm) 27.4 A+V (mm) 42 S (mm) 2.6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £143.69

•

  Steel Spiral Mitre Gear MOD 2.0 30T/30T (SBMSP20/30)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 2.0 30T/30T (SBMSP20/30) Part No. 7708-708 Code SBMSP20/30 Pitch Module 2 No. Teeth 30 dp (mm) 60 de (mm) 62 dm (mm) 50 Bore (H8) 12 F (mm) 16 Lm (mm) 12.95 A (mm) 29.9 A+V (mm) 48 S (mm) 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £166.00

•

  Steel Spiral Mitre Gear MOD 2.5 16T/16T (SBMSP25/16)

  Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalentSteel Spiral Mitre Gear Mod 2.5 16T/16T (SBMSP25/16) Part No. 7708-709 Code SBMSP25/16 Pitch Module 2.5 No. Teeth 16 dp (mm) 40 de (mm) 43 dm (mm) 32 Bore (H8) 12 F (mm) 10 Lm (mm) 13 A (mm) 24.8 A+V (mm) 37 S (mm) 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £104.35
