Description
Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Cut to the Gleason System. 20° pressure angle. Pitch angle 45°. Supplied in pairs. All dimensions in mm. Steel EN8, (080M40/080M46). or equivalent

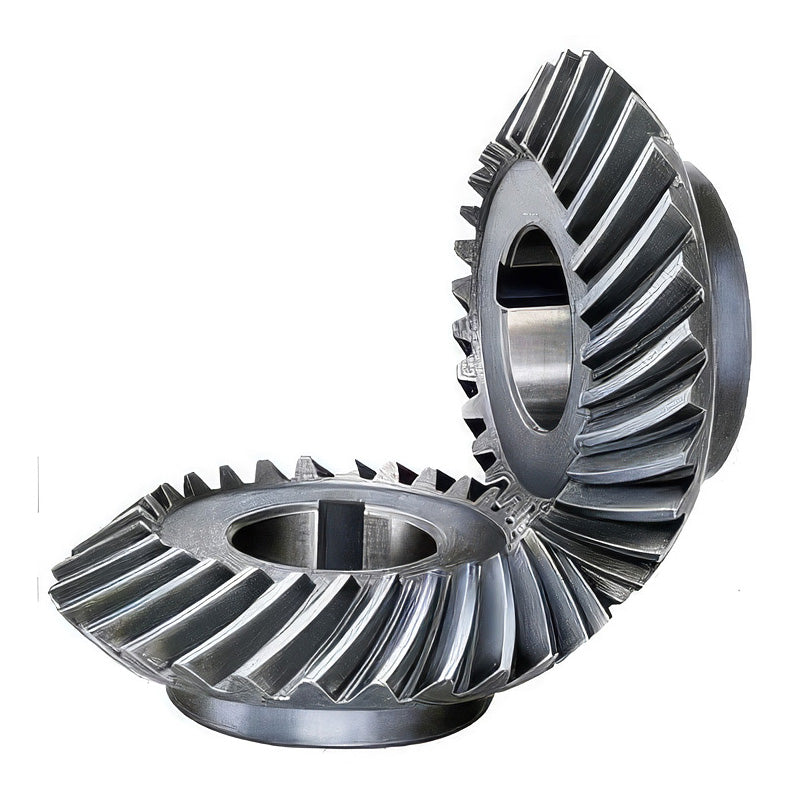

Steel Spiral Mitre Gear Mod 2.0 30T/30T (SBMSP20/30)
| Part No. |
7708-708 |
| Code |
SBMSP20/30 |
| Pitch Module |
2 |
| No. Teeth |
30 |
| dp (mm) |
60 |
| de (mm) |
62 |
| dm (mm) |
50 |
| Bore (H8) |
12 |
| F (mm) |
16 |
| Lm (mm) |
12.95 |
| A (mm) |
29.9 |
| A+V (mm) |
48 |
| S (mm) |
3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
