Metric Spur Gears
-
Delrin Delrin Moulded Spur MOD 1.0 20T, With Hub (DS10/20B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 20T, With Hub (DS10/20B) Part No. 7701-348 Code DS10/20B No. of Teeth 20 Pitch Ø B 20 Bore Ø H9 5 Hub/Boss Ø D 11.7 Outside Ø A 22 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.26
-
Delrin Delrin Moulded Spur MOD 1.0 24T, With Hub (DS10/24B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 24T, With Hub (DS10/24B) Part No. 7701-349 Code DS10/24B No. of Teeth 24 Pitch Ø B 24 Bore Ø H9 5 Hub/Boss Ø D 11.7 Outside Ø A 26 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.40
-
Delrin Delrin Moulded Spur MOD 1.0 25T, With Hub (DS10/25B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 25T, With Hub (DS10/25B) Part No. 7701-350 Code DS10/25B No. of Teeth 25 Pitch Ø B 25 Bore Ø H9 5 Hub/Boss Ø D 11.7 Outside Ø A 27 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.60
-
Delrin Delrin Moulded Spur MOD 1.0 28T, With Hub (DS10/28B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 28T, With Hub (DS10/28B) Part No. 7701-351 Code DS10/28B No. of Teeth 28 Pitch Ø B 28 Bore Ø H9 5 Hub/Boss Ø D 11.7 Outside Ø A 30 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.87
-
Delrin Delrin Moulded Spur MOD 1.0 30T, With Hub (DS10/30B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 30T, With Hub (DS10/30B) Part No. 7701-352 Code DS10/30B No. of Teeth 30 Pitch Ø B 30 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 32 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.94
-
Delrin Delrin Moulded Spur MOD 1.0 32T, With Hub (DS10/32B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 32T, With Hub (DS10/32B) Part No. 7701-353 Code DS10/32B No. of Teeth 32 Pitch Ø B 32 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 34 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.05
-
Delrin Delrin Moulded Spur MOD 1.0 35T, With Hub (DS10/35B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 35T, With Hub (DS10/35B) Part No. 7701-354 Code DS10/35B No. of Teeth 35 Pitch Ø B 35 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 37 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.21
-
Delrin Delrin Moulded Spur MOD 1.0 36T, With Hub (DS10/36B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 36T, With Hub (DS10/36B) Part No. 7701-355 Code DS10/36B No. of Teeth 36 Pitch Ø B 36 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 38 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.23
-
Delrin Delrin Moulded Spur MOD 1.0 40T, With Hub (DS10/40B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 40T, With Hub (DS10/40B) Part No. 7701-356 Code DS10/40B No. of Teeth 40 Pitch Ø B 40 Bore Ø H9 8 Hub/Boss Ø D 16 Outside Ø A 42 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.54
-
Delrin Delrin Moulded Spur MOD 1.0 45T, With Hub (DS10/45B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 45T, With Hub (DS10/45B) Part No. 7701-357 Code DS10/45B No. of Teeth 45 Pitch Ø B 45 Bore Ø H9 8 Hub/Boss Ø D 16 Outside Ø A 47 O/A Width F 12 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.59
-
Delrin Delrin Moulded Spur MOD 1.0 48T, With Hub (DS10/48B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 48T, With Hub (DS10/48B) Part No. 7701-358 Code DS10/48B No. of Teeth 48 Pitch Ø B 48 Bore Ø H9 8 Hub/Boss Ø D 16 Outside Ø A 50 O/A Width F 14 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.27
-
Delrin Delrin Moulded Spur MOD 1.0 50T, With Hub (DS10/50B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 50T, With Hub (DS10/50B) Part No. 7701-359 Code DS10/50B No. of Teeth 50 Pitch Ø B 50 Bore Ø H9 8 Hub/Boss Ø D 16 Outside Ø A 52 O/A Width F 14 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.80
-
Delrin Delrin Moulded Spur MOD 1.0 56T, With Hub (DS10/56B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 56T, With Hub (DS10/56B) Part No. 7701-360 Code DS10/56B No. of Teeth 56 Pitch Ø B 56 Bore Ø H9 8 Hub/Boss Ø D 18 Outside Ø A 58 O/A Width F 14 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.62
-
Delrin Delrin Moulded Spur MOD 1.0 60T, With Hub (DS10/60B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 60T, With Hub (DS10/60B) Part No. 7701-361 Code DS10/60B No. of Teeth 60 Pitch Ø B 60 Bore Ø H9 8 Hub/Boss Ø D 18 Outside Ø A 62 O/A Width F 14 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.98
-
Delrin Delrin Moulded Spur MOD 1.0 64T, With Hub (DS10/64B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 64T, With Hub (DS10/64B) Part No. 7701-362 Code DS10/64B No. of Teeth 64 Pitch Ø B 64 Bore Ø H9 8 Hub/Boss Ø D 18 Outside Ø A 66 O/A Width F 14 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.04
-
Delrin Delrin Moulded Spur MOD 1.0 70T, With Hub (DS10/70B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 70T, With Hub (DS10/70B) Part No. 7701-363 Code DS10/70B No. of Teeth 70 Pitch Ø B 70 Bore Ø H9 8 Hub/Boss Ø D 18 Outside Ø A 72 O/A Width F 14 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.65
-
Delrin Delrin Moulded Spur MOD 1.0 72T, With Hub (DS10/72B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 72T, With Hub (DS10/72B) Part No. 7701-364 Code DS10/72B No. of Teeth 72 Pitch Ø B 72 Bore Ø H9 8 Hub/Boss Ø D 18 Outside Ø A 74 O/A Width F 14 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.70
-
Delrin Delrin Moulded Spur MOD 1.0 80T, With Hub (DS10/80B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 1.0 80T, With Hub (DS10/80B) Part No. 7701-365 Code DS10/80B No. of Teeth 80 Pitch Ø B 80 Bore Ø H9 8 Hub/Boss Ø D 18 Outside Ø A 82 O/A Width F 14 Face Width G 6 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.57
-

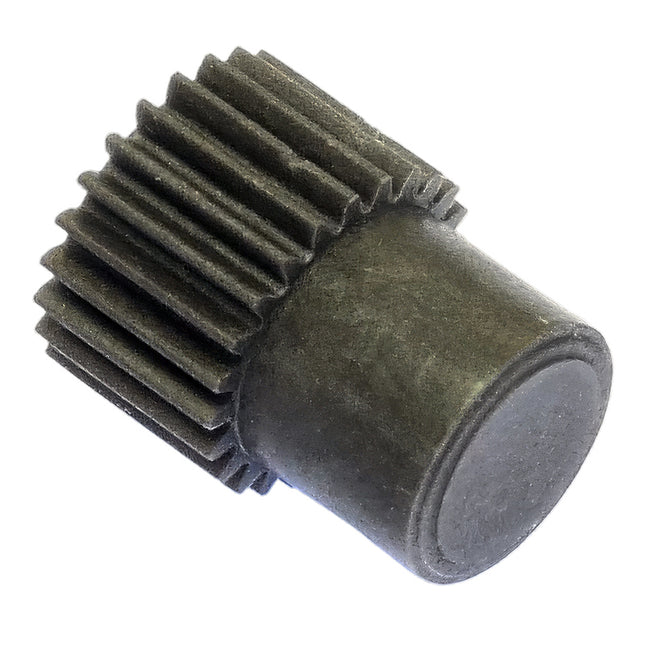

Nylon 6 Spur Gear MOD 0.5 24T, With Hub (PS05/24B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-375 Code PS05/24B No. of Teeth 24 Torque (Nm) 0.66 Pitch Ø Dp 12 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 13 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£3.73
-

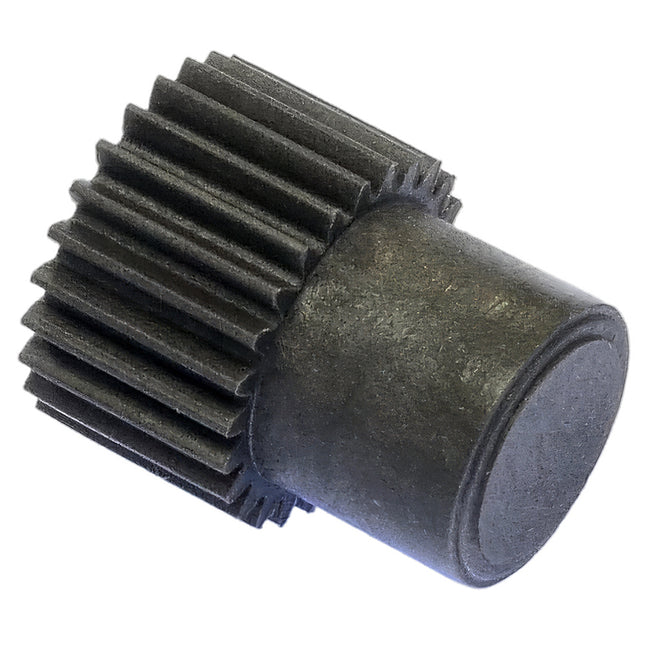

Nylon 6 Spur Gear MOD 0.5 25T, With Hub (PS05/25B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-376 Code PS05/25B No. of Teeth 25 Torque (Nm) 0.68 Pitch Ø Dp 12.5 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 13.5 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£3.75
-

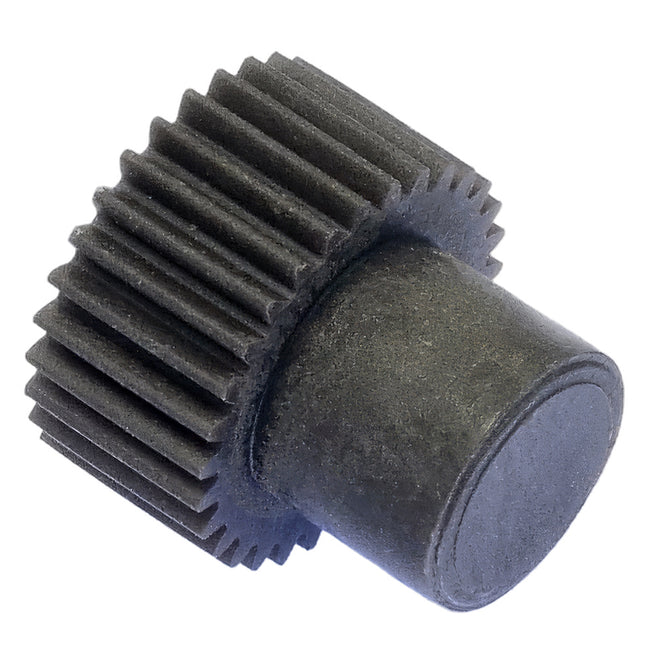

Nylon 6 Spur Gear MOD 0.5 30T, With Hub (PS05/30B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-377 Code PS05/30B No. of Teeth 30 Torque (Nm) 0.82 Pitch Ø Dp 15 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 16 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£3.76
-

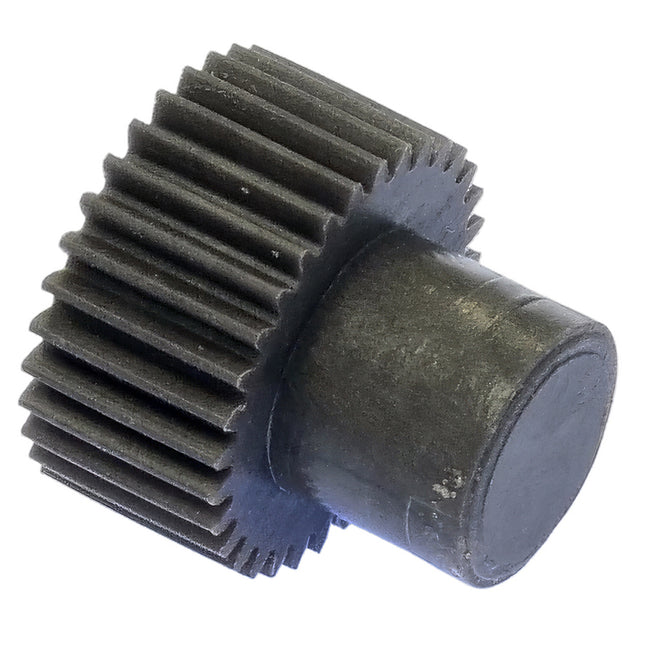

Nylon 6 Spur Gear MOD 0.5 32T, With Hub (PS05/32B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-378 Code PS05/32B No. of Teeth 32 Torque (Nm) 0.87 Pitch Ø Dp 16 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 17 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£3.76
-

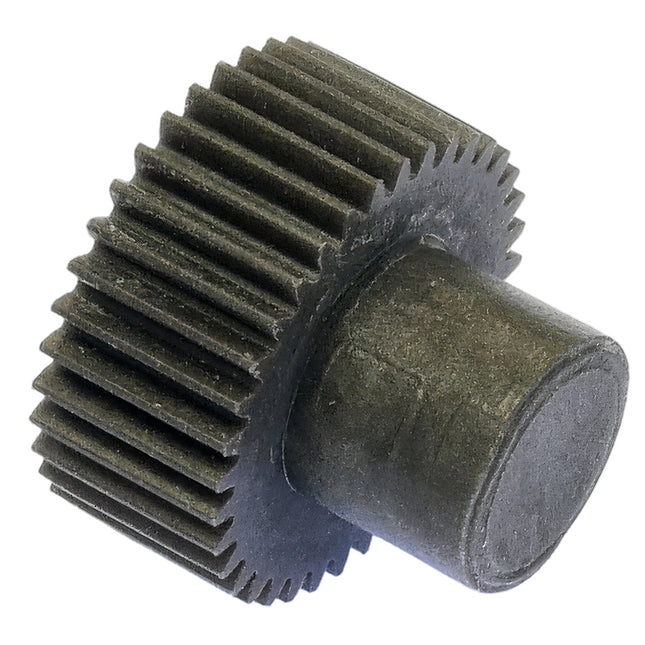

Nylon 6 Spur Gear MOD 0.5 36T, With Hub (PS05/36B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-379 Code PS05/36B No. of Teeth 36 Torque (Nm) 0.98 Pitch Ø Dp 18 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 19 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£3.88
-

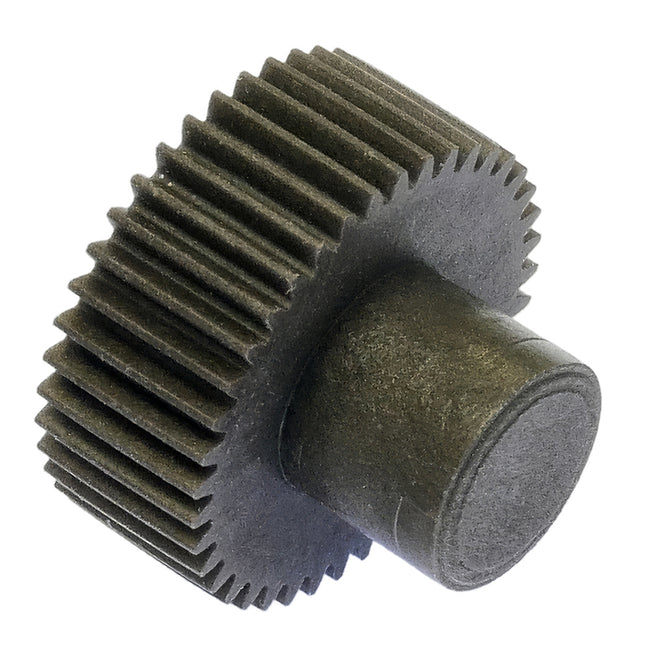

Nylon 6 Spur Gear MOD 0.5 40T, With Hub (PS05/40B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-380 Code PS05/40B No. of Teeth 40 Torque (Nm) 1.09 Pitch Ø Dp 20 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 21 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£3.88
-

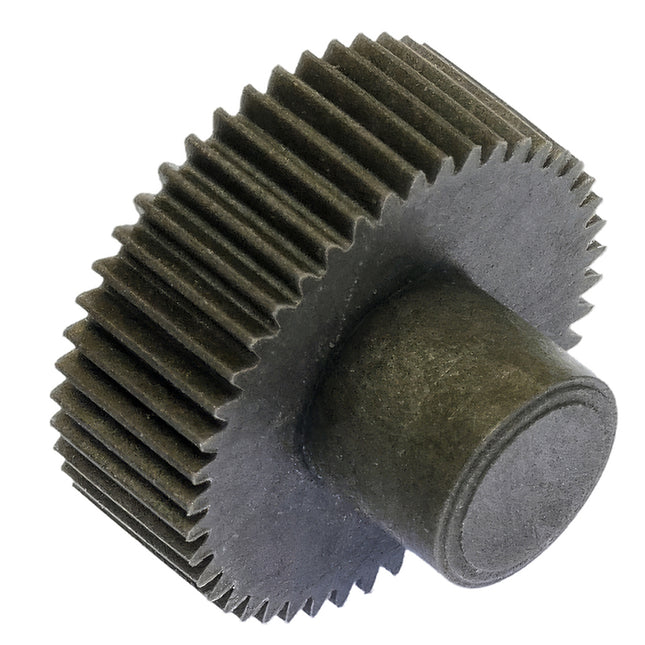

Nylon 6 Spur Gear MOD 0.5 45T, With Hub (PS05/45B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-381 Code PS05/45B No. of Teeth 45 Torque (Nm) 1.23 Pitch Ø Dp 22.5 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 23.5 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£4.06
