Metric Spur Gears
-

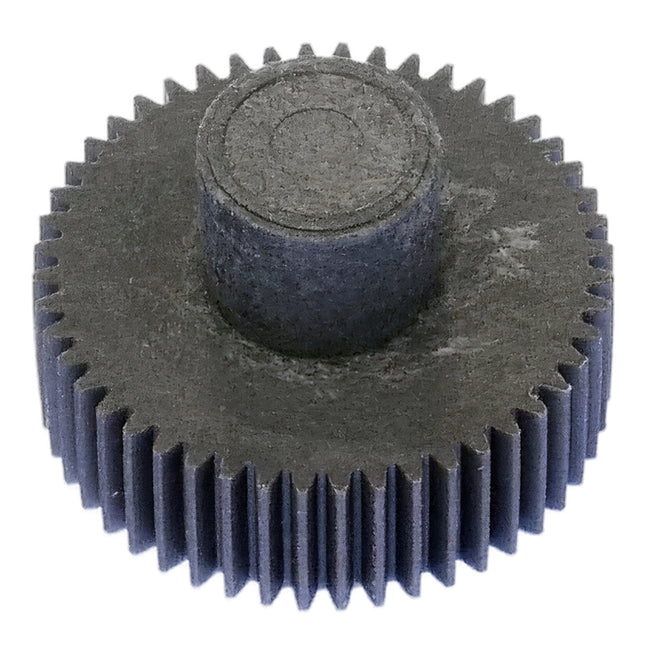

Nylon 6 Spur Gear MOD 0.5 48T, With Hub (PS05/48B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-382 Code PS05/48B No. of Teeth 48 Torque (Nm) 1.31 Pitch Ø Dp 24 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 25 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£4.31
-

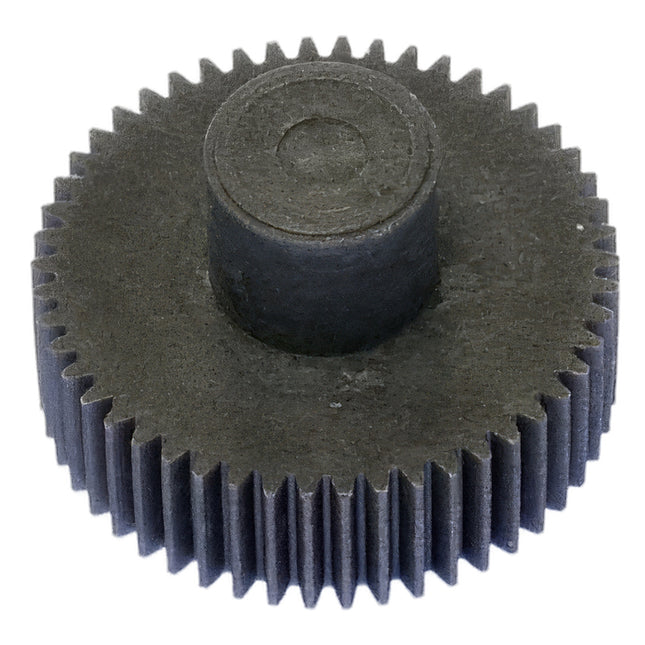

Nylon 6 Spur Gear MOD 0.5 50T, With Hub (PS05/50B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-383 Code PS05/50B No. of Teeth 50 Torque (Nm) 1.37 Pitch Ø Dp 25 Inner Dia Da - Bore Ø D1 No Hub/Boss Ø Dm 10 Outside Ø De 26 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£5.02
-

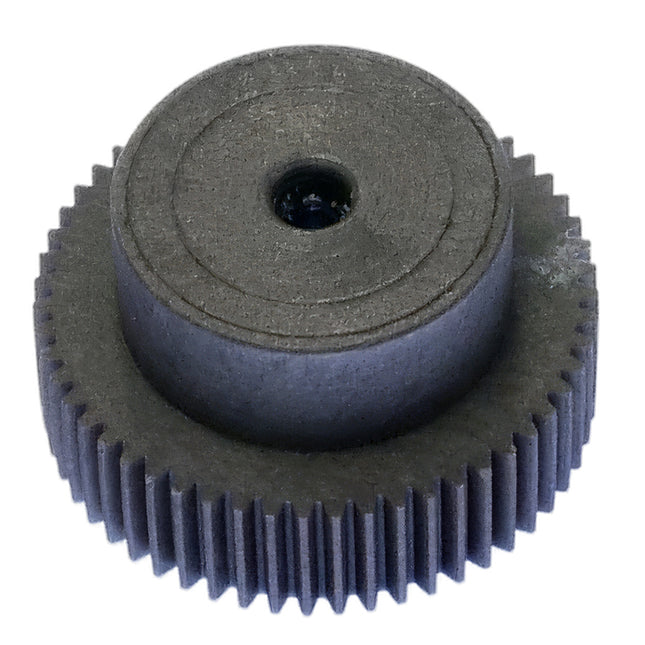

Nylon 6 Spur Gear MOD 0.5 55T, With Hub (PS05/55B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-384 Code PS05/55B No. of Teeth 55 Torque (Nm) 1.5 Pitch Ø Dp 27.5 Inner Dia Da - Bore Ø D1 4 Hub/Boss Ø Dm 20 Outside Ø De 28.5 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£5.61
-

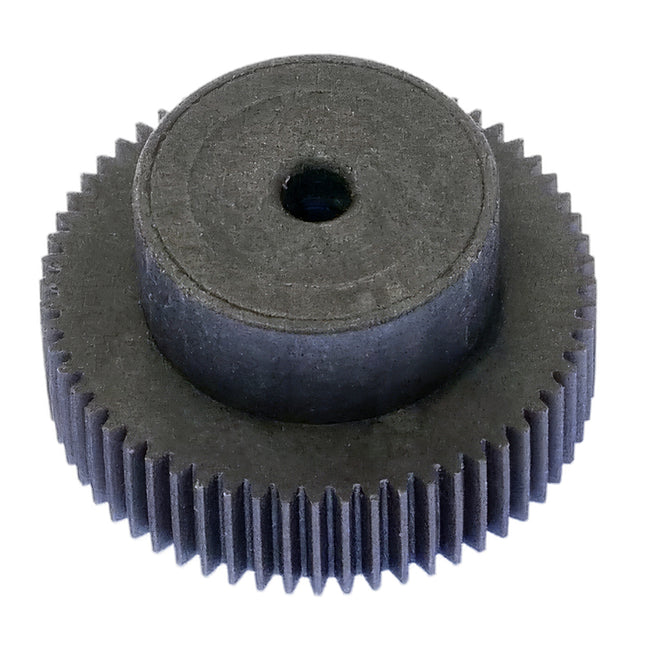

Nylon 6 Spur Gear MOD 0.5 60T, With Hub (PS05/60B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-385 Code PS05/60B No. of Teeth 60 Torque (Nm) 1.64 Pitch Ø Dp 30 Inner Dia Da - Bore Ø D1 4 Hub/Boss Ø Dm 20 Outside Ø De 31 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£7.49
-

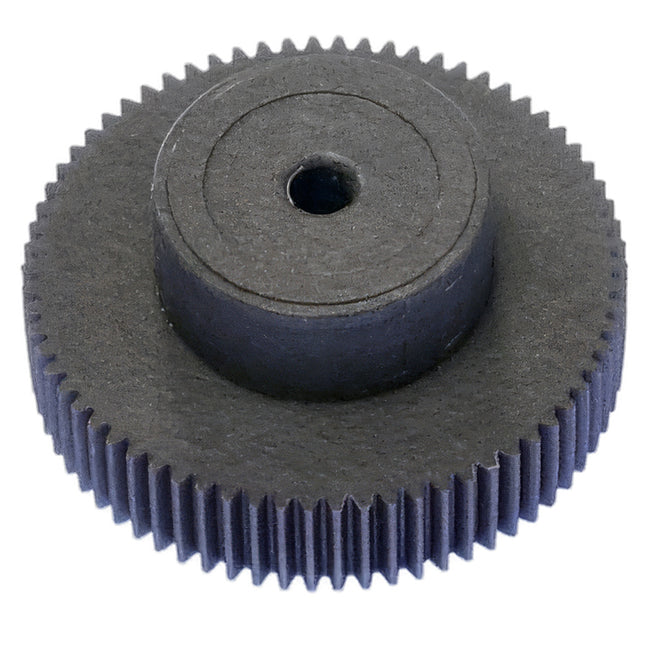

Nylon 6 Spur Gear MOD 0.5 70T, With Hub (PS05/70B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-386 Code PS05/70B No. of Teeth 70 Torque (Nm) 1.91 Pitch Ø Dp 35 Inner Dia Da - Bore Ø D1 4 Hub/Boss Ø Dm 20 Outside Ø De 36 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£8.51
-

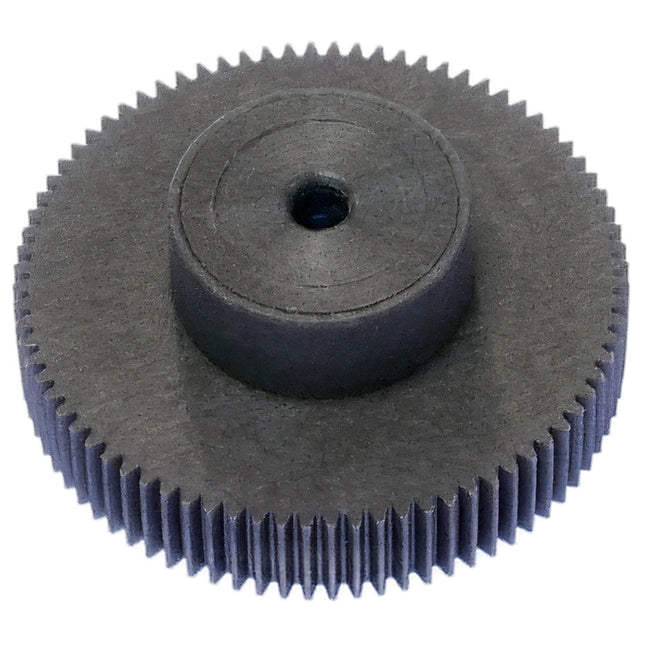

Nylon 6 Spur Gear MOD 0.5 80T, With Hub (PS05/80B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-387 Code PS05/80B No. of Teeth 80 Torque (Nm) 2.18 Pitch Ø Dp 40 Inner Dia Da - Bore Ø D1 4 Hub/Boss Ø Dm 20 Outside Ø De 41 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£9.12
-

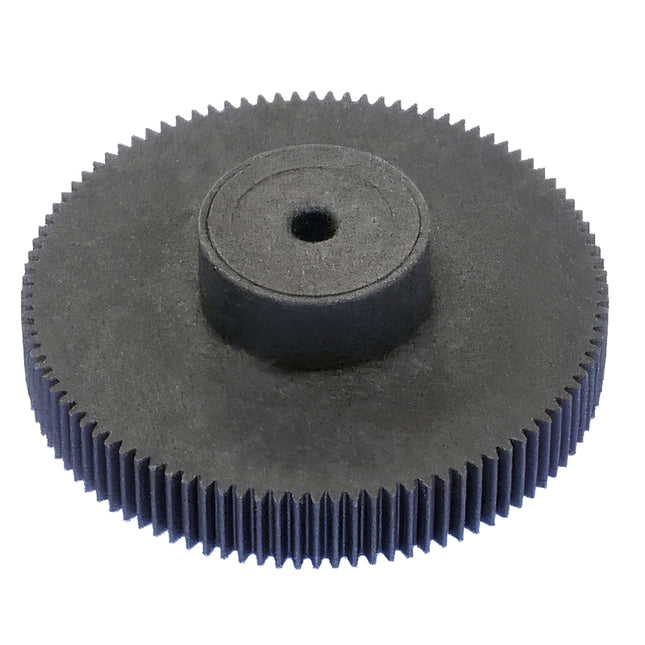

Nylon 6 Spur Gear MOD 0.5 100T, With Hub (PS05/100B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-388 Code PS05/100B No. of Teeth 100 Torque (Nm) 2.73 Pitch Ø Dp 50 Inner Dia Da - Bore Ø D1 4 Hub/Boss Ø Dm 20 Outside Ø De 51 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£9.82
-

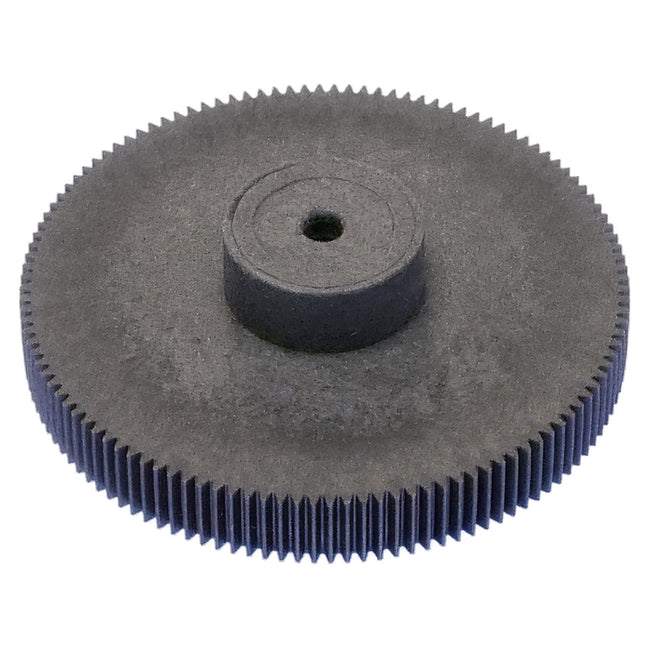

Nylon 6 Spur Gear MOD 0.5 120T, With Hub (PS05/120B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-389 Code PS05/120B No. of Teeth 120 Torque (Nm) 3.28 Pitch Ø Dp 60 Inner Dia Da - Bore Ø D1 4 Hub/Boss Ø Dm 20 Outside Ø De 61 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£10.38
-

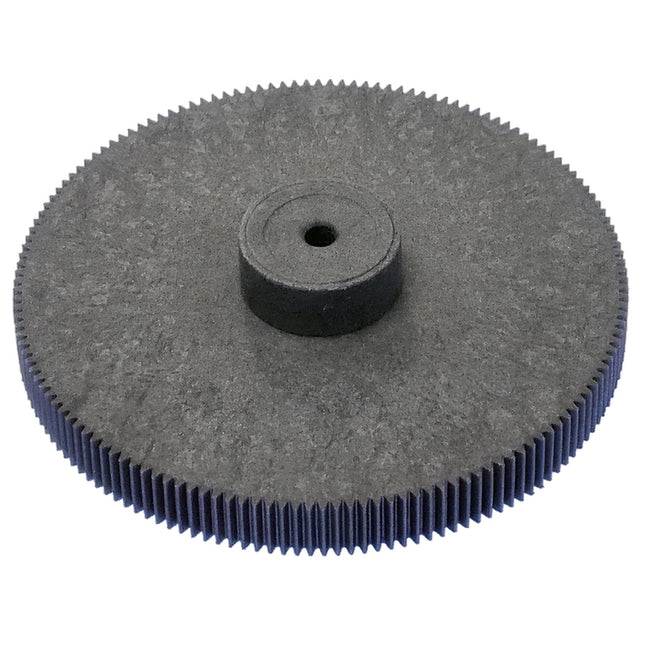

Nylon 6 Spur Gear MOD 0.5 150T, With Hub (PS05/150B)
Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm. Part No. 7701-390 Code PS05/150B No. of Teeth 150 Torque (Nm) 4.1 Pitch Ø Dp 75 Inner Dia Da - Bore Ø D1 4 Hub/Boss Ø Dm 20 Outside Ø De 76 O/A Width F 16 Face Width G 8 Every effort is taken to ensure the accuracy of the table dataDesign variations and errors although rare may occur
£11.19
-
Hostaform Hostaform Spur Gear MOD 0.5 100T, With Hub (WPS05/100B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 100T, With Hub (WPS05/100B) Part No. 7701-401 Code WPS05/100B No. of Teeth 100 Pitch Ø B 50 Bore Ø H9 6 Hub/Boss Ø D 15 Outside Ø A 51 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.15
-
Hostaform Hostaform Spur Gear MOD 0.5 120T, With Hub (WPS05/120B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 120T, With Hub (WPS05/120B) Part No. 7701-402 Code WPS05/120B No. of Teeth 120 Pitch Ø B 60 Bore Ø H9 6 Hub/Boss Ø D 15 Outside Ø A 61 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.69
-
Hostaform Hostaform Spur Gear MOD 0.5 12T, With Hub (WPS05/12B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 12T, With Hub (WPS05/12B) Part No. 7701-403 Code WPS05/12B No. of Teeth 12 Pitch Ø B 6 Bore Ø H9 2 Hub/Boss Ø D 4 Outside Ø A 7 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.50
-
Hostaform Hostaform Spur Gear MOD 0.5 13T, With Hub (WPS05/13B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 13T, With Hub (WPS05/13B) Part No. 7701-404 Code WPS05/13B No. of Teeth 13 Pitch Ø B 6.5 Bore Ø H9 2 Hub/Boss Ø D 4 Outside Ø A 7.5 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.52
-
Hostaform Hostaform Spur Gear MOD 0.5 14T, With Hub (WPS05/14B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 14T, With Hub (WPS05/14B) Part No. 7701-405 Code WPS05/14B No. of Teeth 14 Pitch Ø B 7 Bore Ø H9 2 Hub/Boss Ø D 5 Outside Ø A 8 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.66
-
Hostaform Hostaform Spur Gear MOD 0.5 15T, With Hub (WPS05/15B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 15T, With Hub (WPS05/15B) Part No. 7701-406 Code WPS05/15B No. of Teeth 15 Pitch Ø B 7.5 Bore Ø H9 3 Hub/Boss Ø D 6 Outside Ø A 8.5 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.66
-
Hostaform Hostaform Spur Gear MOD 0.5 16T, With Hub (WPS05/16B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 16T, With Hub (WPS05/16B) Part No. 7701-407 Code WPS05/16B No. of Teeth 16 Pitch Ø B 8 Bore Ø H9 3 Hub/Boss Ø D 6 Outside Ø A 9 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.66
-
Hostaform Hostaform Spur Gear MOD 0.5 17T, With Hub (WPS05/17B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 17T, With Hub (WPS05/17B) Part No. 7701-408 Code WPS05/17B No. of Teeth 17 Pitch Ø B 8.5 Bore Ø H9 3 Hub/Boss Ø D 6 Outside Ø A 9.5 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.66
-
Hostaform Hostaform Spur Gear MOD 0.5 18T, With Hub (WPS05/18B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 18T, With Hub (WPS05/18B) Part No. 7701-409 Code WPS05/18B No. of Teeth 18 Pitch Ø B 9 Bore Ø H9 4 Hub/Boss Ø D 8 Outside Ø A 10 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.68
-
Hostaform Hostaform Spur Gear MOD 0.5 19T, With Hub (WPS05/19B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 19T, With Hub (WPS05/19B) Part No. 7701-410 Code WPS05/19B No. of Teeth 19 Pitch Ø B 9.5 Bore Ø H9 4 Hub/Boss Ø D 8 Outside Ø A 10.5 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.78
-
Hostaform Hostaform Spur Gear MOD 0.5 20T, With Hub (WPS05/20B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 20T, With Hub (WPS05/20B) Part No. 7701-411 Code WPS05/20B No. of Teeth 20 Pitch Ø B 10 Bore Ø H9 4 Hub/Boss Ø D 8 Outside Ø A 11 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.78
-
Hostaform Hostaform Spur Gear MOD 0.5 21T, With Hub (WPS05/21B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 21T, With Hub (WPS05/21B) Part No. 7701-412 Code WPS05/21B No. of Teeth 21 Pitch Ø B 10.5 Bore Ø H9 4 Hub/Boss Ø D 8 Outside Ø A 11.5 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.78
-
Hostaform Hostaform Spur Gear MOD 0.5 22T, With Hub (WPS05/22B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 22T, With Hub (WPS05/22B) Part No. 7701-413 Code WPS05/22B No. of Teeth 22 Pitch Ø B 11 Bore Ø H9 4 Hub/Boss Ø D 10 Outside Ø A 12 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.78
-
Hostaform Hostaform Spur Gear MOD 0.5 23T, With Hub (WPS05/23B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 23T, With Hub (WPS05/23B) Part No. 7701-414 Code WPS05/23B No. of Teeth 23 Pitch Ø B 11.5 Bore Ø H9 4 Hub/Boss Ø D 10 Outside Ø A 12.5 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.88
-
Hostaform Hostaform Spur Gear MOD 0.5 24T, With Hub (WPS05/24B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 24T, With Hub (WPS05/24B) Part No. 7701-415 Code WPS05/24B No. of Teeth 24 Pitch Ø B 12 Bore Ø H9 4 Hub/Boss Ø D 10 Outside Ø A 13 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£0.88
-
Hostaform Hostaform Spur Gear MOD 0.5 25T, With Hub (WPS05/25B)
Metric Spur Gears in moulded POM . Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Moulded POM C to DIN 3962/63/67 Grade 12. 20° P.APOM Spur Gear Mod 0.5 25T, With Hub (WPS05/25B) Part No. 7701-416 Code WPS05/25B No. of Teeth 25 Pitch Ø B 12.5 Bore Ø H9 4 Hub/Boss Ø D 10 Outside Ø A 13.5 O/A Width F 10 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£1.04
You have seen 175 out of 1237 products
