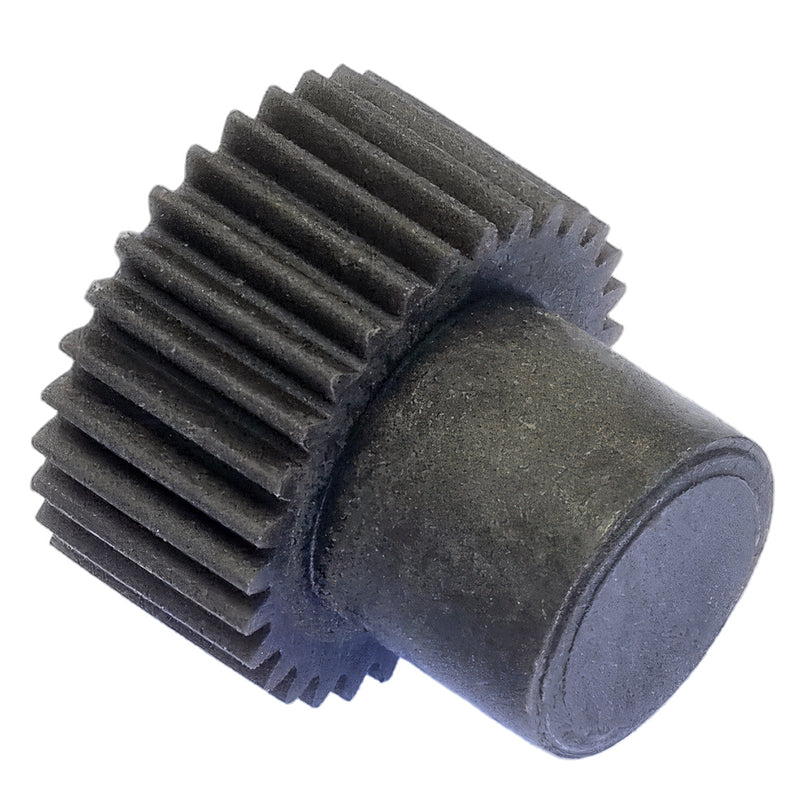

Nylon 6 Spur Gear MOD 0.5 30T, With Hub (PS05/30B)

    Description

    Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm.


    Part No. 7701-377
    Code PS05/30B
    No. of Teeth 30
    Torque (Nm) 0.82
    Pitch Ø Dp 15
    Inner Dia Da -
    Bore Ø D1 No
    Hub/Boss Ø Dm 10
    Outside Ø De 16
    O/A Width F 16
    Face Width G 8
    Every effort is taken to ensure the accuracy of the table data
    Design variations and errors although rare may occur

    Nylon 6 Spur Gear MOD 0.5 30T, With Hub (PS05/30B)

      Product form

      Part No: 7701-377

      Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm.


      Read more

      £3.76 Excl. VAT

        Description

        Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm.


        Part No. 7701-377
        Code PS05/30B
        No. of Teeth 30
        Torque (Nm) 0.82
        Pitch Ø Dp 15
        Inner Dia Da -
        Bore Ø D1 No
        Hub/Boss Ø Dm 10
        Outside Ø De 16
        O/A Width F 16
        Face Width G 8
        Every effort is taken to ensure the accuracy of the table data
        Design variations and errors although rare may occur
