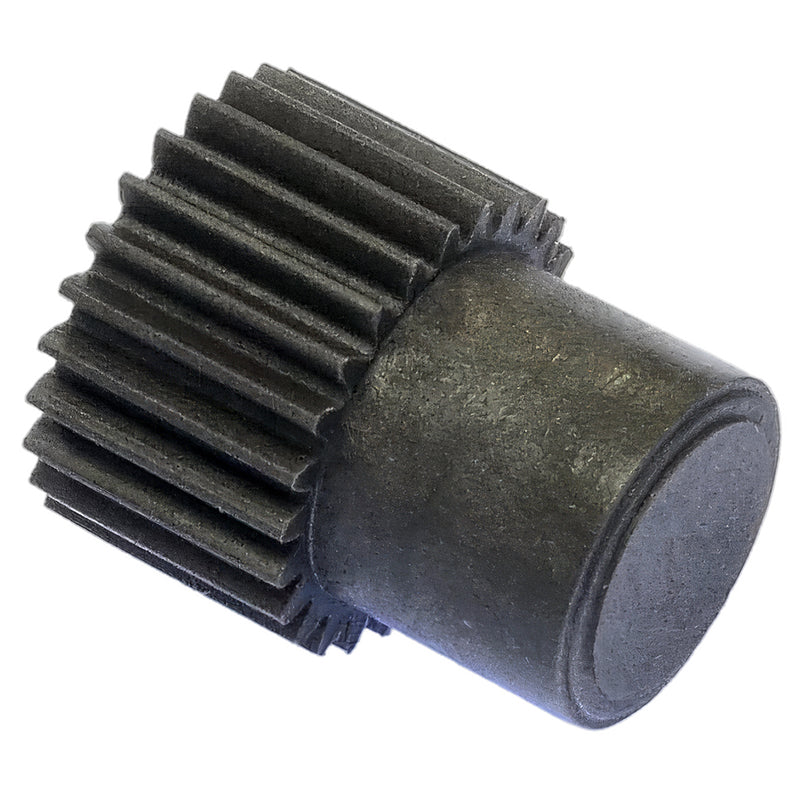

Nylon 6 Spur Gear MOD 0.5 25T, With Hub (PS05/25B)

    Description

    Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm.


    Part No. 7701-376
    Code PS05/25B
    No. of Teeth 25
    Torque (Nm) 0.68
    Pitch Ø Dp 12.5
    Inner Dia Da -
    Bore Ø D1 No
    Hub/Boss Ø Dm 10
    Outside Ø De 13.5
    O/A Width F 16
    Face Width G 8
    Every effort is taken to ensure the accuracy of the table data
    Design variations and errors although rare may occur

    Nylon 6 Spur Gear MOD 0.5 25T, With Hub (PS05/25B)

      Product form

      Part No: 7701-376

      Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm.


      Read more

      £3.75 Excl. VAT

        Description

        Metric MOD 0.5 Spur Gears in polyamide based technopolymer reinforced with glass fibre. All dimensions in mm.


        Part No. 7701-376
        Code PS05/25B
        No. of Teeth 25
        Torque (Nm) 0.68
        Pitch Ø Dp 12.5
        Inner Dia Da -
        Bore Ø D1 No
        Hub/Boss Ø Dm 10
        Outside Ø De 13.5
        O/A Width F 16
        Face Width G 8
        Every effort is taken to ensure the accuracy of the table data
        Design variations and errors although rare may occur
