Metric Spur Gears
-
Steel Spur Gear MOD 2 22 Tooth (SS20/22B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 22 Tooth Part No. 4720-022 Code SS20/22B Type B No. of Teeth 20 Pitch Ø dp 40 Bore Ø H8 12 Hub/Boss Ø dm 30 Outside Ø de 44 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.57
-
Steel Spur Gear MOD 2 24 Tooth (SS20/24B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 24 Tooth Part No. 4720-024 Code SS20/24B Type B No. of Teeth 22 Pitch Ø dp 44 Bore Ø H8 12 Hub/Boss Ø dm 30 Outside Ø de 48 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£10.70
-
Steel Spur Gear MOD 2 25 Tooth (SS20/25B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 25 Tooth Part No. 4720-025 Code SS20/25B Type B No. of Teeth 24 Pitch Ø dp 48 Bore Ø H8 12 Hub/Boss Ø dm 35 Outside Ø de 52 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.12
-
Steel Spur Gear MOD 2 26 Tooth (SS20/26B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 26 Tooth Part No. 4720-026 Code SS20/26B Type B No. of Teeth 25 Pitch Ø dp 50 Bore Ø H8 12 Hub/Boss Ø dm 35 Outside Ø de 54 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£11.05
-
Steel Spur Gear MOD 2 28 Tooth (SS20/28B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 28 Tooth Part No. 4720-028 Code SS20/28B Type B No. of Teeth 26 Pitch Ø dp 52 Bore Ø H8 12 Hub/Boss Ø dm 40 Outside Ø de 56 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£11.90
-
Steel Spur Gear MOD 2 30 Tooth (SS20/30B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 30 Tooth Part No. 4720-030 Code SS20/30B Type B No. of Teeth 28 Pitch Ø dp 56 Bore Ø H8 12 Hub/Boss Ø dm 40 Outside Ø de 60 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£14.35
-
Steel Spur Gear MOD 2 32 Tooth (SS20/32B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 32 Tooth Part No. 4720-032 Code SS20/32B Type B No. of Teeth 32 Pitch Ø dp 64 Bore Ø H8 14 Hub/Boss Ø dm 45 Outside Ø de 68 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£15.44
-
Steel Spur Gear MOD 2 40 Tooth (SS20/40B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 40 Tooth Part No. 4720-040 Code SS20/40B Type B No. of Teeth 40 Pitch Ø dp 80 Bore Ø H8 14 Hub/Boss Ø dm 50 Outside Ø de 84 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£19.79
-
Steel Spur Gear MOD 2 50 Tooth (SS20/50B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 50 Tooth Part No. 4720-050 Code SS20/50B Type B No. of Teeth 50 Pitch Ø dp 100 Bore Ø H8 16 Hub/Boss Ø dm 70 Outside Ø de 104 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£27.45
-
Steel Spur Gear MOD 2 60 Tooth (SS20/60B)
Standard to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Steel EN8, (080M40/080M46) or equivalentSteel Spur Gear MOD 2 60 Tooth Part No. 4720-060 Code SS20/60B Type B No. of Teeth 60 Pitch Ø dp 120 Bore Ø H8 16/20* Hub/Boss Ø dm 70 Outside Ø de 124 O/A Width A 35 Face Width B 20 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur *Normally 20mm bore but may be 16mm by exception
£30.39
-

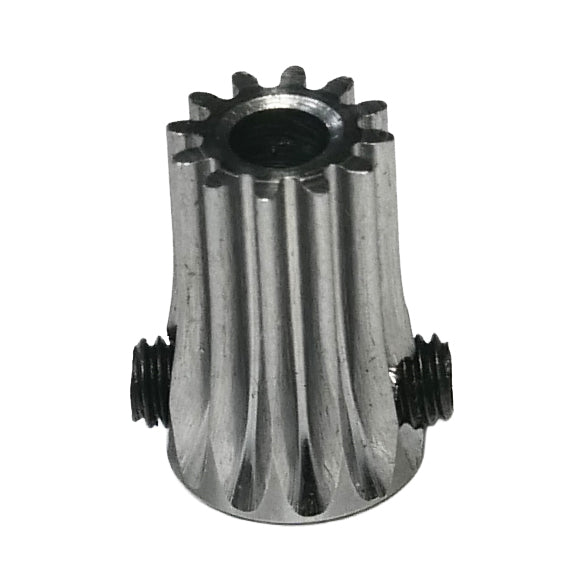

MOD 0.5, 10 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 1 x M3 for easy shaft fixingMOD 0.5, 10 Tooth Steel Model Gear. Note: Hobbed type pinion with cutter run out after the face width length Part No. 4905-010 Code SSN05/10B Type B No. of Teeth 10 Pitch Ø dp 5 Bore Ø H8 2 Hub/Boss Ø dm 7 Outside Ø de 6 O/A Width A 12 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.18
-
MOD 0.5, 12 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 12 Tooth Steel Model Gear. Note: Hobbed type pinion with cutter run out after the face width length Part No. 4905-012 Code SSN05/12B Type B No. of Teeth 12 Pitch Ø dp 6 Bore Ø H8 3 Hub/Boss Ø dm 8 Outside Ø de 7 O/A Width A 12 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.31
-
MOD 0.5, 15 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 15 Tooth Steel Model Gear. Note: Hobbed type pinion with cutter run out after the face width length Part No. 4905-015 Code SSN05/15B Type B No. of Teeth 15 Pitch Ø dp 7.5 Bore Ø H8 4 Hub/Boss Ø dm 9 Outside Ø de 8.5 O/A Width A 12 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.35
-
MOD 0.5, 20 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 20 Tooth Steel Model Gear Part No. 4905-020 Code SSN05/20B Type B No. of Teeth 20 Pitch Ø dp 10 Bore Ø H8 4 Hub/Boss Ø dm 9 Outside Ø de 11 O/A Width A 9 Face Width B 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.77
-
MOD 0.5, 25 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 25 Tooth Steel Model Gear Part No. 4905-025 Code SSN05/25B Type B No. of Teeth 25 Pitch Ø dp 12.5 Bore Ø H8 4 Hub/Boss Ø dm 9 Outside Ø de 13.5 O/A Width A 9 Face Width B 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.67
-

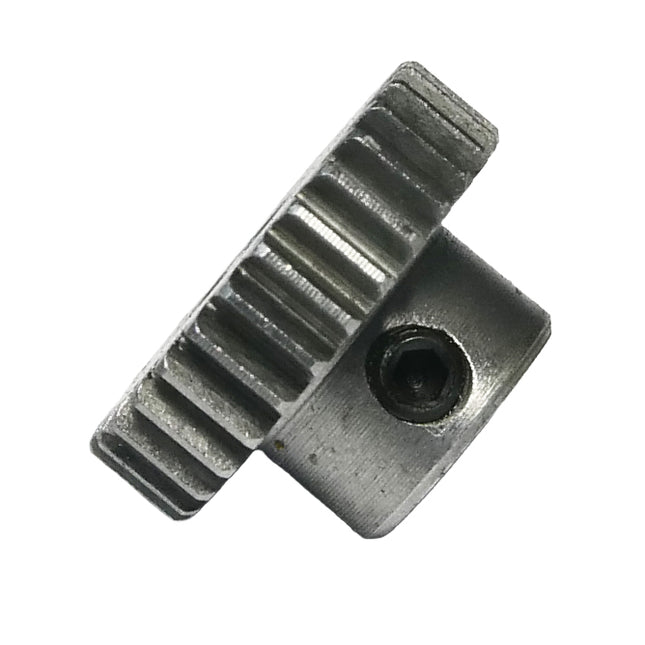

MOD 0.5, 30 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 30 Tooth Steel Model Gear Part No. 4905-030 Code SSN05/30B Type B No. of Teeth 30 Pitch Ø dp 15 Bore Ø H8 4 Hub/Boss Ø dm 9 Outside Ø de 16 O/A Width A 9 Face Width B 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.47
-
MOD 0.5, 35 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 35 Tooth Steel Model Gear Part No. 4905-035 Code SSN05/35B Type B No. of Teeth 35 Pitch Ø dp 17.5 Bore Ø H8 4 Hub/Boss Ø dm 9 Outside Ø de 18.5 O/A Width A 9 Face Width B 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.03
-
MOD 0.5, 40 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 40 Tooth Steel Model Gear Part No. 4905-040 Code SSN05/40B Type B No. of Teeth 40 Pitch Ø dp 20 Bore Ø H8 4 Hub/Boss Ø dm 9 Outside Ø de 21 O/A Width A 9 Face Width B 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.26
-
MOD 0.5, 45 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 45 Tooth Steel Model Gear Part No. 4905-045 Code SSN05/45B Type B No. of Teeth 45 Pitch Ø dp 22.5 Bore Ø H8 4 Hub/Boss Ø dm 10 Outside Ø de 23.5 O/A Width A 9 Face Width B 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.53
-
MOD 0.5, 50 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 50 Tooth Steel Model Gear Part No. 4905-050 Code SSN05/50B Type B No. of Teeth 50 Pitch Ø dp 25 Bore Ø H8 4 Hub/Boss Ø dm 10 Outside Ø de 26 O/A Width A 9 Face Width B 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.70
-
MOD 0.5, 60 Tooth Steel Model Gear
MOD 0.5 steel gears that are narrower than our standard MOD 0.5 range and are pre-tapped 2 x M3 for easy shaft fixingMOD 0.5, 60 Tooth Steel Model Gear Part No. 4905-060 Code SSN05/60B Type B No. of Teeth 60 Pitch Ø dp 30 Bore Ø H8 4 Hub/Boss Ø dm 10 Outside Ø de 31 O/A Width A 9 Face Width B 4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£10.05
-

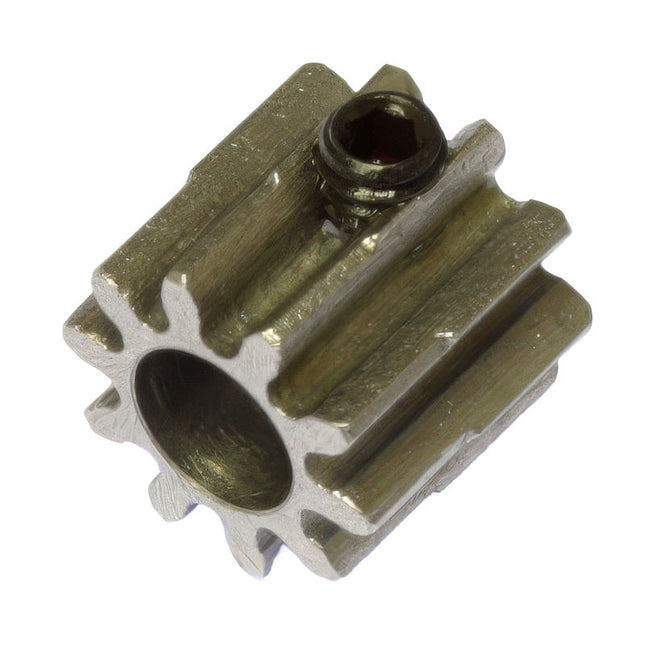

MOD 1 10 Tooth Tbot Steel Model Gear
MOD 1.0 steel gears that are narrower than our standard MOD 1.0 range and are pre-tapped 1 x M4 for easy shaft fixingMOD 1 10 Tooth Tbot Steel Model Gear. Note: hobbed type pinion with a cutter runout after the 5mm face width. Part No. 4910-110 Code SSN10/10B Type B No. of Teeth 10 Pitch Ø dp 10 Bore Ø H8 6 Hub/Boss Ø dm 12.5 Outside Ø de 12 O/A Width A 11 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.77
-

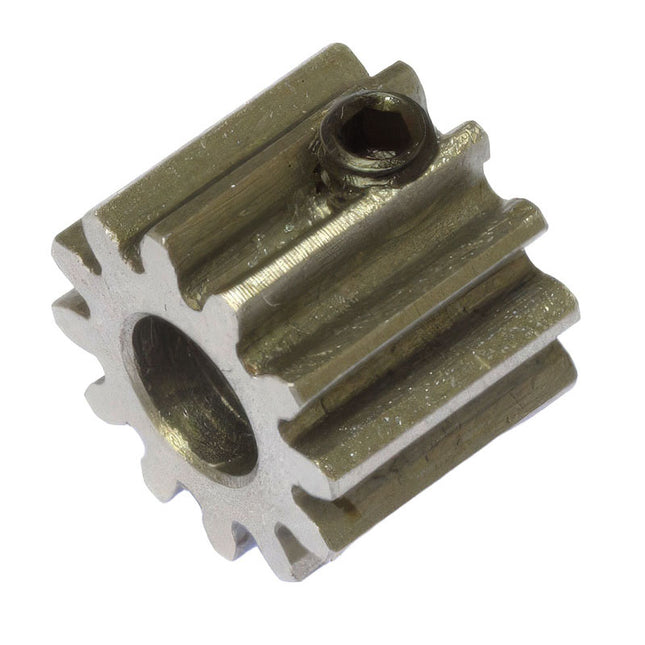

MOD 1 12 Tooth Tbot Steel Model Gear
MOD 1.0 steel gears that are narrower than our standard MOD 1.0 range and are pre-tapped 2 x M4 for easy shaft fixingMOD 1 12 Tooth Tbot Steel Model Gear. Note: hobbed type pinion with a cutter runout after the 5mm face width. Part No. 4910-112 Code SSN10/12B Type B No. of Teeth 12 Pitch Ø dp 12 Bore Ø H8 6 Hub/Boss Ø dm 14 Outside Ø de 14 O/A Width A 11 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.90
-

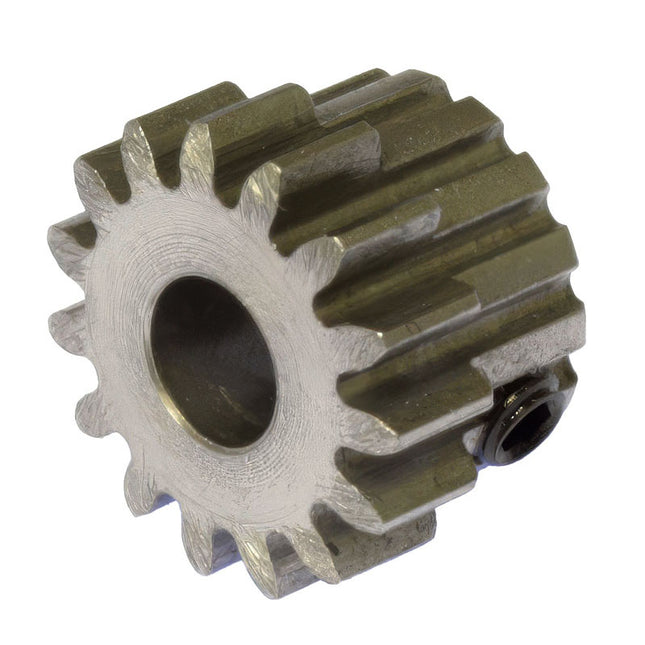

MOD 1 15 Tooth Tbot Steel Model Gear
MOD 1.0 steel gears that are narrower than our standard MOD 1.0 range and are pre-tapped 2 x M4 for easy shaft fixingMOD 1 15 Tooth Tbot Steel Model Gear Part No. 4910-115 Code SSN10/15B Type B No. of Teeth 15 Pitch Ø dp 15 Bore Ø H8 6 Hub/Boss Ø dm 14 Outside Ø de 17 O/A Width A 11 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.11
-

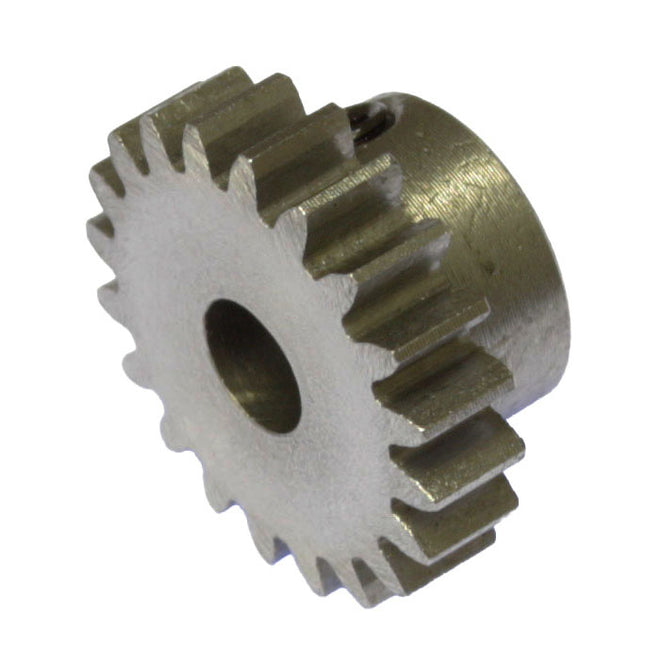

MOD 1 20 Tooth Tbot Steel Model Gear
MOD 1.0 steel gears that are narrower than our standard MOD 1.0 range and are pre-tapped 2 x M4 for easy shaft fixingMOD 1 20 Tooth Tbot Steel Model Gear Part No. 4910-120 Code SSN10/20B Type B No. of Teeth 20 Pitch Ø dp 20 Bore Ø H8 6 Hub/Boss Ø dm 14 Outside Ø de 22 O/A Width A 11 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.18
You have seen 75 out of 1237 products
