Metric Spur Gears
-

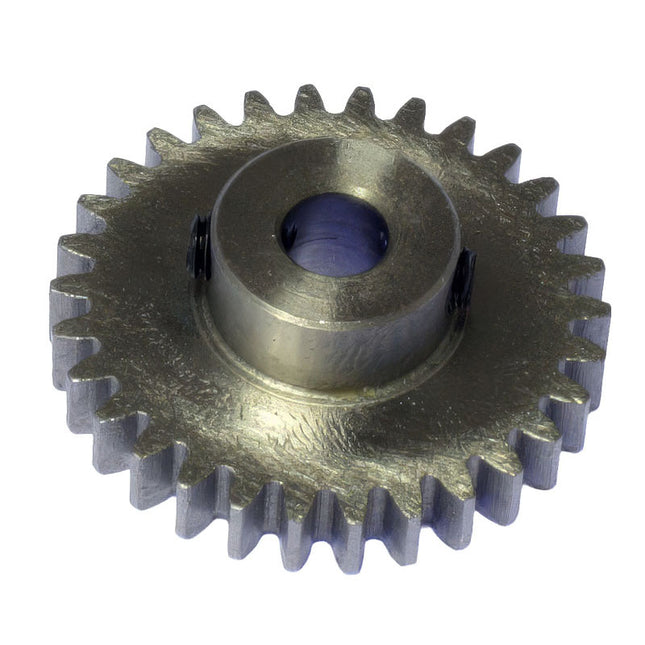

MOD 1 30 Tooth Tbot Steel Model Gear
MOD 1.0 steel gears that are narrower than our standard MOD 1.0 range and are pre-tapped 2 x M4 for easy shaft fixingMOD 1 30 Tooth Tbot Steel Model Gear Part No. 4910-130 Code SSN10/30B Type B No. of Teeth 30 Pitch Ø dp 30 Bore Ø H8 6 Hub/Boss Ø dm 14 Outside Ø de 32 O/A Width A 11 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.47
-

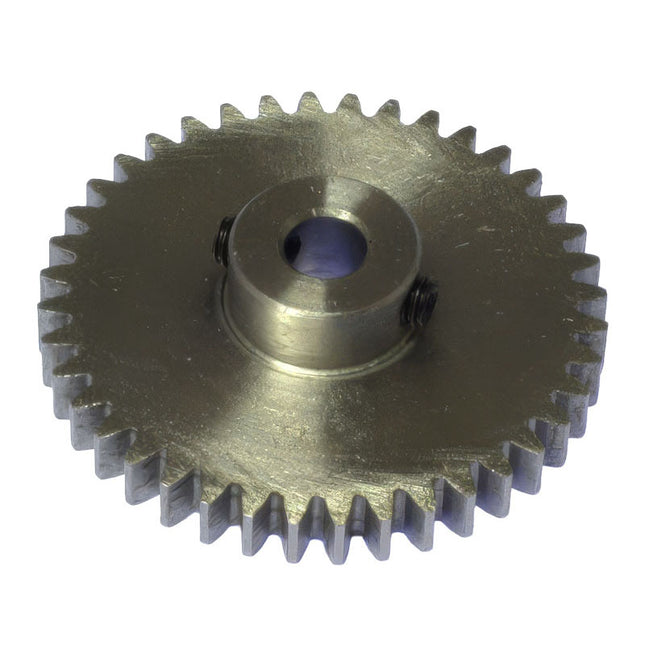

MOD 1 40 Tooth Tbot Steel Model Gear
MOD 1.0 steel gears that are narrower than our standard MOD 1.0 range and are pre-tapped 2 x M4 for easy shaft fixingMOD 1 40 Tooth Tbot Steel Model Gear Part No. 4910-140 Code SSN10/40B Type B No. of Teeth 40 Pitch Ø dp 40 Bore Ø H8 6 Hub/Boss Ø dm 14 Outside Ø de 42 O/A Width A 11 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£10.22
-

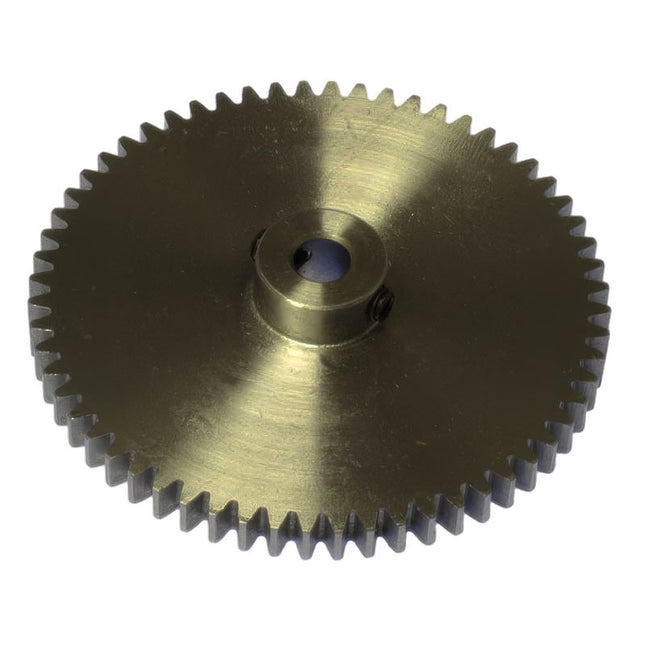

MOD 1 60 Tooth Tbot Steel Model Gear
MOD 1.0 steel gears that are narrower than our standard MOD 1.0 range and are pre-tapped 2 x M4 for easy shaft fixingMOD 1 60 Tooth Tbot Steel Model Gear Part No. 4910-160 Code SSN10/60B Type B No. of Teeth 60 Pitch Ø dp 60 Bore Ø H8 6 Hub/Boss Ø dm 14 Outside Ø de 62 O/A Width A 11 Face Width B 5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.36
-
Delrin Delrin Moulded Spur MOD 0.5 12T, With Hub (DS05/12B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 12T, With Hub (DS05/12B) Part No. 7701-301 Code DS05/12B No. of Teeth 12 Pitch Ø B 6 Bore Ø H9 2 Hub/Boss Ø D 4.5 Outside Ø A 7 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.05
-
Delrin Delrin Moulded Spur MOD 0.5 15T, With Hub (DS05/15B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 15T, With Hub (DS05/15B) Part No. 7701-302 Code DS05/15B No. of Teeth 15 Pitch Ø B 7.5 Bore Ø H9 2 Hub/Boss Ø D 4.5 Outside Ø A 8.5 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.20
-
Delrin Delrin Moulded Spur MOD 0.5 16T, With Hub (DS05/16B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 16T, With Hub (DS05/16B) Part No. 7701-303 Code DS05/16B No. of Teeth 16 Pitch Ø B 8 Bore Ø H9 3 Hub/Boss Ø D 6 Outside Ø A 9 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.20
-
Delrin Delrin Moulded Spur MOD 0.5 18T, With Hub (DS05/18B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 18T, With Hub (DS05/18B) Part No. 7701-304 Code DS05/18B No. of Teeth 18 Pitch Ø B 9 Bore Ø H9 3 Hub/Boss Ø D 6 Outside Ø A 10 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.20
-
Delrin Delrin Moulded Spur MOD 0.5 20T, With Hub (DS05/20B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 20T, With Hub (DS05/20B) Part No. 7701-305 Code DS05/20B No. of Teeth 20 Pitch Ø B 10 Bore Ø H9 4 Hub/Boss Ø D 8 Outside Ø A 11 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.20
-
Delrin Delrin Moulded Spur MOD 0.5 24T, With Hub (DS05/24B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 24T, With Hub (DS05/24B) Part No. 7701-306 Code DS05/24B No. of Teeth 24 Pitch Ø B 12 Bore Ø H9 4 Hub/Boss Ø D 8 Outside Ø A 13 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.29
-
Delrin Delrin Moulded Spur MOD 0.5 25T, With Hub (DS05/25B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 25T, With Hub (DS05/25B) Part No. 7701-307 Code DS05/25B No. of Teeth 25 Pitch Ø B 12.5 Bore Ø H9 4 Hub/Boss Ø D 8 Outside Ø A 13.5 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.16
-
Delrin Delrin Moulded Spur MOD 0.5 28T, With Hub (DS05/28B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 28T, With Hub (DS05/28B) Part No. 7701-308 Code DS05/28B No. of Teeth 28 Pitch Ø B 14 Bore Ø H9 4 Hub/Boss Ø D 8 Outside Ø A 15 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.32
-
Delrin Delrin Moulded Spur MOD 0.5 30T, With Hub (DS05/30B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 30T, With Hub (DS05/30B) Part No. 7701-309 Code DS05/30B No. of Teeth 30 Pitch Ø B 15 Bore Ø H9 5 Hub/Boss Ø D 10 Outside Ø A 16 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.34
-
Delrin Delrin Moulded Spur MOD 0.5 32T, With Hub (DS05/32B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 32T, With Hub (DS05/32B) Part No. 7701-310 Code DS05/32B No. of Teeth 32 Pitch Ø B 16 Bore Ø H9 5 Hub/Boss Ø D 10 Outside Ø A 17 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.34
-
Delrin Delrin Moulded Spur MOD 0.5 35T, With Hub (DS05/35B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 35T, With Hub (DS05/35B) Part No. 7701-311 Code DS05/35B No. of Teeth 35 Pitch Ø B 17.5 Bore Ø H9 5 Hub/Boss Ø D 10 Outside Ø A 18.5 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.36
-
Delrin Delrin Moulded Spur MOD 0.5 36T, With Hub (DS05/36B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 36T, With Hub (DS05/36B) Part No. 7701-312 Code DS05/36B No. of Teeth 36 Pitch Ø B 18 Bore Ø H9 5 Hub/Boss Ø D 10 Outside Ø A 19 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.36
-
Delrin Delrin Moulded Spur MOD 0.5 40T, With Hub (DS05/40B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 40T, With Hub (DS05/40B) Part No. 7701-313 Code DS05/40B No. of Teeth 40 Pitch Ø B 20 Bore Ø H9 5 Hub/Boss Ø D 12 Outside Ø A 21 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.38
-
Delrin Delrin Moulded Spur MOD 0.5 45T, With Hub (DS05/45B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 45T, With Hub (DS05/45B) Part No. 7701-314 Code DS05/45B No. of Teeth 45 Pitch Ø B 22.5 Bore Ø H9 5 Hub/Boss Ø D 12 Outside Ø A 23.5 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.38
-
Delrin Delrin Moulded Spur MOD 0.5 48T, With Hub (DS05/48B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 48T, With Hub (DS05/48B) Part No. 7701-315 Code DS05/48B No. of Teeth 48 Pitch Ø B 24 Bore Ø H9 5 Hub/Boss Ø D 12 Outside Ø A 25 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.39
-
Delrin Delrin Moulded Spur MOD 0.5 50T, With Hub (DS05/50B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 50T, With Hub (DS05/50B) Part No. 7701-316 Code DS05/50B No. of Teeth 50 Pitch Ø B 25 Bore Ø H9 5 Hub/Boss Ø D 12 Outside Ø A 26 O/A Width F 7 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.41
-
Delrin Delrin Moulded Spur MOD 0.5 56T, With Hub (DS05/56B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 56T, With Hub (DS05/56B) Part No. 7701-317 Code DS05/56B No. of Teeth 56 Pitch Ø B 28 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 29 O/A Width F 8 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.36
-
Delrin Delrin Moulded Spur MOD 0.5 60T, With Hub (DS05/60B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 60T, With Hub (DS05/60B) Part No. 7701-318 Code DS05/60B No. of Teeth 60 Pitch Ø B 30 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 31 O/A Width F 8 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.45
-
Delrin Delrin Moulded Spur MOD 0.5 64T, With Hub (DS05/64B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 64T, With Hub (DS05/64B) Part No. 7701-319 Code DS05/64B No. of Teeth 64 Pitch Ø B 32 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 33 O/A Width F 8 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.52
-
Delrin Delrin Moulded Spur MOD 0.5 70T, With Hub (DS05/70B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 70T, With Hub (DS05/70B) Part No. 7701-320 Code DS05/70B No. of Teeth 70 Pitch Ø B 35 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 36 O/A Width F 8 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.59
-
Delrin Delrin Moulded Spur MOD 0.5 72T, With Hub (DS05/72B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 72T, With Hub (DS05/72B) Part No. 7701-321 Code DS05/72B No. of Teeth 72 Pitch Ø B 36 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 37 O/A Width F 8 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£2.83
-
Delrin Delrin Moulded Spur MOD 0.5 80T, With Hub (DS05/80B)
Metric Spur Gears in moulded Delrin 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN 500. to gear quality AGMA 7. 20° P.ADelrin Moulded Spur Mod 0.5 80T, With Hub (DS05/80B) Part No. 7701-322 Code DS05/80B No. of Teeth 80 Pitch Ø B 40 Bore Ø H9 6 Hub/Boss Ø D 14 Outside Ø A 41 O/A Width F 8 Face Width G 3 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.26
You have seen 100 out of 1237 products
