Metric Pilot Bore Timing Pulleys
-
Aluminium Pulley T10/32T-2 For 16mm Belt (31T10/32-2)
Timing Pulleys T10 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/32T-2 For 16mm Belt (31T10/32-2) Part No. 7802-215 Code 31T10/32-2 Type 1F No. teeth 32 De 100 Dp 102 Df 106 Dm 65 F 21 L 31 Bore (d) 10 Max. bore 88 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£24.62
-
Aluminium Pulley T10/36T-2 For 16mm Belt (31T10/36-2)
Timing Pulleys T10 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/36T-2 For 16mm Belt (31T10/36-2) Part No. 7802-216 Code 31T10/36-2 Type 1F No. teeth 36 De 113 Dp 115 Df 119 Dm 70 F 21 L 31 Bore (d) 10 Max. bore 98 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£29.02
-
Aluminium Pulley T10/40T-2 For 16mm Belt (31T10/40-2)
Timing Pulleys T10 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/40T-2 For 16mm Belt (31T10/40-2) Part No. 7802-217 Code 31T10/40-2 Type 1F No. teeth 40 De 125 Dp 127 Df 131 Dm 80 F 21 L 31 Bore (d) 10 Max. bore 110 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£36.12
-
Aluminium Pulley T10/44T-0 For 16mm Belt (31T10/44-0)
Timing Pulleys T10 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/44T-0 For 16mm Belt (31T10/44-0) Part No. 7802-218 Code 31T10/44-0 Type 2 No. teeth 44 De 138 Dp 140 Df Dm 88 F 21 L 31 Bore (d) 10 Max. bore 118 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£45.61
-
Aluminium Pulley T10/48T-0 For 16mm Belt (31T10/48-0)
Timing Pulleys T10 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/48T-0 For 16mm Belt (31T10/48-0) Part No. 7802-219 Code 31T10/48-0 Type 2 No. teeth 48 De 151 Dp 153 Df Dm 95 F 21 L 31 Bore (d) 16 Max. bore 124 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£49.01
-
Aluminium Pulley T10/60T-0 For 16mm Belt (31T10/60-0)
Timing Pulleys T10 for 16mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/60T-0 For 16mm Belt (31T10/60-0) Part No. 7802-220 Code 31T10/60-0 Type 2 No. teeth 60 De 189 Dp 190 Df Dm 110 F 21 L 31 Bore (d) 16 Max. bore 162 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£75.19
-
Aluminium Pulley T10/12T-2 For 25mm Belt (40T10/12-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/12T-2 For 25mm Belt (40T10/12-2) Part No. 7802-221 Code 40T10/12-2 Type 1F No. teeth 12 De 36.4 Dp 38.2 Df 42 Dm 28 F 30 L 40 Bore (d) 6 Max. bore 24 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.64
-
Aluminium Pulley T10/14T-2 For 25mm Belt (40T10/14-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/14T-2 For 25mm Belt (40T10/14-2) Part No. 7802-222 Code 40T10/14-2 Type 1F No. teeth 14 De 42.7 Dp 44.6 Df 48 Dm 32 F 30 L 40 Bore (d) 8 Max. bore 30 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.76
-

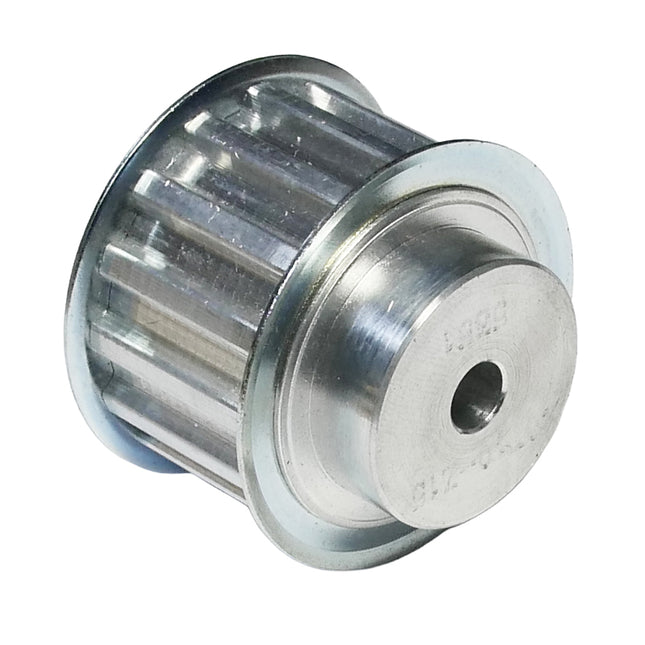

Aluminium Pulley T10/15T-2 For 25mm Belt (40T10/15-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/15T-2 For 25mm Belt (40T10/15-2) Part No. 7802-223 Code 40T10/15-2 Type 1F No. teeth 15 De 45.9 Dp 47.8 Df 51 Dm 32 F 30 L 40 Bore (d) 8 Max. bore 34 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.38
-
Aluminium Pulley T10/16T-2 For 25mm Belt (40T10/16-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/16T-2 For 25mm Belt (40T10/16-2) Part No. 7802-224 Code 40T10/16-2 Type 1F No. teeth 16 De 49.1 Dp 50.9 Df 54 Dm 35 F 30 L 40 Bore (d) 8 Max. bore 36 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£10.36
-
Aluminium Pulley T10/18T-2 For 25mm Belt (40T10/18-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/18T-2 For 25mm Belt (40T10/18-2) Part No. 7802-225 Code 40T10/18-2 Type 1F No. teeth 18 De 55.5 Dp 57.3 Df 60 Dm 40 F 30 L 40 Bore (d) 8 Max. bore 44 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£11.96
-
Aluminium Pulley T10/19T-2 For 25mm Belt (40T10/19-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/19T-2 For 25mm Belt (40T10/19-2) Part No. 7802-226 Code 40T10/19-2 Type 1F No. teeth 19 De 58.7 Dp 60.5 Df 66 Dm 44 F 30 L 40 Bore (d) 8 Max. bore 46 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.08
-
Aluminium Pulley T10/20T-2 For 25mm Belt (40T10/20-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/20T-2 For 25mm Belt (40T10/20-2) Part No. 7802-227 Code 40T10/20-2 Type 1F No. teeth 20 De 61.8 Dp 63.7 Df 66 Dm 46 F 30 L 40 Bore (d) 8 Max. bore 50 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.97
-
Aluminium Pulley T10/22T-2 For 25mm Belt (40T10/22-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/22T-2 For 25mm Belt (40T10/22-2) Part No. 7802-228 Code 40T10/22-2 Type 1F No. teeth 22 De 68.2 Dp 70 Df 75 Dm 52 F 30 L 40 Bore (d) 8 Max. bore 56 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£16.90
-
Aluminium Pulley T10/24T-2 For 25mm Belt (40T10/24-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/24T-2 For 25mm Belt (40T10/24-2) Part No. 7802-229 Code 40T10/24-2 Type 1F No. teeth 24 De 74.6 Dp 76.4 Df 83 Dm 58 F 30 L 40 Bore (d) 8 Max. bore 62 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£19.12
-
Aluminium Pulley T10/25T-2 For 25mm Belt (40T10/25-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/25T-2 For 25mm Belt (40T10/25-2) Part No. 7802-230 Code 40T10/25-2 Type 1F No. teeth 25 De 77.8 Dp 79.6 Df 83 Dm 60 F 30 L 40 Bore (d) 8 Max. bore 66 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£19.22
-
Aluminium Pulley T10/26T-2 For 25mm Belt (40T10/26-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/26T-2 For 25mm Belt (40T10/26-2) Part No. 7802-231 Code 40T10/26-2 Type 1F No. teeth 26 De 80.9 Dp 82.8 Df 87 Dm 60 F 30 L 40 Bore (d) 8 Max. bore 68 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£21.25
-
Aluminium Pulley T10/27T-2 For 25mm Belt (40T10/27-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/27T-2 For 25mm Belt (40T10/27-2) Part No. 7802-232 Code 40T10/27-2 Type 1F No. teeth 27 De 84.1 Dp 85.9 Df 91 Dm 60 F 30 L 40 Bore (d) 8 Max. bore 72 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£23.46
-
Aluminium Pulley T10/28T-2 For 25mm Belt (40T10/28-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/28T-2 For 25mm Belt (40T10/28-2) Part No. 7802-233 Code 40T10/28-2 Type 1F No. teeth 28 De 87.3 Dp 89.1 Df 93 Dm 60 F 30 L 40 Bore (d) 8 Max. bore 76 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£23.60
-
Aluminium Pulley T10/30T-2 For 25mm Belt (40T10/30-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/30T-2 For 25mm Belt (40T10/30-2) Part No. 7802-234 Code 40T10/30-2 Type 1F No. teeth 30 De 93.7 Dp 95.5 Df 97 Dm 60 F 30 L 40 Bore (d) 8 Max. bore 82 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£28.08
-
Aluminium Pulley T10/32T-2 For 25mm Belt (40T10/32-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/32T-2 For 25mm Belt (40T10/32-2) Part No. 7802-235 Code 40T10/32-2 Type 1F No. teeth 32 De 100 Dp 102 Df 106 Dm 65 F 30 L 40 Bore (d) 10 Max. bore 88 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£30.70
-
Aluminium Pulley T10/36T-2 For 25mm Belt (40T10/36-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/36T-2 For 25mm Belt (40T10/36-2) Part No. 7802-236 Code 40T10/36-2 Type 1F No. teeth 36 De 113 Dp 115 Df 119 Dm 70 F 30 L 40 Bore (d) 10 Max. bore 98 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£36.34
-
Aluminium Pulley T10/40T-2 For 25mm Belt (40T10/40-2)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/40T-2 For 25mm Belt (40T10/40-2) Part No. 7802-237 Code 40T10/40-2 Type 1F No. teeth 40 De 125 Dp 127 Df 131 Dm 80 F 30 L 40 Bore (d) 10 Max. bore 110 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£45.25
-
Aluminium Pulley T10/44T-0 For 25mm Belt (40T10/44-0)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/44T-0 For 25mm Belt (40T10/44-0) Part No. 7802-238 Code 40T10/44-0 Type 2 No. teeth 44 De 138 Dp 140 Df Dm 88 F 30 L 40 Bore (d) 10 Max. bore 118 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£53.25
-
Aluminium Pulley T10/48T-0 For 25mm Belt (40T10/48-0)
Timing Pulleys T10 for 25mm wide belt. Centre drilled or Pilot Bore in aluminium with zinc plated Steel Flange.Aluminium Pulley T10/48T-0 For 25mm Belt (40T10/48-0) Part No. 7802-239 Code 40T10/48-0 Type 2 No. teeth 48 De 151 Dp 153 Df Dm 95 F 30 L 40 Bore (d) 16 Max. bore 124 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£58.55
You have seen 125 out of 292 products
