Drivelock Bushes
-
Drivelock 16 40x65mm (DL16/40)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 40x65mm (DL16/40) Part No. 7930-316 Code DL16/40 d (h8) (mm) 40 D (mm) 65 D1 (mm) 74 M (mm) M6 L (mm) 34 B (mm) 28 A (mm) 22 Ts (Nm) 17 T (Nm) 941 F (kN) 47 p N/mm2 102 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£14.28
-
Drivelock 16 42x75 mm (DL16/42)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 42x75 mm (DL16/42) Part No. 7930-317 Code DL16/42 d (h8) (mm) 42 D (mm) 75 D1 (mm) 84 M (mm) M8 L (mm) 41 B (mm) 33 A (mm) 25 Ts (Nm) 41 T (Nm) 1599 F (kN) 75 p N/mm2 132 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£15.98
-
Drivelock 16 45x75mm (DL16/45)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 45x75mm (DL16/45) Part No. 7930-318 Code DL16/45 d (h8) (mm) 45 D (mm) 75 D1 (mm) 84 M (mm) M8 L (mm) 41 B (mm) 33 A (mm) 25 Ts (Nm) 41 T (Nm) 1716 F (kN) 75 p N/mm2 132 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£16.73
-
Drivelock 16 50x80mm (DL16/50)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 50x80mm (DL16/50) Part No. 7930-319 Code DL16/50 d (h8) (mm) 50 D (mm) 80 D1 (mm) 89 M (mm) M8 L (mm) 41 B (mm) 33 A (mm) 25 Ts (Nm) 41 T (Nm) 1893 F (kN) 75 p N/mm2 127 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£17.80
-
Drivelock 16 55x85mm (DL16/55)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 55x85mm (DL16/55) Part No. 7930-320 Code DL16/55 d (h8) (mm) 55 D (mm) 85 D1 (mm) 94 M (mm) M8 L (mm) 41 B (mm) 33 A (mm) 25 Ts (Nm) 41 T (Nm) 2403 F (kN) 86 p N/mm2 132 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£19.44
-
Drivelock 16 60x90 mm (DL16/60)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 60x90 mm (DL16/60) Part No. 7930-321 Code DL16/60 d (h8) (mm) 60 D (mm) 90 D1 (mm) 99 M (mm) M8 L (mm) 41 B (mm) 33 A (mm) 25 Ts (Nm) 41 T (Nm) 2648 F (kN) 86 p N/mm2 122 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£20.85
-
Drivelock 16 65x95mm (DL16/65)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 65x95mm (DL16/65) Part No. 7930-322 Code DL16/65 d (h8) (mm) 65 D (mm) 95 D1 (mm) 104 M (mm) M8 L (mm) 41 B (mm) 33 A (mm) 25 Ts (Nm) 41 T (Nm) 3188 F (kN) 98 p N/mm2 132 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£23.82
-
Drivelock 16 70x110mm (DL16/70)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 70x110mm (DL16/70) Part No. 7930-323 Code DL16/70 d (h8) (mm) 70 D (mm) 110 D1 (mm) 119 M (mm) M10 L (mm) 50 B (mm) 40 A (mm) 30 Ts (Nm) 83 T (Nm) 4905 F (kN) 138 p N/mm2 127 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£31.50
-
Drivelock 16 75x115mm (DL16/75)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 75x115mm (DL16/75) Part No. 7930-324 Code DL16/75 d (h8) (mm) 75 D (mm) 115 D1 (mm) 124 M (mm) M10 L (mm) 50 B (mm) 40 A (mm) 30 Ts (Nm) 83 T (Nm) 5150 F (kN) 138 p N/mm2 122 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£34.51
-
Drivelock 16 80x120mm (DL16/80)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 80x120mm (DL16/80) Part No. 7930-325 Code DL16/80 d (h8) (mm) 80 D (mm) 120 D1 (mm) 129 M (mm) M10 L (mm) 50 B (mm) 40 A (mm) 30 Ts (Nm) 83 T (Nm) 5490 F (kN) 138 p N/mm2 132 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£36.25
-
Drivelock 16 85x125mm (DL16/85)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 85x125mm (DL16/85) Part No. 7930-326 Code DL16/85 d (h8) (mm) 85 D (mm) 125 D1 (mm) 134 M (mm) M10 L (mm) 50 B (mm) 40 A (mm) 30 Ts (Nm) 83 T (Nm) 6620 F (kN) 155 p N/mm2 127 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£38.51
-
Drivelock 16 90x130mm (DL16/90)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 90x130mm (DL16/90) Part No. 7930-327 Code DL16/90 d (h8) (mm) 90 D (mm) 130 D1 (mm) 139 M (mm) M10 L (mm) 50 B (mm) 40 A (mm) 30 Ts (Nm) 83 T (Nm) 6960 F (kN) 155 p N/mm2 137 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£41.24
-
Drivelock 16 95x135 mm (DL16/95)
Drivelock 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mmDrivelock 16 95x135 mm (DL16/95) Part No. 7930-328 Code DL16/95 d (h8) (mm) 95 D (mm) 135 D1 (mm) 144 M (mm) M10 L (mm) 50 B (mm) 40 A (mm) 30 Ts (Nm) 83 T (Nm) 8190 F (kN) 172 p N/mm2 145 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£43.86
-
Drivelock 19 24x50mm (DL19/24)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 24x50mm (DL19/24) Part No. 7930-401 Code DL19/24 d2 (mm) 24 D (mm) 50 d1 (mm) 19 M(Screws) M5 I (mm) 14 B (mm) 19.5 L (mm) 23 Ts Nm 4 T Nm 170 F kN 25 Part No. 7930-401 Code DL19/24 d2 (mm) 24 D (mm) 50 d1 (mm) 20 M(Screws) M5 I (mm) 14 B (mm) 19.5 L (mm) 23 Ts Nm 4 T Nm 210 F kN 29 Part No. 7930-401 Code DL19/24 d2 (mm) 24 D (mm) 50 d1 (mm) 21 M(Screws) M5 I (mm) 14 B (mm) 19.5 L (mm) 23 Ts Nm 4 T Nm 250 F kN 29 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£27.23
-
Drivelock 19 30x60mm (DL19/30)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 30x60mm (DL19/30) Part No. 7930-402 Code DL19/30 d2 (mm) 30 D (mm) 60 d1 (mm) 24 M(Screws) M5 I (mm) 16 B (mm) 21.5 L (mm) 25 Ts Nm 4 T Nm 300 F kN 29 Part No. 7930-402 Code DL19/30 d2 (mm) 30 D (mm) 60 d1 (mm) 25 M(Screws) M5 I (mm) 16 B (mm) 21.5 L (mm) 25 Ts Nm 4 T Nm 340 F kN 31 Part No. 7930-402 Code DL19/30 d2 (mm) 30 D (mm) 60 d1 (mm) 26 M(Screws) M5 I (mm) 16 B (mm) 21.5 L (mm) 25 Ts Nm 4 T Nm 380 F kN 33 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£29.34
-
Drivelock 19 36x72mm (DL19/36)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 36x72mm (DL19/36) Part No. 7930-403 Code DL19/36 d2 (mm) 36 D (mm) 72 d1 (mm) 28 M(Screws) M6 I (mm) 18 B (mm) 23.5 L (mm) 27.5 Ts Nm 12 T Nm 440 F kN 50 Part No. 7930-403 Code DL19/36 d2 (mm) 36 D (mm) 72 d1 (mm) 30 M(Screws) M6 I (mm) 18 B (mm) 23.5 L (mm) 27.5 Ts Nm 12 T Nm 570 F kN 58 Part No. 7930-403 Code DL19/36 d2 (mm) 36 D (mm) 72 d1 (mm) 31 M(Screws) M6 I (mm) 18 B (mm) 23.5 L (mm) 27.5 Ts Nm 12 T Nm 630 F kN 58 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£31.88
-
Drivelock 19 44x80mm (DL19/44)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 44x80mm (DL19/44) Part No. 7930-404 Code DL19/44 d2 (mm) 44 D (mm) 80 d1 (mm) 32 M(Screws) M6 I (mm) 20 B (mm) 25.5 L (mm) 29.5 Ts Nm 12 T Nm 620 F kN 64 Part No. 7930-404 Code DL19/44 d2 (mm) 44 D (mm) 80 d1 (mm) 35 M(Screws) M6 I (mm) 20 B (mm) 25.5 L (mm) 29.5 Ts Nm 12 T Nm 780 F kN 74 Part No. 7930-404 Code DL19/44 d2 (mm) 44 D (mm) 80 d1 (mm) 36 M(Screws) M6 I (mm) 20 B (mm) 25.5 L (mm) 29.5 Ts Nm 12 T Nm 860 F kN 77 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£34.85
-
Drivelock 19 50x90mm (DL19/50)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 50x90mm (DL19/50) Part No. 7930-405 Code DL19/50 d2 (mm) 50 D (mm) 90 d1 (mm) 38 M(Screws) M6 I (mm) 22 B (mm) 27.5 L (mm) 31.5 Ts Nm 12 T Nm 940 F kN 79 Part No. 7930-405 Code DL19/50 d2 (mm) 50 D (mm) 90 d1 (mm) 40 M(Screws) M6 I (mm) 22 B (mm) 27.5 L (mm) 31.5 Ts Nm 12 T Nm 1160 F kN 86 Part No. 7930-405 Code DL19/50 d2 (mm) 50 D (mm) 90 d1 (mm) 42 M(Screws) M6 I (mm) 22 B (mm) 27.5 L (mm) 31.5 Ts Nm 12 T Nm 1380 F kN 92 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£39.94
-
Drivelock 19 55x100mm (DL19/55)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 55x100mm (DL19/55) Part No. 7930-406 Code DL19/55 d2 (mm) 55 D (mm) 100 d1 (mm) 42 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 1160 F kN 79 Part No. 7930-406 Code DL19/55 d2 (mm) 55 D (mm) 100 d1 (mm) 45 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 1520 F kN 88 Part No. 7930-406 Code DL19/55 d2 (mm) 55 D (mm) 100 d1 (mm) 48 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 1880 F kN 97 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£45.46
-
Drivelock 19 62x110mm (DL19/62)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 62x110mm (DL19/62) Part No. 7930-407 Code DL19/62 d2 (mm) 62 D (mm) 110 d1 (mm) 48 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 1850 F kN 100 Part No. 7930-407 Code DL19/62 d2 (mm) 62 D (mm) 110 d1 (mm) 50 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 2200 F kN 111 Part No. 7930-407 Code DL19/62 d2 (mm) 62 D (mm) 110 d1 (mm) 52 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 2400 F kN 117 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£50.55
-
Drivelock 19 68x115mm (DL19/68)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 68x115mm (DL19/68) Part No. 7930-408 Code DL19/68 d2 (mm) 68 D (mm) 115 d1 (mm) 50 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 2000 F kN 97 Part No. 7930-408 Code DL19/68 d2 (mm) 68 D (mm) 115 d1 (mm) 55 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 2500 F kN 106 Part No. 7930-408 Code DL19/68 d2 (mm) 68 D (mm) 115 d1 (mm) 60 M(Screws) M6 I (mm) 23 B (mm) 30.5 L (mm) 34.5 Ts Nm 12 T Nm 3150 F kN 120 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£53.54
-
Drivelock 19 75x138mm (DL19/75)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 75x138mm (DL19/75) Part No. 7930-409 Code DL19/75 d2 (mm) 75 D (mm) 138 d1 (mm) 55 M(Screws) M8 I (mm) 25 B (mm) 32.5 L (mm) 37.5 Ts Nm 30 T Nm 2500 F kN 119 Part No. 7930-409 Code DL19/75 d2 (mm) 75 D (mm) 138 d1 (mm) 60 M(Screws) M8 I (mm) 25 B (mm) 32.5 L (mm) 37.5 Ts Nm 30 T Nm 3200 F kN 137 Part No. 7930-409 Code DL19/75 d2 (mm) 75 D (mm) 138 d1 (mm) 65 M(Screws) M8 I (mm) 25 B (mm) 32.5 L (mm) 37.5 Ts Nm 30 T Nm 3950 F kN 155 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£62.88
-

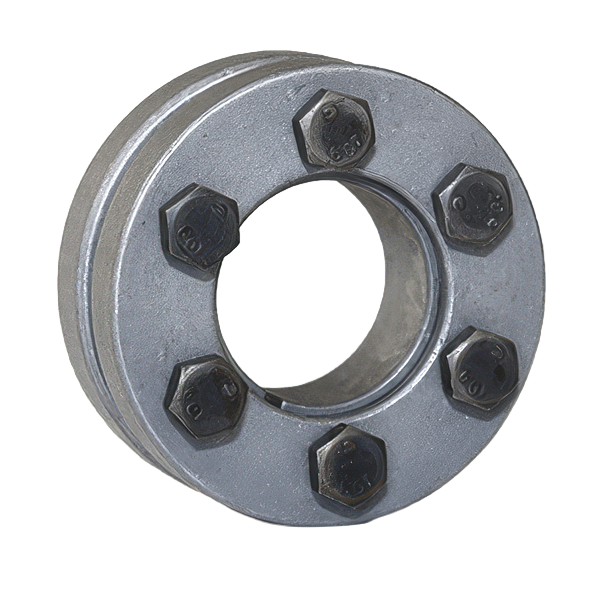

Drivelock 19 80x145 mm (DL19/80)
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mmDrivelock 19 80x145 mm (DL19/80) Part No. 7930-410 Code DL19/80 d2 (mm) 80 D (mm) 145 d1 (mm) 60 M(Screws) M8 I (mm) 25 B (mm) 32.5 L (mm) 37.5 Ts Nm 30 T Nm 3200 F kN 124 Part No. 7930-410 Code DL19/80 d2 (mm) 80 D (mm) 145 d1 (mm) 65 M(Screws) M8 I (mm) 25 B (mm) 32.5 L (mm) 37.5 Ts Nm 30 T Nm 3900 F kN 140 Part No. 7930-410 Code DL19/80 d2 (mm) 80 D (mm) 145 d1 (mm) 70 M(Screws) M8 I (mm) 25 B (mm) 32.5 L (mm) 37.5 Ts Nm 30 T Nm 4600 F kN 158 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£67.97
-
Drivelock 40 100x145mm (DL40/100)
Drivelock 40 Bushes are self centering, offer high torques 290 to 66800 Nm and are available in bores from 19 to 220mmDrivelock 40 100x145mm (DL40/100) Part No. 7930-501 Code DL40/100 d (h8) (mm) 100 D (mm) 145 L1 (mm) 26 L (mm) 33 M (screws) 47 H(mm) M12 Ts Nm 127 T (Nm) 9460 F (kN) 189 p N/mm2 133 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£47.60
-
Drivelock 40 110x155 mm (DL40/110)
Drivelock 40 Bushes are self centering, offer high torques 290 to 66800 Nm and are available in bores from 19 to 220mmDrivelock 40 110x155 mm (DL40/110) Part No. 7930-502 Code DL40/110 d (h8) (mm) 110 D (mm) 155 L1 (mm) 26 L (mm) 33 M (screws) 47 H(mm) M12 Ts Nm 127 T (Nm) 10490 F (kN) 189 p N/mm2 122 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£51.98
You have seen 125 out of 326 products
