Description
Drivelock 19 Bushes are self centering, offer high torques 170 to 39000 Nm, external clamping and are available in bores from 24 to 165mm

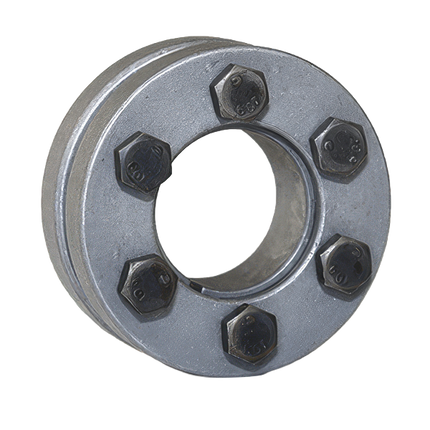

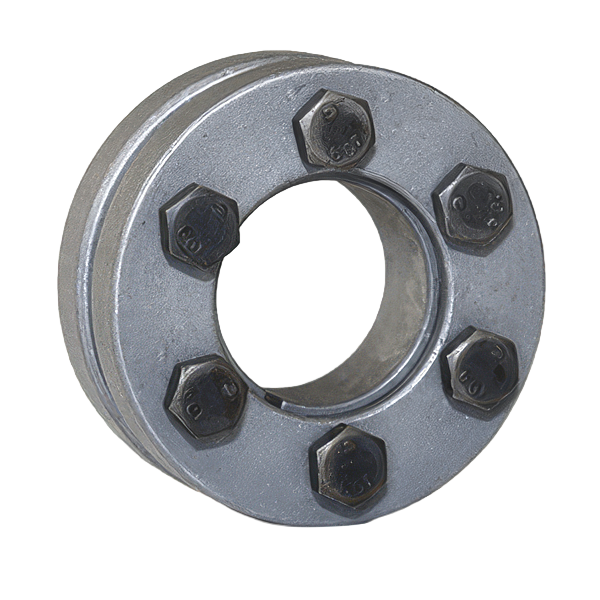

Drivelock 19 24x50mm (DL19/24)
| Part No. |
7930-401 |
| Code |
DL19/24 |
| d2 (mm) |
24 |
| D (mm) |
50 |
| d1 (mm) |
19 |
| M(Screws) |
M5 |
| I (mm) |
14 |
| B (mm) |
19.5 |
| L (mm) |
23 |
| Ts Nm |
4 |
| T Nm |
170 |
| F kN |
25 |
| Part No. |
7930-401 |
| Code |
DL19/24 |
| d2 (mm) |
24 |
| D (mm) |
50 |
| d1 (mm) |
20 |
| M(Screws) |
M5 |
| I (mm) |
14 |
| B (mm) |
19.5 |
| L (mm) |
23 |
| Ts Nm |
4 |
| T Nm |
210 |
| F kN |
29 |
| Part No. |
7930-401 |
| Code |
DL19/24 |
| d2 (mm) |
24 |
| D (mm) |
50 |
| d1 (mm) |
21 |
| M(Screws) |
M5 |
| I (mm) |
14 |
| B (mm) |
19.5 |
| L (mm) |
23 |
| Ts Nm |
4 |
| T Nm |
250 |
| F kN |
29 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
