L Taper Bush Timing Pulleys

Show previous products

•

  Pulley 60L075/3W For 1610 T/L Bush (T60L075)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 60L075/3W For 1610 T/L Bush (T60L075) Part No. 7801-151 Code T60L075 Material Steel Type 7 No. Teeth 60 Bush 1610 Dp 182 De 181 Df – Dm 92 Di 166 F 25 S – R – No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £28.90

•

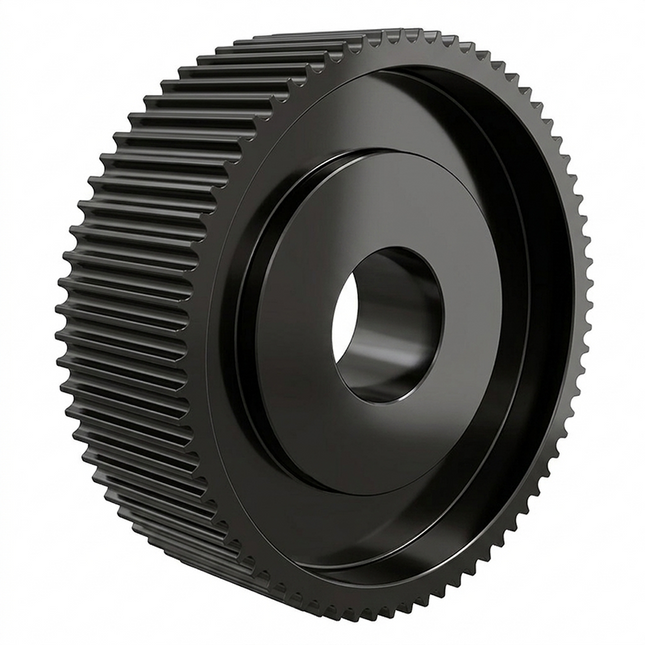

  Pulley 60L100/9W For 1610 T/L Bush (T60L100)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 60L100/9W For 1610 T/L Bush (T60L100) Part No. 7801-152 Code T60L100 Material Steel Type 11 No. Teeth 1610 Bush 60 Dp 182 De 181 Df – Dm 92 Di 166 F 32 S 25 R 3.5 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £34.72

•

  Pulley 72L050/7A For 1610 T/L Bush (T72L050)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 72L050/7A For 1610 T/L Bush (T72L050) Part No. 7801-153 Code T72L050 Material Steel Type 4 No. Teeth 72 Bush 1610 Dp 218.3 De 217.53 Df _ Dm 92 Di 202 F 19 S 25 R 3 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £33.70

•

  Pulley 72L075/3A For 1610 T/L Bush (T72L075)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 72L075/3A For 1610 T/L Bush (T72L075) Part No. 7801-154 Code T72L075 Material Cast Iron Type 8 No. Teeth 72 Bush 1610 Dp 218 De 218 Df – Dm 92 Di 202 F 25 S – R – No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £37.74

•

  Pulley 72L100/3A For 2012 T/L Bush (T72L100)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 72L100/3A For 2012 T/L Bush (T72L100) Part No. 7801-155 Code T72L100 Material Cast Iron Type 8 No. Teeth 2012 Bush 72 Dp 218 De 218 Df – Dm 106 Di 202 F 32 S 32 R – No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £46.20

•

  Pulley 84L050/7A For 1610 T/L Bush (T84L050)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 84L050/7A For 1610 T/L Bush (T84L050) Part No. 7801-156 Code T84L050 Material Steel Type 4 No. Teeth 84 Bush 1610 Dp 254.68 De 253.9 Df _ Dm 92 Di 236 F 19 S 25 R 3 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £45.98

•

  Pulley 84L075/7A For 2012 T/L Bush (T84L075)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 84L075/7A For 2012 T/L Bush (T84L075) Part No. 7801-157 Code T84L075 Material Cast Iron Type 4 No. Teeth 84 Bush 2012 Dp 255 De 254 Df – Dm 106 Di 236 F 25 S 32 R 3.5 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £52.14

•

  Pulley 84L100/3A For 2012 T/L Bush (T84L100)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 84L100/3A For 2012 T/L Bush (T84L100) Part No. 7801-158 Code T84L100 Material Cast Iron Type 8 No. Teeth 2012 Bush 84 Dp 255 De 254 Df – Dm 106 Di 236 F 32 S 32 R – No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £60.56

•

  Pulley 96L050/7A For 2012 T/L Bush (T96L050)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 96L050/7A For 2012 T/L Bush (T96L050) Part No. 7801-159 Code T96L050 Material Steel Type 4 No. Teeth 96 Bush 2012 Dp 291.06 De 290.3 Df _ Dm 106 Di 270 F 19 S 32 R 6.5 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £48.64

•

  Pulley 96L075/7A For 2012 T/L Bush (T96L075)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 96L075/7A For 2012 T/L Bush (T96L075) Part No. 7801-160 Code T96L075 Material Cast Iron Type 4 No. Teeth 96 Bush 2012 Dp 291 De 290 Df – Dm 106 Di 270 F 25 S 32 R 3.5 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £56.26

•

  Pulley 96L100/3A For 2012 T/L Bush (T96L100)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 96L100/3A For 2012 T/L Bush (T96L100) Part No. 7801-161 Code T96L100 Material Cast Iron Type 8 No. Teeth 2012 Bush 96 Dp 291 De 290 Df – Dm 106 Di 270 F 32 S 32 R – No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £63.38

•

  Pulley 120L050/7A For 2012 T/L Bush (T120L050)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 120L050/7A For 2012 T/L Bush (T120L050) Part No. 7801-162 Code T120L050 Material Steel Type 4 No. Teeth 120 Bush 2012 Dp 363.83 De 363.07 Df _ Dm 106 Di 343 F 19 S 32 R 6.5 No. flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £57.74

•

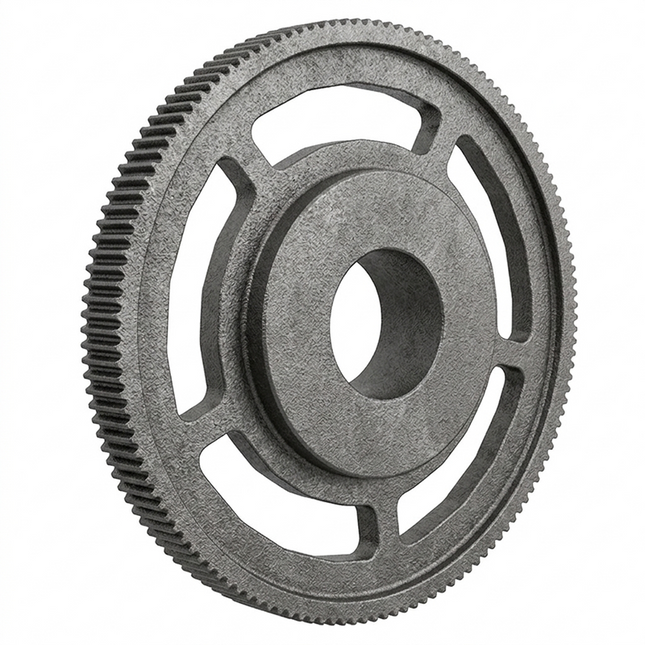

  Pulley 120L075/7A For 2012 T/L Bush (T120L075)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 120L075/7A For 2012 T/L Bush (T120L075) Part No. 7801-163 Code T120L075 Material Cast Iron Type 4 No. Teeth 120 Bush 2012 Dp 364 De 363 Df – Dm 106 Di 343 F 25 S 32 R 3.5 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £68.38

•

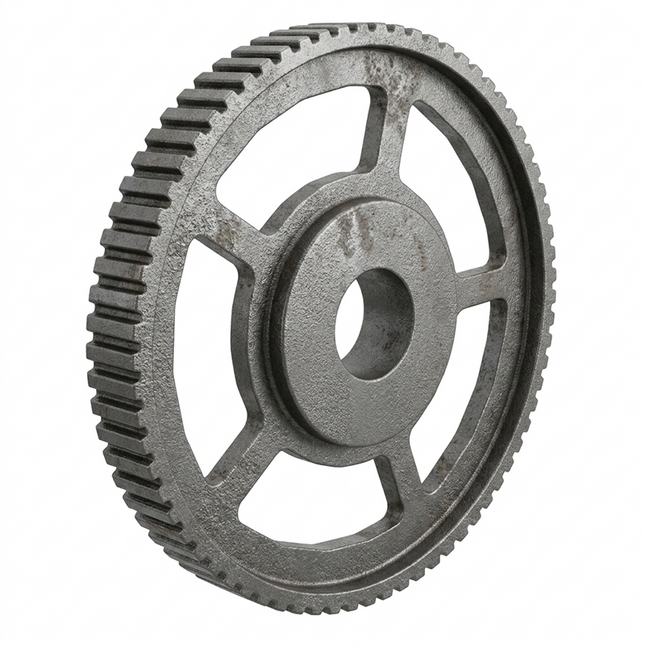

  Pulley 120L100/3A For 2012 T/L Bush (T120L100)

  Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.Pulley 120L100/3A For 2012 T/L Bush (T120L100) Part No. 7801-164 Code T120L100 Material Cast Iron Type 8 No. Teeth 2012 Bush 120 Dp 364 De 363 Df – Dm 106 Di 343 F 32 S 32 R – No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £74.34
