Description
Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.

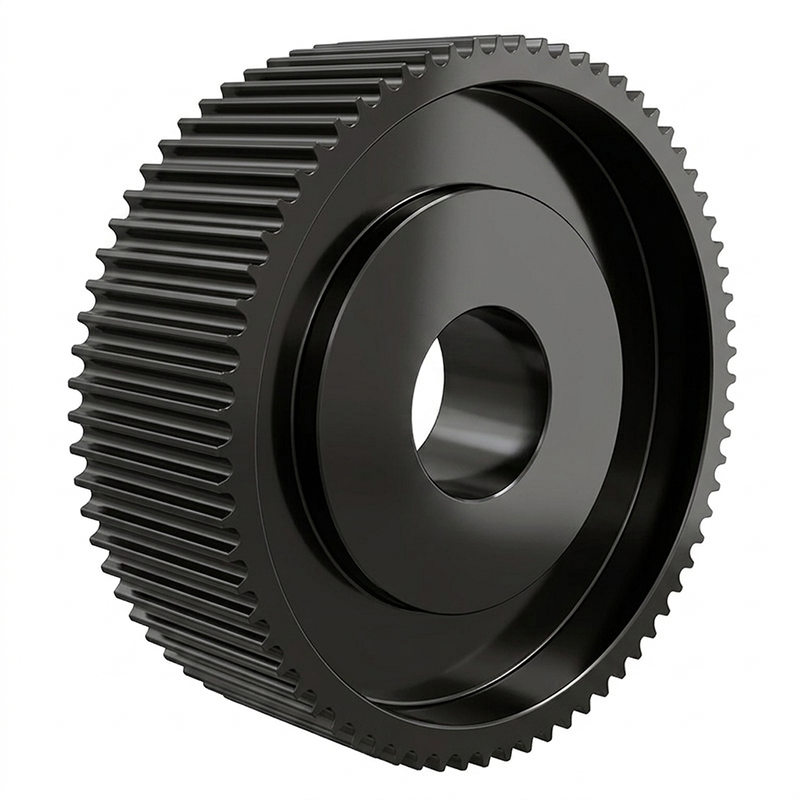

Pulley 60L100/9W For 1610 T/L Bush (T60L100)
| Part No. |
7801-152 |
| Code |
T60L100 |
| Material |
Steel |
| Type |
11 |
| No. Teeth |
1610 |
| Bush |
60 |
| Dp |
182 |
| De |
181 |
| Df |
|
| Dm |
92 |
| Di |
166 |
| F |
32 |
| S |
25 |
| R |
3.5 |
| No. flanges |
|
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
