Drivelock Bushes
-
Drivelock 45 70x105 mm (DL45/70)
Drivelock 45 Bushes are not self centering, offer medium torques 190 to 4800 Nm and are available in bores from 18 to 80mmDrivelock 45 70x105 mm (DL45/70) Part No. 7930-617 Code DL45/70 d (h8)(mm) 70 D(mm) 105 L2(mm) 35 L(mm) 45 L1(mm) 22 M (screws) M10 Ts(Nm) 22 T(Nm) 3900 F(kN) 180 p(N/mm 2) 120 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£63.76
-
Drivelock 45 80x115 mm (DL45/80)
Drivelock 45 Bushes are not self centering, offer medium torques 190 to 4800 Nm and are available in bores from 18 to 80mmDrivelock 45 80x115 mm (DL45/80) Part No. 7930-618 Code DL45/80 d (h8)(mm) 80 D(mm) 115 L2(mm) 35 L(mm) 45 L1(mm) 22 M (screws) M10 Ts(Nm) 22 T(Nm) 4800 F(kN) 170 p(N/mm 2) 120 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£68.61
-
Drivelock 50 15x19mm (DL50/15)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 15x19mm (DL50/15) Part No. 7930-701 Code DL50/15 d (mm) 15 D (mm) 19 L (mm) 6.3 T 24.3 F (Nm) 3.24 P N/mm2 85 Fa kN 25.4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.03
-
Drivelock 50 18x22mm (DL50/18)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 18x22mm (DL50/18) Part No. 7930-702 Code DL50/18 d (mm) 18 D (mm) 22 L (mm) 6.3 T 32.4 F (Nm) 3.61 P N/mm2 80 Fa kN 25.4 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.15
-
Drivelock 50 19x24mm (DL50/19)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 19x24mm (DL50/19) Part No. 7930-703 Code DL50/19 d (mm) 19 D (mm) 24 L (mm) 6.3 T 49 F (Nm) 5.22 P N/mm2 110 Fa kN 36 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.15
-
Drivelock 50 20x25 mm (DL50/20)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 20x25 mm (DL50/20) Part No. 7930-704 Code DL50/20 d (mm) 20 D (mm) 25 L (mm) 6.3 T 53 F (Nm) 5.33 P N/mm2 105 Fa kN 36 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.17
-
Drivelock 50 22x26mm (DL50/22)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 22x26mm (DL50/22) Part No. 7930-705 Code DL50/22 d (mm) 22 D (mm) 26 L (mm) 6.3 T 66 F (Nm) 6 P N/mm2 115 Fa kN 36 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.19
-
Drivelock 50 24x28mm (DL50/24)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 24x28mm (DL50/24) Part No. 7930-706 Code DL50/24 d (mm) 24 D (mm) 28 L (mm) 6.3 T 73 F (Nm) 6.13 P N/mm2 110 Fa kN 36 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.19
-
Drivelock 50 25x30 mm (DL50/25)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 25x30 mm (DL50/25) Part No. 7930-707 Code DL50/25 d (mm) 25 D (mm) 30 L (mm) 6.3 T 72 F (Nm) 5.77 P N/mm2 95 Fa kN 36 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.21
-
Drivelock 50 28x32mm (DL50/28)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 28x32mm (DL50/28) Part No. 7930-708 Code DL50/28 d (mm) 28 D (mm) 32 L (mm) 6.3 T 86 F (Nm) 6.33 P N/mm2 100 Fa kN 36 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.27
-
Drivelock 50 30x35 mm (DL50/30)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 30x35 mm (DL50/30) Part No. 7930-709 Code DL50/30 d (mm) 30 D (mm) 35 L (mm) 6.3 T 91 F (Nm) 6.08 P N/mm2 85 Fa kN 36 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.33
-
Drivelock 50 32x36mm (DL50/32)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 32x36mm (DL50/32) Part No. 7930-710 Code DL50/32 d (mm) 32 D (mm) 36 L (mm) 6.3 T 131 F (Nm) 8.24 P N/mm2 115 Fa kN 45 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.41
-
Drivelock 50 35x40 mm (DL50/35)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 35x40 mm (DL50/35) Part No. 7930-711 Code DL50/35 d (mm) 35 D (mm) 40 L (mm) 7 T 171 F (Nm) 9.77 P N/mm2 110 Fa kN 54 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.54
-
Drivelock 50 36x42mm (DL50/36)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 36x42mm (DL50/36) Part No. 7930-712 Code DL50/36 d (mm) 36 D (mm) 42 L (mm) 7 T 169 F (Nm) 9.39 P N/mm2 100 Fa kN 54 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.70
-
Drivelock 50 38x44mm (DL50/38)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 38x44mm (DL50/38) Part No. 7930-713 Code DL50/38 d (mm) 38 D (mm) 44 L (mm) 7 T 181 F (Nm) 9.55 P N/mm2 95 Fa kN 54 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£3.84
-
Drivelock 50 40x45mm (DL50/40)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 40x45mm (DL50/40) Part No. 7930-714 Code DL50/40 d (mm) 40 D (mm) 45 L (mm) 8 T 231 F (Nm) 11.57 P N/mm2 105 Fa kN 66 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.00
-
Drivelock 50 42x48 mm (DL50/42)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 42x48 mm (DL50/42) Part No. 7930-715 Code DL50/42 d (mm) 42 D (mm) 48 L (mm) 8 T 235 F (Nm) 11.22 P N/mm2 95 Fa kN 66 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£4.61
-
Drivelock 50 45x52mm (DL50/45)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 45x52mm (DL50/45) Part No. 7930-716 Code DL50/45 d (mm) 45 D (mm) 52 L (mm) 10 T 353 F (Nm) 15.71 P N/mm2 95 Fa kN 99 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.09
-
Drivelock 50 48x55mm (DL50/48)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 48x55mm (DL50/48) Part No. 7930-717 Code DL50/48 d (mm) 48 D (mm) 55 L (mm) 10 T 572 F (Nm) 23.44 P N/mm2 135 Fa kN 132 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.37
-
Drivelock 50 50x57 mm (DL50/50)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 50x57 mm (DL50/50) Part No. 7930-718 Code DL50/50 d (mm) 50 D (mm) 57 L (mm) 10 T 602 F (Nm) 24.08 P N/mm2 130 Fa kN 132 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.46
-
Drivelock 50 55x62mm (DL50/55)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 55x62mm (DL50/55) Part No. 7930-719 Code DL50/55 d (mm) 55 D (mm) 62 L (mm) 10 T 670 F (Nm) 24.35 P N/mm2 125 Fa kN 132 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.04
-
Drivelock 50 56x64mm (DL50/56)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 56x64mm (DL50/56) Part No. 7930-720 Code DL50/56 d (mm) 56 D (mm) 64 L (mm) 12 T 790 F (Nm) 28.2 P N/mm2 115 Fa kN 157.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.18
-
Drivelock 50 60x68mm (DL50/60)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 60x68mm (DL50/60) Part No. 7930-721 Code DL50/60 d (mm) 60 D (mm) 68 L (mm) 12 T 860 F (Nm) 28.6 P N/mm2 110 Fa kN 157.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.38
-

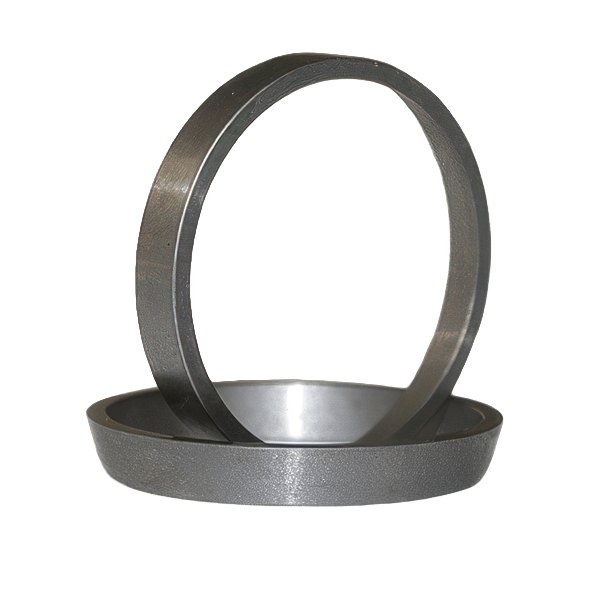

Drivelock 50 70x79mm (DL50/70)
Drivelock 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mmDrivelock 50 70x79mm (DL50/70) Part No. 7930-722 Code DL50/70 d (mm) 70 D (mm) 79 L (mm) 14 T 1300 F (Nm) 37.1 P N/mm2 110 Fa kN 200 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.39
-

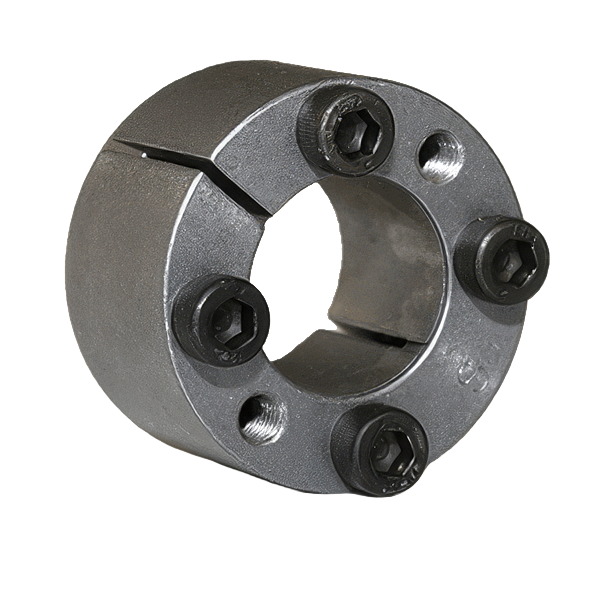

Drivelock 61 10x20mm (DL61/10)
Drivelock 61 Bushes are self centering, offer medium torques 5 to 1900 Nm and are available in bores from 5 to 50mmDrivelock 61 10x20mm (DL61/10) Part No. 7930-801 Code DL61/10 d (h8) (mm) 10 D (mm) 20 L1 (mm) 13 L (mm) 15.5 B (mm) M2.5 Ts Nm 1.2 T Nm 15 F kN 3 p N/mm2 55 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£16.04
You have seen 200 out of 326 products
