Drivelock Bushes
-
Drivelock 80 10x16 mm (DL80/10)

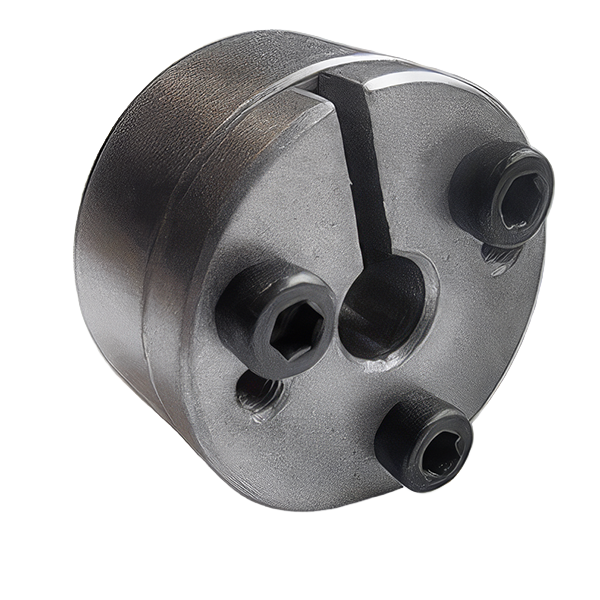

Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 10x16 mm (DL80/10) Part No. 7931-101 Code DL80/10 d (mm) 10 D (mm) 16 D1 (mm) 28 A (mm 14 B (mm 27.5 L (mm 31.5 M (mm) M4 Ts (Nm) 5 T( Nm) 35 F (kN) 7 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.71
-
Drivelock 80 100x125mm (DL80/100)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 100x125mm (DL80/100) Part No. 7931-102 Code DL80/100 d (mm) 100 D (mm) 125 D1 (mm) 154 A (mm 65 B (mm 96.5 L (mm 106.5 M (mm) M10 Ts (Nm) 83 T( Nm) 14800 F (kN) 270 p (N/mm2) 93 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£109.16
-
Drivelock 80 11x18mm (DL80/11)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 11x18mm (DL80/11) Part No. 7931-103 Code DL80/11 d (mm) 11 D (mm) 18 D1 (mm) 32 A (mm 14 B (mm 27.5 L (mm 31.5 M (mm) M4 Ts (Nm) 5 T( Nm) 51 F (kN) 9 p (N/mm2) 100 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.75
-
Drivelock 80 12x18mm (DL80/12)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 12x18mm (DL80/12) Part No. 7931-104 Code DL80/12 d (mm) 12 D (mm) 18 D1 (mm) 32 A (mm 14 B (mm 27.5 L (mm 31.5 M (mm) M4 Ts (Nm) 5 T( Nm) 56 F (kN) 9 p (N/mm2) 100 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.77
-
Drivelock 80 14x23mm (DL80/14)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 14x23mm (DL80/14) Part No. 7931-105 Code DL80/14 d (mm) 14 D (mm) 23 D1 (mm) 39 A (mm 14 B (mm 27.5 L (mm 31.5 M (mm) M4 Ts (Nm) 5 T( Nm) 66 F (kN) 9 p (N/mm2) 78 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.13
-
Drivelock 80 15x24mm (DL80/15)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 15x24mm (DL80/15) Part No. 7931-106 Code DL80/15 d (mm) 15 D (mm) 24 D1 (mm) 45 A (mm 16 B (mm 36.5 L (mm 42.5 M (mm) M6 Ts (Nm) 17 T( Nm) 175 F (kN) 21 p (N/mm2) 135 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.15
-
Drivelock 80 16x24mm (DL80/16)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 16x24mm (DL80/16) Part No. 7931-107 Code DL80/16 d (mm) 16 D (mm) 24 D1 (mm) 45 A (mm 16 B (mm 36.5 L (mm 42.5 M (mm) M6 Ts (Nm) 17 T( Nm) 175 F (kN) 21 p (N/mm2) 135 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£14.24
-
Drivelock 80 18x26mm (DL80/18)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 18x26mm (DL80/18) Part No. 7931-108 Code DL80/18 d (mm) 18 D (mm) 26 D1 (mm) 47 A (mm 19 B (mm 39.5 L (mm 45.5 M (mm) M6 Ts (Nm) 17 T( Nm) 196 F (kN) 21 p (N/mm2) 124 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£14.26
-
Drivelock 80 19x27mm (DL80/19)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 19x27mm (DL80/19) Part No. 7931-109 Code DL80/19 d (mm) 19 D (mm) 27 D1 (mm) 49 A (mm 19 B (mm 39.5 L (mm 45.5 M (mm) M6 Ts (Nm) 17 T( Nm) 207 F (kN) 21 p (N/mm2) 119 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.40
-
Drivelock 80 20x28mm (DL80/20)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 20x28mm (DL80/20) Part No. 7931-110 Code DL80/20 d (mm) 20 D (mm) 28 D1 (mm) 50 A (mm 19 B (mm 39.5 L (mm 45.5 M (mm) M6 Ts (Nm) 17 T( Nm) 219 F (kN) 21 p (N/mm2) 115 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£14.45
-
Drivelock 80 22x32mm (DL80/22)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 22x32mm (DL80/22) Part No. 7931-111 Code DL80/22 d (mm) 22 D (mm) 32 D1 (mm) 54 A (mm 26 B (mm 46.5 L (mm 52.5 M (mm) M6 Ts (Nm) 17 T( Nm) 226 F (kN) 21 p (N/mm2) 67 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£15.40
-
Drivelock 80 24x34mm (DL80/24)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 24x34mm (DL80/24) Part No. 7931-112 Code DL80/24 d (mm) 24 D (mm) 34 D1 (mm) 56 A (mm 26 B (mm 46.5 L (mm 52.5 M (mm) M6 Ts (Nm) 17 T( Nm) 392 F (kN) 32 p (N/mm2) 102 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£16.06
-
Drivelock 80 25x34mm (DL80/25)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 25x34mm (DL80/25) Part No. 7931-113 Code DL80/25 d (mm) 25 D (mm) 34 D1 (mm) 56 A (mm 26 B (mm 46.5 L (mm 52.5 M (mm) M6 Ts (Nm) 17 T( Nm) 411 F (kN) 32 p (N/mm2) 102 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£16.06
-
Drivelock 80 28x39mm (DL80/28)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 28x39mm (DL80/28) Part No. 7931-114 Code DL80/28 d (mm) 28 D (mm) 39 D1 (mm) 61 A (mm 25.5 B (mm 46.5 L (mm 52.5 M (mm) M6 Ts (Nm) 17 T( Nm) 460 F (kN) 32 p (N/mm2) 90 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£16.73
-
Drivelock 80 30x41mm (DL80/30)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 30x41mm (DL80/30) Part No. 7931-115 Code DL80/30 d (mm) 30 D (mm) 41 D1 (mm) 62 A (mm 25.5 B (mm 46.5 L (mm 52.5 M (mm) M6 Ts (Nm) 17 T( Nm) 490 F (kN) 32 p (N/mm2) 85 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£17.09
-
Drivelock 80 32x43mm (DL80/32)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 32x43mm (DL80/32) Part No. 7931-116 Code DL80/32 d (mm) 32 D (mm) 43 D1 (mm) 65 A (mm 25.5 B (mm 46.5 L (mm 52.5 M (mm) M6 Ts (Nm) 17 T( Nm) 701 F (kN) 43 p (N/mm2) 108 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£18.04
-
Drivelock 80 35x47mm (DL80/35)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 35x47mm (DL80/35) Part No. 7931-117 Code DL80/35 d (mm) 35 D (mm) 47 D1 (mm) 69 A (mm 31.5 B (mm 52.5 L (mm 58.5 M (mm) M6 Ts (Nm) 17 T( Nm) 720 F (kN) 43 p (N/mm2) 72 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£19.15
-
Drivelock 80 38x50mm (DL80/38)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 38x50mm (DL80/38) Part No. 7931-118 Code DL80/38 d (mm) 38 D (mm) 50 D1 (mm) 72 A (mm 31.5 B (mm 52.5 L (mm 58.5 M (mm) M6 Ts (Nm) 17 T( Nm) 781 F (kN) 43 p (N/mm2) 68 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£20.95
-
Drivelock 80 40x53mm (DL80/40)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 40x53mm (DL80/40) Part No. 7931-119 Code DL80/40 d (mm) 40 D (mm) 53 D1 (mm) 75 A (mm 31.5 B (mm 52.5 L (mm 58.5 M (mm) M6 Ts (Nm) 17 T( Nm) 768 F (kN) 43 p (N/mm2) 64 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£21.76
-
Drivelock 80 42x55mm (DL80/42)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 42x55mm (DL80/42) Part No. 7931-120 Code DL80/42 d (mm) 42 D (mm) 55 D1 (mm) 78 A (mm 31.5 B (mm 52.5 L (mm 58.5 M (mm) M6 Ts (Nm) 17 T( Nm) 863 F (kN) 43 p (N/mm2) 64 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£26.12
-
Drivelock 80 45x59mm (DL80/45)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 45x59mm (DL80/45) Part No. 7931-121 Code DL80/45 d (mm) 45 D (mm) 59 D1 (mm) 86 A (mm 45 B (mm 71 L (mm 79 M (mm) M8 Ts (Nm) 41 T( Nm) 1711 F (kN) 76 p (N/mm2) 76 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£29.26
-
Drivelock 80 48x62mm (DL80/48)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 48x62mm (DL80/48) Part No. 7931-122 Code DL80/48 d (mm) 48 D (mm) 62 D1 (mm) 87 A (mm 45 B (mm 71 L (mm 79 M (mm) M8 Ts (Nm) 41 T( Nm) 1824 F (kN) 76 p (N/mm2) 72 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£31.88
-
Drivelock 80 50x65mm (DL80/50)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 50x65mm (DL80/50) Part No. 7931-123 Code DL80/50 d (mm) 50 D (mm) 65 D1 (mm) 92 A (mm 45 B (mm 71 L (mm 79 M (mm) M8 Ts (Nm) 41 T( Nm) 1902 F (kN) 76 p (N/mm2) 68 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£32.61
-
Drivelock 80 55x71mm (DL80/55)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 55x71mm (DL80/55) Part No. 7931-124 Code DL80/55 d (mm) 55 D (mm) 71 D1 (mm) 98 A (mm 55 B (mm 81 L (mm 89 M (mm) M8 Ts (Nm) 41 T( Nm) 2353 F (kN) 85 p (N/mm2) 58 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£39.22
-
Drivelock 80 6x14mm (DL80/6)
Drivelock 80 Bushes are self centering for thin walled hubs, offer medium torques 12 to 14800 Nm and are available in bores from 6 to 100mmDrivelock 80 6x14mm (DL80/6) Part No. 7931-125 Code DL80/6 d (mm) 6 D (mm) 14 D1 (mm) 25 A (mm 10 B (mm 22.5 L (mm 25.5 M (mm) M3 Ts (Nm) 2.2 T( Nm) 12 F (kN) 4 p (N/mm2) 78 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.59
You have seen 300 out of 326 products
