Description
0.5 Mod 2 Mod Steel EN8M (226M44) or equivalent. 3 Mod 6 Mod Steel EN8 (080M40,080M46) or equivalent. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm. 20° pressure angle. Bore tolerance H7. Single & double start, right hand

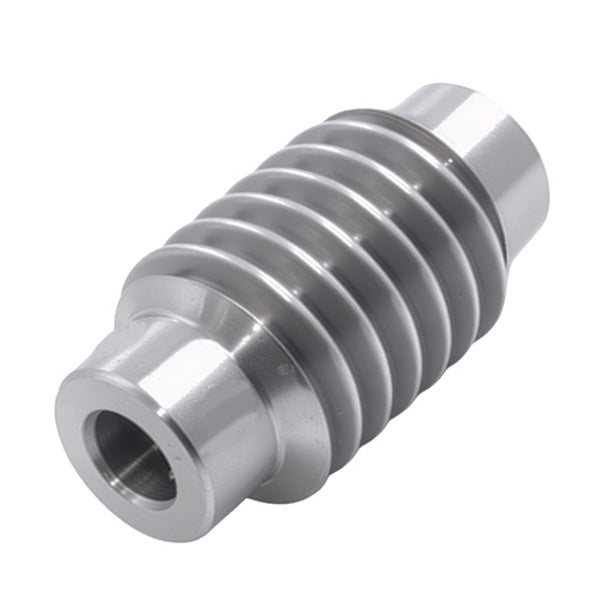

Steel Worm Gear Mod 3, Bored, 1 Start (SWB30/1R)
| Part No. |
7704-110 |
| Code |
SWB30/1R |
| Pitch Module |
3 |
| dp |
38 |
| de |
44 |
| Shaft / Boss Ø D |
30 |
| M |
12 |
| Bore |
15 |
| F |
46 |
| L |
3 |
| A |
61 |
| Type |
B |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
