Description
0.8 Mod, 2 starts Steel EN8M (226M44) or equivalent. 3 Mod 6 Mod Steel EN8 (080M40,080M46) or equivalent. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm. 20° pressure angle. Bore tolerance H7. Single & double start, right hand

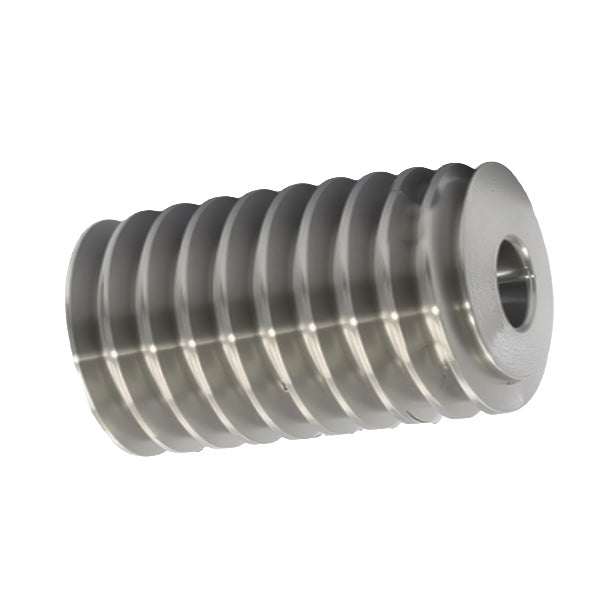

Steel Worm Gear Mod 0.8, 2 Starts (BSWB08/2R). Note: MUST be run only with type NBWW wormwheels
| Part No. |
7704-102 |
| Code |
BSWB08/2R |
| Pitch Module |
0.8 |
| dp |
14 |
| de |
15.6 |
| Shaft / Boss Ø D |
- |
| M |
- |
| Bore |
6 |
| F |
30 |
| L |
- |
| A |
- |
| Type |
D |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
