Description
0.5 Mod 2 Mod Steel EN8M (226M44) or equivalent. 3 Mod 6 Mod Steel EN8 (080M40,080M46) or equivalent. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm. 20° pressure angle. Bore tolerance H7. Single & double start, right hand

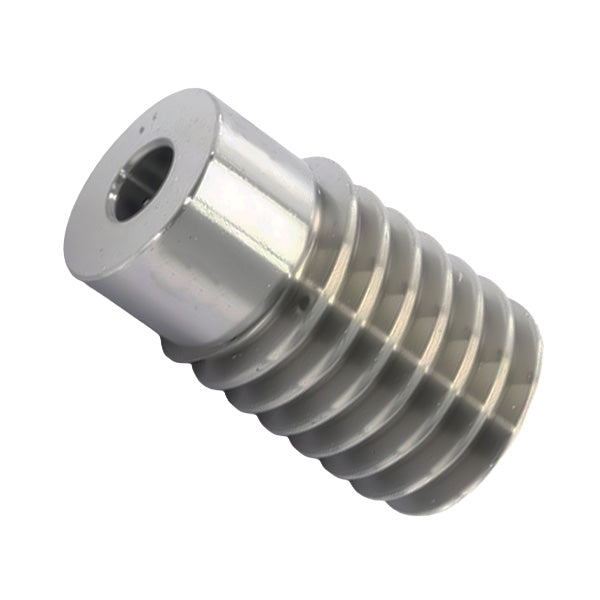

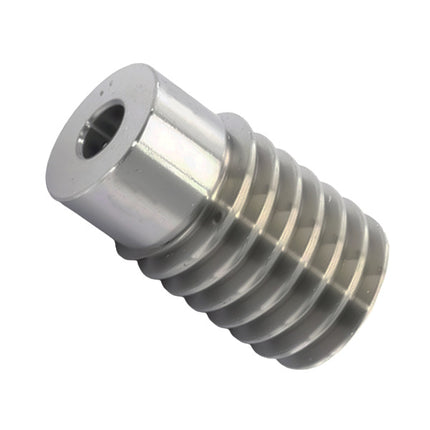

Steel Worm Gear Mod 0.5, Bored, 1 Start (SWB05/1R)
| Part No. |
7704-105 |
| Code |
SWB05/1R |
| Pitch Module |
0.5 |
| dp |
7 |
| de |
8 |
| Shaft / Boss Ø D |
5.5 |
| M |
4 |
| Bore |
3 |
| F |
12 |
| L |
0 |
| A |
16 |
| Type |
A |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
