Description
Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.

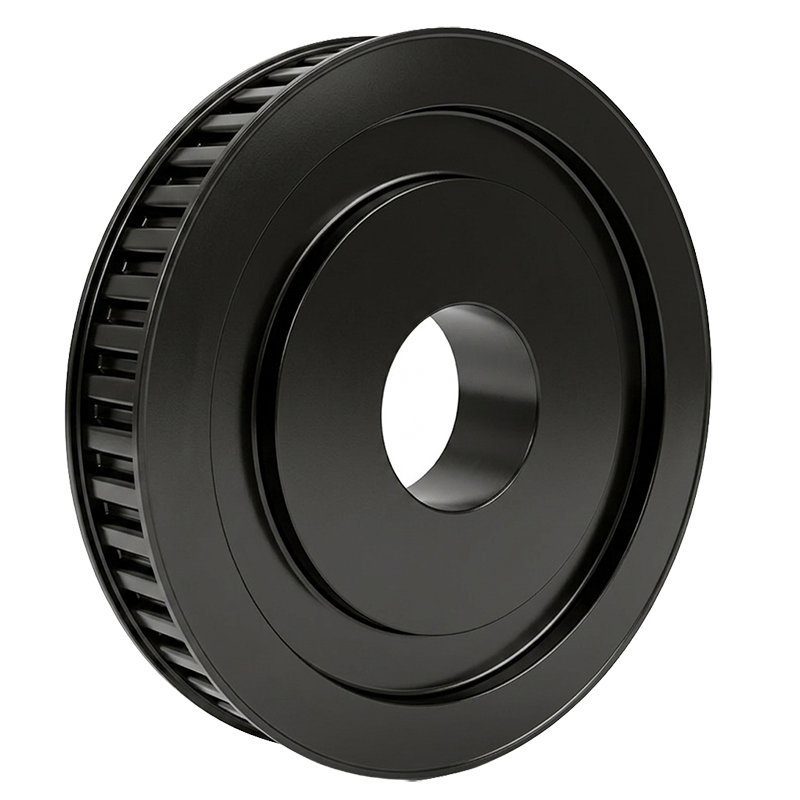

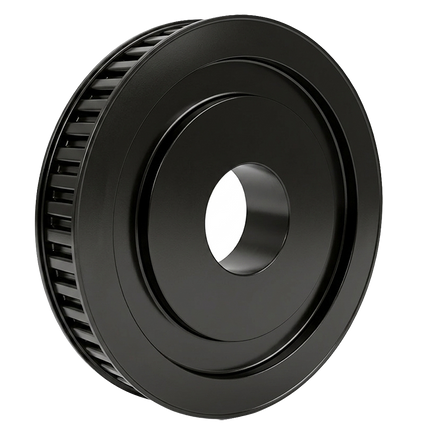

Pulley 48L075/3Wf For 1610 T/L Bush (T48L075F)
| Part No. |
7801-148 |
| Code |
T48L075F |
| Material |
Steel |
| Type |
6F |
| No. Teeth |
48 |
| Bush |
1610 |
| Dp |
146 |
| De |
145 |
| Df |
150 |
| Dm |
92 |
| Di |
120 |
| F |
25 |
| S |
|
| R |
|
| No. flanges |
2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
