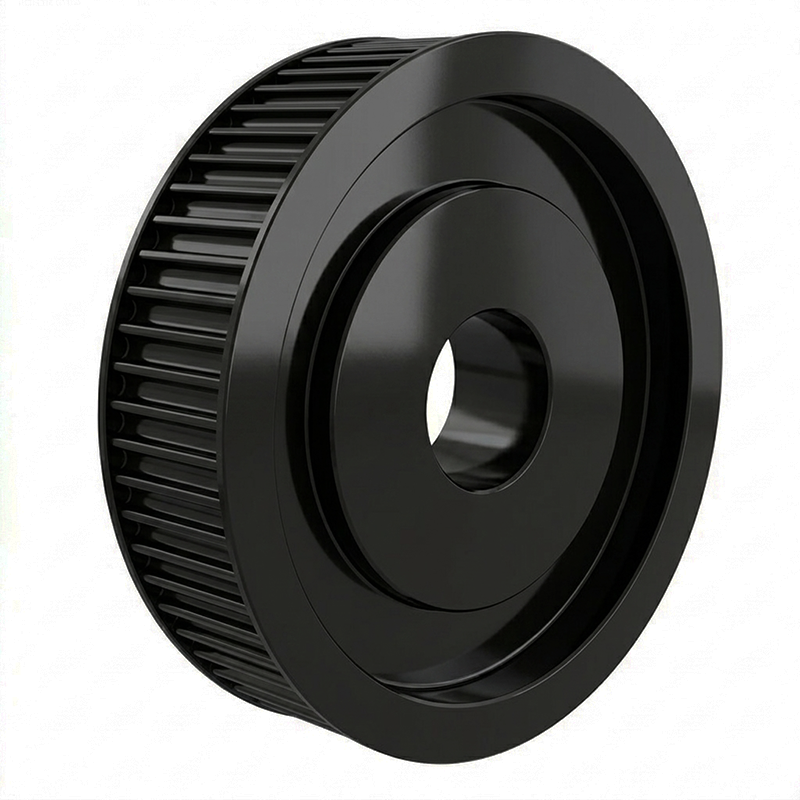

Pulley 44H300/4Wf For 2517 T/L Bush (T44H300F)

    Description

    Timing Pulleys H300 (0.5" / 12.7mm pitch) for 76.2mm (3") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.

    Pulley 44H300/4Wf For 2517 T/L Bush (T44H300F)

    Part No. 7800-962
    Code T44H300F
    Material Steel
    Type 14F
    No.teeth 2517
    Bush 44
    Dp 177.87
    De 176.5
    Df 184
    Dm 119
    Di 150
    F 86
    S 45
    R 20.5
    No. flanges 2
    Every effort is taken to ensure the accuracy of the table data
    Design variations and errors although rare may occur

    Pulley 44H300/4Wf For 2517 T/L Bush (T44H300F)

      Product form

      Part No: 7800-962

      Timing Pulleys H300 (0.5" / 12.7mm pitch) for 76.2mm (3") wide belt. Taper bore for use with our taper bushes.... Read more

      £73.90 Excl. VAT

      •  Dispatched in 1-4 Days

      Description

      Timing Pulleys H300 (0.5" / 12.7mm pitch) for 76.2mm (3") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.

      Pulley 44H300/4Wf For 2517 T/L Bush (T44H300F)

      Part No. 7800-962
      Code T44H300F
      Material Steel
      Type 14F
      No.teeth 2517
      Bush 44
      Dp 177.87
      De 176.5
      Df 184
      Dm 119
      Di 150
      F 86
      S 45
      R 20.5
      No. flanges 2
      Every effort is taken to ensure the accuracy of the table data
      Design variations and errors although rare may occur
