Description
Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.

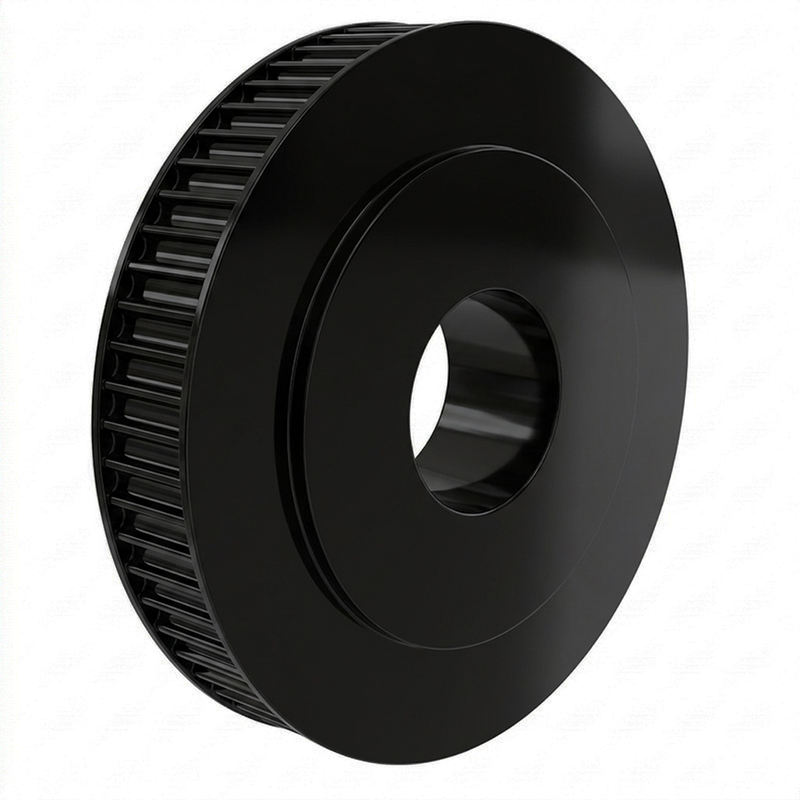

Pulley 40L050 For 1610 T/L Bush (T40L050F)
| Part No. |
7801-144 |
| Code |
T40L050F |
| Material |
Steel |
| Type |
2F |
| No. Teeth |
40 |
| Bush |
1610 |
| Dp |
121.28 |
| De |
120.51 |
| Df |
128 |
| Dm |
97 |
| Di |
_ |
| F |
19 |
| S |
25 |
| R |
6 |
| No. flanges |
2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
