Description
Timing Pulleys L series (0.375" / 9.525mm pitch) available in 3 belt widths L050 (12.7mm, 1/2"), L075 (19.05mm, 3/4") & L100 (25.4mm, 1"). Taper bore for use with our taper bore bushes. Manufactured in steel or Cast Iron with steel flanges.

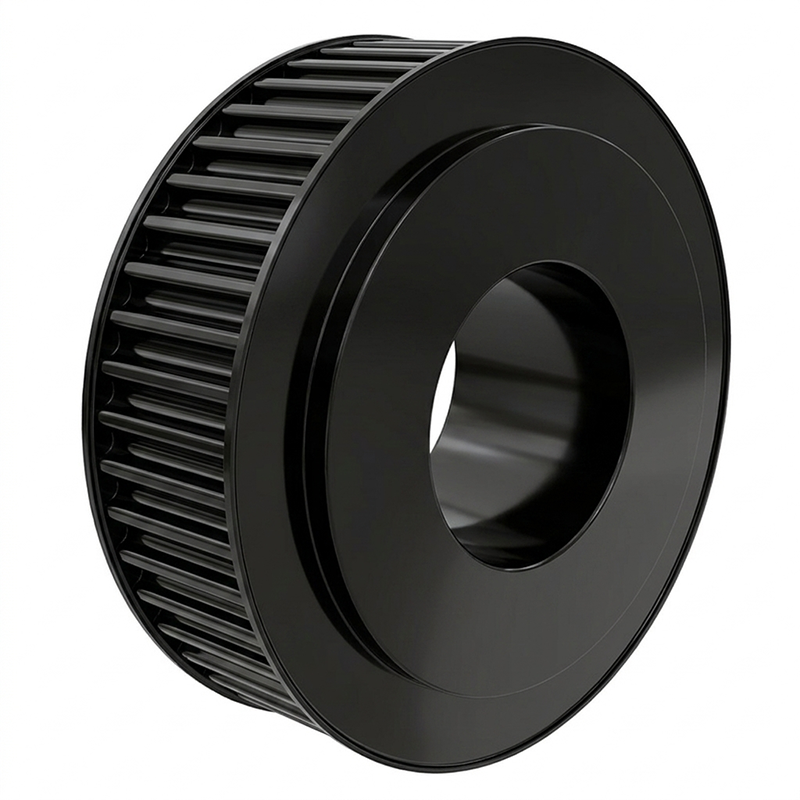

Pulley 20L050/8F For 1108 T/L Bush (T20L050F)
| Part No. |
7801-107 |
| Code |
T20L050F |
| Material |
Steel |
| Type |
1F |
| No. Teeth |
20 |
| Bush |
1108 |
| Dp |
60.64 |
| De |
59.88 |
| Df |
66.5 |
| Dm |
48 |
| Di |
_ |
| F |
19 |
| S |
22 |
| R |
3 |
| No. flanges |
2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
