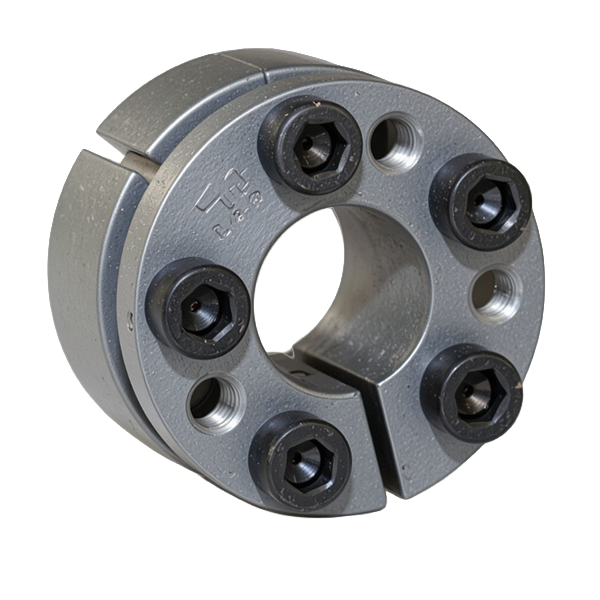

Drivelock 13 18x47mm (DL13/18)

    Description

    Drivelock 13 Bushes are self centering, offer high torques 350 to 46900 Nm and are available in bores from 18 to 180mm

    Drivelock 13 18x47mm (DL13/18)

    Part No. 7930-104
    Code DL13/18
    d (h8) (mm) 18
    D (mm) 47
    M (screws)(mm) M6
    L (mm) 34
    B (mm) 28
    Ts (Nm) 14
    T(Nm) 350
    F (kN) 35
    p (N/mm2) 120
    Every effort is taken to ensure the accuracy of the table data
    Design variations and errors although rare may occur

    Drivelock 13 18x47mm (DL13/18)

      Product form

      Part No: 7930-104

      Drivelock 13 Bushes are self centering, offer high torques 350 to 46900 Nm and are available in bores from 18... Read more

      £10.95 Excl. VAT

      •  Dispatched in 1-4 Days

      Description

      Drivelock 13 Bushes are self centering, offer high torques 350 to 46900 Nm and are available in bores from 18 to 180mm

      Drivelock 13 18x47mm (DL13/18)

      Part No. 7930-104
      Code DL13/18
      d (h8) (mm) 18
      D (mm) 47
      M (screws)(mm) M6
      L (mm) 34
      B (mm) 28
      Ts (Nm) 14
      T(Nm) 350
      F (kN) 35
      p (N/mm2) 120
      Every effort is taken to ensure the accuracy of the table data
      Design variations and errors although rare may occur
