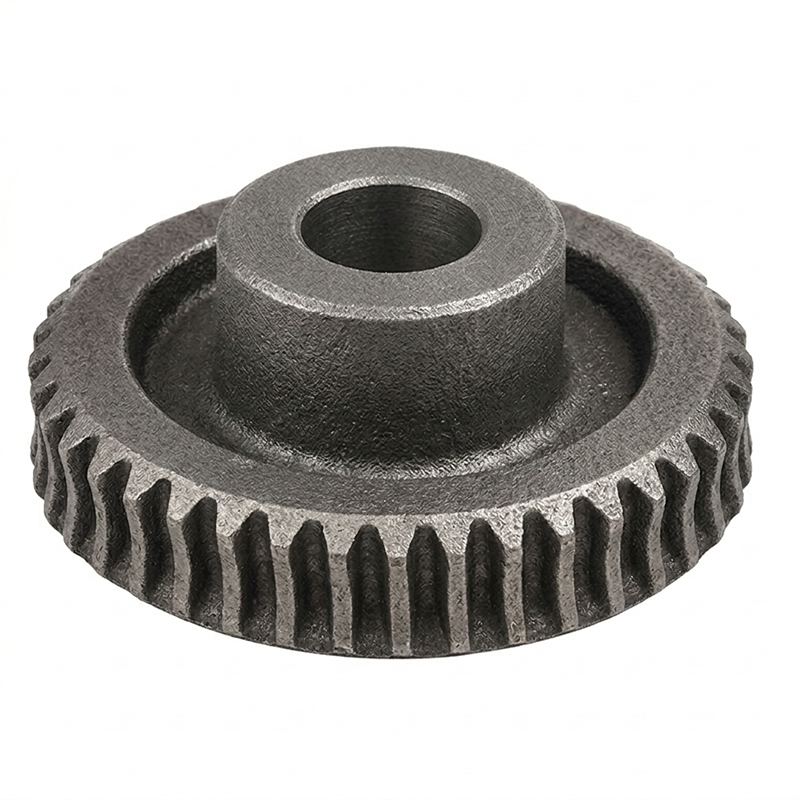

Cast Iron Wormwheel MOD 3 26T, 1 Start (CWW30/26/1R)

    Description

    Bronze wormwheels, worm not included with wormwheel but available /steel-worm-gears/. . 20° pressure angle. Bore tolerance H7. Single(1R) Start. Right Hand. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm. Cast Iron Grade GG20

    Cast Iron Wormwheel Mod 26T, 1 Start (CWW30/26/1R)

    Part No. 7705-204
    Code CWW30/26/1R
    Pitch Module 3
    No . Teeth 26
    dp 78
    de 89
    Boss Ø D 45
    Length M 18
    Bore 18
    F 24
    L 4
    A 46
    Centre Distance 58
    Every effort is taken to ensure the accuracy of the table data
    Design variations and errors although rare may occur

    Cast Iron Wormwheel MOD 3 26T, 1 Start (CWW30/26/1R)

      Product form

      Part No: 7705-204

      Bronze wormwheels, worm not included with wormwheel but available /steel-worm-gears/. . 20° pressure angle. Bore tolerance H7. Single(1R) Start. Right... Read more

      £73.20 Excl. VAT

      •  Dispatched in 1-4 Days

      Description

      Bronze wormwheels, worm not included with wormwheel but available /steel-worm-gears/. . 20° pressure angle. Bore tolerance H7. Single(1R) Start. Right Hand. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm. Cast Iron Grade GG20

      Cast Iron Wormwheel Mod 26T, 1 Start (CWW30/26/1R)

      Part No. 7705-204
      Code CWW30/26/1R
      Pitch Module 3
      No . Teeth 26
      dp 78
      de 89
      Boss Ø D 45
      Length M 18
      Bore 18
      F 24
      L 4
      A 46
      Centre Distance 58
      Every effort is taken to ensure the accuracy of the table data
      Design variations and errors although rare may occur
