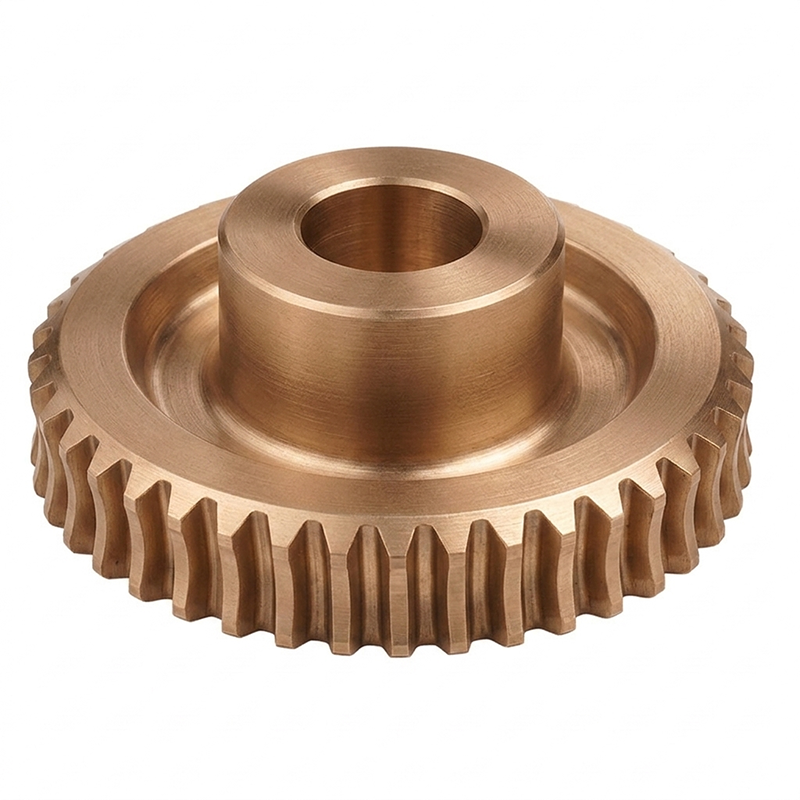

Bronze Wormwheel MOD 0.5 50T, 1 Start (BWW05/50/1R)

    Description

    Bronze wormwheels, worm not included with wormwheel but available from /steel-worm-gears/. . 20° pressure angle. Bore tolerance H7. Single(1R) & Double(2R) Start. Right Hand. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm.

    Bronze Wormwheel Mod 0.5 50T, 1 Start (BWW05/50/1R)

    Part No. 7705-106
    Code BWW05/50/1R
    Pitch Module 0.5
    No. Teeth 50
    dp 25
    de 26.5
    Boss Ø D 10
    M 5
    Bore 4
    F 3
    A 8
    Centre Distance 16
    Type A
    Every effort is taken to ensure the accuracy of the table data
    Design variations and errors although rare may occur

    Bronze Wormwheel MOD 0.5 50T, 1 Start (BWW05/50/1R)

      Product form

      Part No: 7705-106

      Bronze wormwheels, worm not included with wormwheel but available from /steel-worm-gears/. . 20° pressure angle. Bore tolerance H7. Single(1R) &... Read more

      £39.88 Excl. VAT

      •  Dispatched in 1-4 Days

      Description

      Bronze wormwheels, worm not included with wormwheel but available from /steel-worm-gears/. . 20° pressure angle. Bore tolerance H7. Single(1R) & Double(2R) Start. Right Hand. All dimensions in mm. Standard tolerances, unless otherwise stated ±0.25 mm.

      Bronze Wormwheel Mod 0.5 50T, 1 Start (BWW05/50/1R)

      Part No. 7705-106
      Code BWW05/50/1R
      Pitch Module 0.5
      No. Teeth 50
      dp 25
      de 26.5
      Boss Ø D 10
      M 5
      Bore 4
      F 3
      A 8
      Centre Distance 16
      Type A
      Every effort is taken to ensure the accuracy of the table data
      Design variations and errors although rare may occur
