XL Pilot Bore Timing Pulleys
-
Steel Pulley 24T XL037 (P24XL037FST)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Steel Pulley 24T XL037 (P24XL037FST) Part No. 7801-226 Material P24XL037FST Code(Aluminium) P24XL037FST Type 1F No. Teeth 24 Dp 39 De 38 Df 44 Dm 30 F 14.3 L 22 Bore(d) 6 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.05
-
Aluminium Pulley 26T XL037 (P26XL037F)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 26T XL037 (P26XL037F) Part No. 7801-227 Material P26XL037F Code(Aluminium) P26XL037F Type 1F No. Teeth 26 Dp 42 De 42 Df 48 Dm 30 F 14.3 L 22 Bore(d) 6 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.18
-
Steel Pulley 26T XL037 (P26XL037FST)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Steel Pulley 26T XL037 (P26XL037FST) Part No. 7801-228 Material P26XL037FST Code(Aluminium) P26XL037FST Type 1F No. Teeth 26 Dp 42 De 42 Df 48 Dm 30 F 14.3 L 22 Bore(d) 6 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.10
-
Aluminium Pulley 28T XL037 (P28XL037F)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 28T XL037 (P28XL037F) Part No. 7801-229 Material P28XL037F Code(Aluminium) P28XL037F Type 1F No. Teeth 28 Dp 45 De 45 Df 51 Dm 34 F 14.3 L 22 Bore(d) 8 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.63
-
Steel Pulley 28T XL037 (P28XL037FST)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Steel Pulley 28T XL037 (P28XL037FST) Part No. 7801-230 Material P28XL037FST Code(Aluminium) P28XL037FST Type 1F No. Teeth 28 Dp 45 De 45 Df 51 Dm 34 F 14.3 L 22 Bore(d) 8 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.72
-
Aluminium Pulley 29T L075 (P29L075F)
Timing Pulleys L075 (0.375" / 9.525mm pitch) for 19.05mm (3/4") wide belt. Pilot bore, manufactured in steel or Cast Iron with steel flanges.Aluminium Pulley 29T L075 (P29L075F) Part No. 7801-231 Code P29L075F Material Steel Type 1F No. Teeth 29 Dp 88 De 87 Df 93 Dm 58 F 25.4 L 38 Bore 11 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£16.99
-
Steel Pulley 29T XL037 (P29XL037FST)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Steel Pulley 29T XL037 (P29XL037FST) Part No. 7801-232 Material P29XL037FST Code(Aluminium) Steel Type 1F No. Teeth 29 Dp 45 De 45 Df 51 Dm 34 F 14.3 L 22 Bore(d) 8 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.86
-
Aluminium Pulley 30T XL037 (P30XL037F)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 30T XL037 (P30XL037F) Part No. 7801-233 Material P30XL037F Code(Aluminium) P30XL037F Type 1F No. Teeth 30 Dp 49 De 48 Df 54 Dm 38 F 14.3 L 22 Bore(d) 8 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.08
-
Aluminium Pulley 32T XL037 (P32XL037F)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 32T XL037 (P32XL037F) Part No. 7801-234 Material P32XL037F Code(Aluminium) P32XL037F Type 1F No. Teeth 32 Dp 52 De 51 Df 57 Dm 38 F 14.3 L 25 Bore(d) 8 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£5.96
-
Steel Pulley 32T XL037 (P32XL037FST)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Steel Pulley 32T XL037 (P32XL037FST) Part No. 7801-235 Material P32XL037FST Code(Aluminium) P32XL037FST Type 1F No. Teeth 32 Dp 52 De 51 Df 57 Dm 38 F 14.3 L 25 Bore(d) 8 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£6.89
-
Aluminium Pulley 34T XL037 (P34XL037F)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 34T XL037 (P34XL037F) Part No. 7801-236 Material P34XL037F Code(Aluminium) Type 1F No. Teeth Dp De Df Dm F L Bore(d) No. Flanges Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.31
-
Aluminium Pulley 36T XL037 (P36XL037)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 36T XL037 (P36XL037) Part No. 7801-237 Material P36XL037 Code(Aluminium) P36XL037 Type 2 No. Teeth 36 Dp 58 De 58 Df _ Dm 45 F 14.3 L 25 Bore(d) 8 No. Flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£7.98
-
Aluminium Pulley 40T XL037 (P40XL037)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 40T XL037 (P40XL037) Part No. 7801-238 Material P40XL037 Code(Aluminium) P40XL037 Type 2 No. Teeth 40 Dp 65 De 64 Df _ Dm 45 F 14.3 L 25 Bore(d) 8 No. Flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£9.60
-
Aluminium Pulley 42T XL037 (P42XL037)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 42T XL037 (P42XL037) Part No. 7801-239 Material P42XL037 Code(Aluminium) P42XL037 Type 2 No. Teeth 42 Dp 68 De 67 Df _ Dm 45 F 14.3 L 25 Bore(d) 8 No. Flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£8.38
-

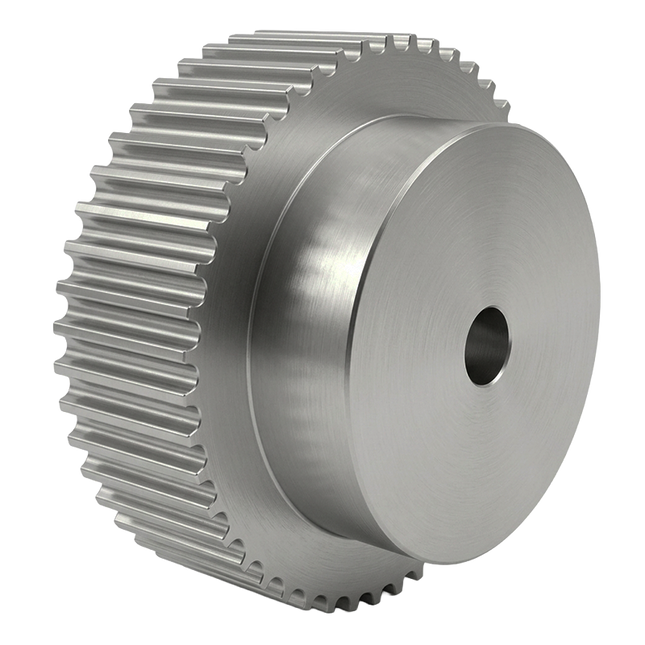

Aluminium Pulley 44T XL037 (P44XL037)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 44T XL037 (P44XL037) Part No. 7801-240 Material P44XL037 Code(Aluminium) P44XL037 Type 2 No. Teeth 44 Dp 71 De 71 Df _ Dm 45 F 14.3 L 25 Bore(d) 8 No. Flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£11.76
-
Aluminium Pulley 48T XL037 (P48XL037)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 48T XL037 (P48XL037) Part No. 7801-241 Material P48XL037 Code(Aluminium) P48XL037 Type 3 No. Teeth 48 Dp 78 De 77 Df Dm 45 F 14.3 L 25 Bore(d) 10 No. Flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£12.24
-
Aluminium Pulley 60T XL037 (P60XL037)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 60T XL037 (P60XL037) Part No. 7801-242 Material P60XL037 Code(Aluminium) P60XL037 Type 3 No. Teeth 60 Dp 97 De 97 Df Dm 45 F 14.3 L 25 Bore(d) 10 No. Flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£18.48
-
Aluminium Pulley 72T XL037 (P72XL037)
Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.Aluminium Pulley 72T XL037 (P72XL037) Part No. 7801-243 Material P72XL037 Code(Aluminium) P72XL037 Type 3 No. Teeth 72 Dp 116 De 116 Df Dm 45 F 14.3 L 25 Bore(d) 10 No. Flanges 0 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£23.03
You have seen 43 out of 43 products
