MXL Timing Pulleys

Show previous products

•

  Aluminium Pulley 22T MXL025F, With Pilot Bore (P22MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 22T MXL025F, With Pilot Bore (P22MXL025F) Part No. 7800-011 Code P22MXL025F Type 1F No. Teeth 22 Dp 14.23 De 13.72 Df 17 Dm 10 F 11 L 16 Bore (d) 3 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £7.82

•

  Aluminium Pulley 22T MXL025FB, With Setscrew (P22MXL025FB)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 22T MXL025FB, With Setscrew (P22MXL025FB) Part No. 7800-012 Code P22MXL025FB Type 0FB No. Teeth 22 Dp 14.23 De 13.72 Df 18 Dm 18 F 7 L 16 Bore (d) 3 No. Flanges 2 Gs M2.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £8.08

•

  Aluminium Pulley 24T MXL025F, With Pilot Bore (P24MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 24T MXL025F, With starter Bore (P24MXL025F) Part No. 7800-013 Code P24MXL025F Type 1F No. Teeth 24 Dp 15.52 De 15.01 Df 20 Dm 10 F 11 L 16 Bore (d) 0 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £5.17

•

  Aluminium Pulley 24T MXL025FB, With Setscrew (P24MXL025FB)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 24T MXL025FB, With Setscrew (P24MXL025FB) Part No. 7800-014 Code P24MXL025FB Type 0FB No. Teeth 24 Dp 15.52 De 15.01 Df 19 Dm 19 F 7 L 16 Bore (d) 3 No. Flanges 2 Gs M2.5 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £8.16

•

  Aluminium Pulley 28T MXL025F, With Pilot Bore (P28MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 28T MXL025F, With Pilot Bore (P28MXL025F) Part No. 7800-015 Code P28MXL025F Type 1F No. Teeth 28 Dp 18.11 De 17.6 Df 25 Dm 11 F 11 L 16 Bore (d) 3 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £8.55

•

  Aluminium Pulley 30T MXL025F, With Pilot Bore (P30MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 30T MXL025F, With starter Bore (P30MXL025F) Part No. 7800-016 Code P30MXL025F Type 1F No. Teeth 30 Dp 19.4 De 18.9 Df 25 Dm 12 F 11 L 16 Bore (d) 0 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £5.67

•

  Aluminium Pulley 32T MXL025F, With Pilot Bore (P32MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 32T MXL025F, With starter Bore (P32MXL025F) Part No. 7800-017 Code P32MXL025F Type 1F No. Teeth 32 Dp 20.7 De 20.19 Df 26 Dm 14 F 11 L 16 Bore (d) 0 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £5.67

•

  Aluminium Pulley 36T MXL025F, With Pilot Bore (P36MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 36T MXL025F, With starter Bore (P36MXL025F) Part No. 7800-018 Code P36MXL025F Type 1F No. Teeth 36 Dp 23.29 De 22.78 Df 28 Dm 16 F 11 L 16 Bore (d) 0 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £5.83

•

  Aluminium Pulley 40T MXL025F, With Pilot Bore (P40MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 40T MXL025F, With starter Bore (P40MXL025F) Part No. 7800-019 Code P40MXL025F Type 1F No. Teeth 40 Dp 25.87 De 25.37 Df 32 Dm 18 F 11 L 16 Bore (d) 0 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £6.16

•

  Aluminium Pulley 42T MXL025F, With Pilot Bore (P42MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 42T MXL025F, With starter Bore (P42MXL025F) Part No. 7800-020 Code P42MXL025F Type 1F No. Teeth 42 Dp 27.17 De 26.67 Df 32 Dm 18 F 11 L 16 Bore (d) 0 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £6.49

•

  Aluminium Pulley 44T MXL025F, With Pilot Bore (P44MXL025F)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 44T MXL025F, With starter Bore (P44MXL025F) Part No. 7800-021 Code P44MXL025F Type 1F No. Teeth 44 Dp 28.46 De 27.95 Df 36 Dm 18 F 11 L 16 Bore (d) 0 No. Flanges 2 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £6.60

•

  Aluminium Pulley 48T MXL025, With Pilot Bore (P48MXL025)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 48T MXL025, With starter Bore (P48MXL025) Part No. 7800-022 Code P48MXL025 Type 2 No. Teeth 48 Dp 31.05 De 30.54 Df – Dm 20 F 11 L 16 Bore (d) 0 No. Flanges 0 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £6.93

•

  Aluminium Pulley 60T MXL025, With Pilot Bore (P60MXL025)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 60T MXL025, With starter Bore (P60MXL025) Part No. 7800-023 Code P60MXL025 Type 2 No. Teeth 60 Dp 38.81 De 38.3 Df – Dm 24 F 11 L 16 Bore (d) 0 No. Flanges 0 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £37.70

•

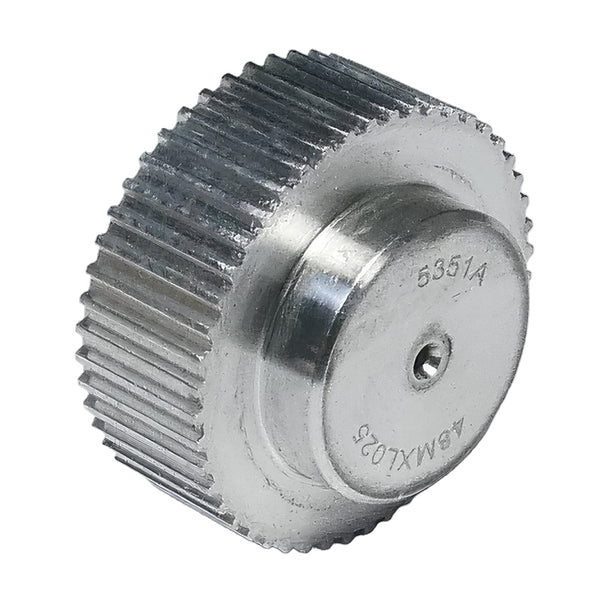

  Aluminium Pulley 72T MXL025, With Pilot Bore (P72MXL025)

  Aluminium MXL pulleys with zinc plated steel flanges. Pitch 0.080" (2.032mm).Aluminium Pulley 72T MXL025, With starter Bore (P72MXL025) Part No. 7800-024 Code P72MXL025 Type 2 No. Teeth 72 Dp 46.57 De 46.06 Df – Dm 25 F 11 L 16 Bore (d) 0 No. Flanges 0 Gs – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £9.13

•

  Plastic 100MXL025 Type C 8mm Bore (PP100MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 100MXL025 Type C 8mm Bore (PP100MXL025M) Part No. 7800-601 Code PP100MXL025M Type C No.teeth 100 Dp 64.7 De 64.16 Df 69 Dm 17 Fw 8 L 17.5 Bore(d) 8 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £7.92

•

  Plastic 10MXL025 Type A 3mm Bore (PP10MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 10MXL025 Type A 3mm Bore (PP10MXL025M) Part No. 7800-603 Code PP10MXL025M Type A No.teeth 10 Dp 6.45 De 5.97 Df 11 Dm 11 Fw 8 L 17.5 Bore(d) 3 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £4.88

•

  Plastic 110MXL025 Type C 8mm Bore (PP110MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 110MXL025 Type C 8mm Bore (PP110MXL025M) Part No. 7800-604 Code PP110MXL025M Type C No.teeth 110 Dp 71.2 De 70.63 Df 75 Dm 17 Fw 8 L 17.5 Bore(d) 8 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £9.19

•

  Plastic 11MXL025 Type A 3mm Bore (PP11MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 11MXL025 Type A 3mm Bore (PP11MXL025M) Part No. 7800-606 Code PP11MXL025M Type A No.teeth 11 Dp 7.11 De 6.6 Df 12 Dm 11 Fw 8 L 17.5 Bore(d) 3 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £4.88

•

  Plastic 120MXL025 Type C 1/4"Brass Insert (PP120MXL025I)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with imperial insert with grub screw. Polycarbonate - Glass Filled.Plastic 120MXL025 Type C 1/4"Brass Insert (PP120MXL025I) Part No. 7800-607 Code PP120MXL025I Insert Brass Type C No. Teeth 120 Dp 3.056 De 3.036 Df 3.23 Dm 0.688 Fw 0.312 L 0.69 Bore (d) 0.25 Pw 0.437 GrubScrew Gs 1 x 6-32 UNC K 0.125 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £11.05

•

  Plastic 120MXL025 Type C 8mm Bore (PP120MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 120MXL025 Type C 8mm Bore (PP120MXL025M) Part No. 7800-608 Code PP120MXL025M Type C No.teeth 120 Dp 77.6 De 77.11 Df 82 Dm 17 Fw 8 L 17.5 Bore(d) 8 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £9.76

•

  Plastic 12MXL025 Type A 3mm Bore (PP12MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 12MXL025 Type A 3mm Bore (PP12MXL025M) Part No. 7800-610 Code PP12MXL025M Type A No.teeth 12 Dp 7.77 De 7.26 Df 12 Dm 11 Fw 8 L 17.5 Bore(d) 3 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £4.88

•

  Plastic 130MXL025 Type C 8mm Bore (PP130MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 130MXL025 Type C 8mm Bore (PP130MXL025M) Part No. 7800-611 Code PP130MXL025M Type C No.teeth 130 Dp 84.1 De 83.57 Df 88 Dm 17 Fw 8 L 17.5 Bore(d) 8 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £10.12

•

  Plastic 14MXL025 Type A 4mm Bore (PP14MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 14MXL025 Type A 4mm Bore (PP14MXL025M) Part No. 7800-613 Code PP14MXL025M Type A No.teeth 14 Dp 9.07 De 8.56 Df 13 Dm 11 Fw 8 L 17.5 Bore(d) 4 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £5.00

•

  Plastic 15MXL025 Type A 4mm Bore (PP15MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 15MXL025 Type A 4mm Bore (PP15MXL025M) Part No. 7800-614 Code PP15MXL025M Type A No.teeth 15 Dp 9.07 De 9.19 Df 14 Dm 11 Fw 8 L 17.5 Bore(d) 4 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £4.69

•

  Plastic 16MXL025 Type A 4mm Bore (PP16MXL025M)

  Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with no insert or grub screw. Polycarbonate - Glass Filled.Plastic 16MXL025 Type A 4mm Bore (PP16MXL025M) Part No. 7800-615 Code PP16MXL025M Type A No.teeth 16 Dp 10.3 De 9.83 Df 15 Dm 11 Fw 8 L 17.5 Bore(d) 4 Pw 11.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £4.73

Show more products
