Metric Spur Gears
-
Nylon 6 Spur Gear MOD 4 16T, With Hub (PS40/16B)
Metric Spur Gears in moulded 30% Glass-filled Nylon 6. . Bore unmachined typically 0.5-1mm undersize. Standard tolerances, unless. otherwise stated ±0.25mm. Max recommended working temperature 130°C. All dimensions in mm. Moulded Nylon 6 (PA6), 30% Glass filled. 20° P.ANylon 6 Spur Gear Mod 4 16T, With Hub (PS40/16B) Part No. 7701-893 Code PS40/16B No. of Teeth 16 Pitch Ø B 64 Pre-bore (rough) 20 Hub/Boss Ø D 50 Outside Ø A 72 O/A Width F 60 Face Width G 40 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£33.02
-
Nylon 6 Spur Gear MOD 4 18T, With Hub (PS40/18B)
Metric Spur Gears in moulded 30% Glass-filled Nylon 6. . Bore unmachined typically 0.5-1mm undersize. Standard tolerances, unless. otherwise stated ±0.25mm. Max recommended working temperature 130°C. All dimensions in mm. Moulded Nylon 6 (PA6), 30% Glass filled. 20° P.ANylon 6 Spur Gear Mod 4 18T, With Hub (PS40/18B) Part No. 7701-894 Code PS40/18B No. of Teeth 18 Pitch Ø B 72 Pre-bore (rough) 20 Hub/Boss Ø D 50 Outside Ø A 80 O/A Width F 60 Face Width G 40 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£35.02
-
Nylon 6 Spur Gear MOD 4 20T, With Hub (PS40/20B)
Metric Spur Gears in moulded 30% Glass-filled Nylon 6. . Bore unmachined typically 0.5-1mm undersize. Standard tolerances, unless. otherwise stated ±0.25mm. Max recommended working temperature 130°C. All dimensions in mm. Moulded Nylon 6 (PA6), 30% Glass filled. 20° P.ANylon 6 Spur Gear Mod 4 20T, With Hub (PS40/20B) Part No. 7701-895 Code PS40/20B No. of Teeth 20 Pitch Ø B 80 Pre-bore (rough) 20 Hub/Boss Ø D 60 Outside Ø A 88 O/A Width F 60 Face Width G 40 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£42.91
-
S/S Spur Gear MOD 1 100T, With Hub (STS10/100B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 100T, With Hub (STS10/100B) Part No. 7701-901 Code STS10/100B Type B No. of Teeth 100 Pitch Ø dp 100 Bore Ø H8 10 Hub/Boss Ø dm 50 Outside Ø de 102 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£85.89
-
S/S Spur Gear MOD 1 120T, With Hub (STS10/120B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 120T, With Hub (STS10/120B) Part No. 7701-902 Code STS10/120B Type B No. of Teeth 120 Pitch Ø dp 120 Bore Ø H8 10 Hub/Boss Ø dm 50 Outside Ø de 122 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£111.44
-
S/S Spur Gear MOD 1 12T, With Hub (STS10/12B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 12T, With Hub (STS10/12B) Part No. 7701-903 Code STS10/12B Type B No. of Teeth 12 Pitch Ø dp 12 Bore Ø H8 5 Hub/Boss Ø dm 9 Outside Ø de 14 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.58
-

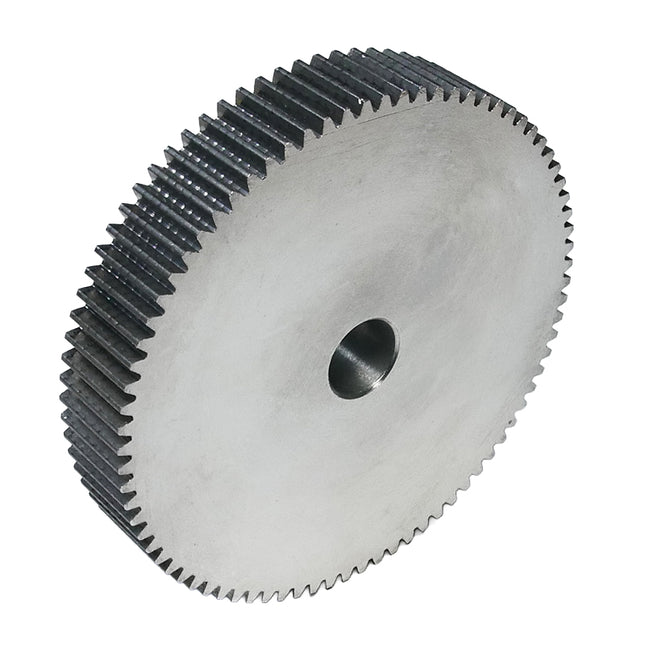

S/S Spur Gear MOD 1 150T, No Hub (STS10/150A)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 150T, No Hub (STS10/150A) Part No. 7701-904 Code STS10/150A Type A No. of Teeth 150 Pitch Ø dp 150 Bore Ø H8 16 Hub/Boss Ø dm N/A Outside Ø de 152 O/A Width A N/A Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£157.54
-
S/S Spur Gear MOD 1 150T, With Hub (STS10/150B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 150T, With Hub (STS10/150B) Part No. 7701-905 Code STS10/150B Type B No. of Teeth 150 Pitch Ø dp 150 Bore Ø H8 10 Hub/Boss Ø dm 50 Outside Ø de 152 O/A Width A 25 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£147.22
-
S/S Spur Gear MOD 1 15T, With Hub (STS10/15B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 15T, With Hub (STS10/15B) Part No. 7701-906 Code STS10/15B Type B No. of Teeth 15 Pitch Ø dp 15 Bore Ø H8 6 Hub/Boss Ø dm 12 Outside Ø de 17 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£17.01
-
S/S Spur Gear MOD 1 16T, With Hub (STS10/16B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 16T, With Hub (STS10/16B) Part No. 7701-907 Code STS10/16B Type B No. of Teeth 16 Pitch Ø dp 16 Bore Ø H8 6 Hub/Boss Ø dm 13 Outside Ø de 18 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£18.81
-
S/S Spur Gear MOD 1 20T, With Hub (STS10/20B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 20T, With Hub (STS10/20B) Part No. 7701-908 Code STS10/20B Type B No. of Teeth 20 Pitch Ø dp 20 Bore Ø H8 6 Hub/Boss Ø dm 16 Outside Ø de 22 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£24.34
-
S/S Spur Gear MOD 1 24T, With Hub (STS10/24B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 24T, With Hub (STS10/24B) Part No. 7701-909 Code STS10/24B Type B No. of Teeth 24 Pitch Ø dp 24 Bore Ø H8 8 Hub/Boss Ø dm 20 Outside Ø de 26 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£19.46
-
S/S Spur Gear MOD 1 25T, With Hub (STS10/25B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 25T, With Hub (STS10/25B) Part No. 7701-910 Code STS10/25B Type B No. of Teeth 25 Pitch Ø dp 25 Bore Ø H8 8 Hub/Boss Ø dm 20 Outside Ø de 27 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£22.85
-
S/S Spur Gear MOD 1 30T, With Hub (STS10/30B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 30T, With Hub (STS10/30B) Part No. 7701-911 Code STS10/30B Type B No. of Teeth 30 Pitch Ø dp 30 Bore Ø H8 8 Hub/Boss Ø dm 25 Outside Ø de 32 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£26.95
-
S/S Spur Gear MOD 1 36T, With Hub (STS10/36B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 36T, With Hub (STS10/36B) Part No. 7701-912 Code STS10/36B Type B No. of Teeth 36 Pitch Ø dp 36 Bore Ø H8 8 Hub/Boss Ø dm 25 Outside Ø de 38 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£35.38
-
S/S Spur Gear MOD 1 40T, With Hub (STS10/40B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 40T, With Hub (STS10/40B) Part No. 7701-913 Code STS10/40B Type B No. of Teeth 40 Pitch Ø dp 40 Bore Ø H8 8 Hub/Boss Ø dm 25 Outside Ø de 42 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£35.42
-
S/S Spur Gear MOD 1 48T, With Hub (STS10/48B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 48T, With Hub (STS10/48B) Part No. 7701-914 Code STS10/48B Type B No. of Teeth 48 Pitch Ø dp 48 Bore Ø H8 8 Hub/Boss Ø dm 30 Outside Ø de 50 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£47.01
-
S/S Spur Gear MOD 1 50T, With Hub (STS10/50B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 50T, With Hub (STS10/50B) Part No. 7701-915 Code STS10/50B Type B No. of Teeth 50 Pitch Ø dp 50 Bore Ø H8 10 Hub/Boss Ø dm 30 Outside Ø de 52 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£43.05
-
S/S Spur Gear MOD 1 60T, With Hub (STS10/60B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 60T, With Hub (STS10/60B) Part No. 7701-916 Code STS10/60B Type B No. of Teeth 60 Pitch Ø dp 60 Bore Ø H8 10 Hub/Boss Ø dm 40 Outside Ø de 62 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£58.89
-
S/S Spur Gear MOD 1 70T, With Hub (STS10/70B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 70T, With Hub (STS10/70B) Part No. 7701-917 Code STS10/70B Type B No. of Teeth 70 Pitch Ø dp 70 Bore Ø H8 10 Hub/Boss Ø dm 50 Outside Ø de 70 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£73.52
-
S/S Spur Gear MOD 1 80T, With Hub (STS10/80B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 80T, With Hub (STS10/80B) Part No. 7701-918 Code STS10/80B Type B No. of Teeth 80 Pitch Ø dp 80 Bore Ø H8 10 Hub/Boss Ø dm 50 Outside Ø de 82 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£78.53
-
S/S Spur Gear MOD 1 90T, With Hub (STS10/90B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1 90T, With Hub (STS10/90B) Part No. 7701-919 Code STS10/90B Type B No. of Teeth 90 Pitch Ø dp 90 Bore Ø H8 10 Hub/Boss Ø dm 50 Outside Ø de 92 O/A Width A 25 Face Width B 12 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£88.33
-
S/S Spur Gear MOD 1.25 12T, With Hub (STS12.5/12B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1.25 12T, With Hub (STS12.5/12B) Note: hobbed type pinion with 8mm face width , then cutter runout. Also with 3mm fixing/cross hole through the boss. Part No. 7701-920 Code STS12.5/12B Type B No. of Teeth 12 Pitch Ø dp 15 Bore Ø H8 8 Hub/Boss Ø dm 17.5 Outside Ø de 17.5 O/A Width A 20 Face Width B 8 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£34.27
-
S/S Spur Gear MOD 1.25 24T, With Hub (STS12.5/24B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1.25 24T, With Hub (STS12.5/24B) Note: Comes withg a 3mm fixing/cross hole through the boss. Part No. 7701-921 Code STS12.5/24B Type B No. of Teeth 24 Pitch Ø dp 30 Bore Ø H8 8 Hub/Boss Ø dm 15 Outside Ø de 32.5 O/A Width A 20 Face Width B 8 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£32.63
-
S/S Spur Gear MOD 1.5 100T, With Hub (STS15/100B)
Standard : to DIN 867, DIN 3962, DIN 3963, Grade/Quality 9 or Equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Spur Gear Mod 1.5 100T, With Hub (STS15/100B) Part No. 7701-922 Code STS15/100B Type B No. of Teeth 100 Pitch Ø dp 150 Bore Ø H8 15 Hub/Boss Ø dm 70 Outside Ø de 153 O/A Width A 30 Face Width B 15 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£154.14
You have seen 600 out of 1237 products
