Metric Gear Racks
-
Nylon 6 MOD 1.5 17x17x250mm Plastic Rack (PR15/17/.25)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Nylon 6 Mod 1.5 17x17x250mm Plastic Rack (PR15/17/.25) Part No. 7700-125 Code PR15/17/.25 Pitch module 1.5 Type S Width B 17 Height A 17 Height to pitch line hp 15.5 Length L 250 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£14.77
-
Nylon 6 MOD 1.5 17x17x500mm Plastic Rack (PR15/17/.50)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Nylon 6 Mod 1.5 17x17x500mm Plastic Rack (PR15/17/.50) Part No. 7700-126 Code PR15/17/.50 Pitch module 1.5 Type S Width B 17 Height A 17 Height to pitch line hp 15.5 Length L 500 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£33.11
-
Nylon 6 MOD 1.5 17x17x1000mm Plastic Rack (PR15/17/1.00)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Nylon 6 Mod 1.5 17x17x1000mm Plastic Rack (PR15/17/1.00) Part No. 7700-127 Code PR15/17/1.00 Pitch module 1.5 Type S Width B 17 Height A 17 Height to pitch line hp 15.5 Length L 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£58.87
-
Delrin Acetal/Delrin MOD 2.0 15x20mmx0.4m Plastic Rack (DR20/15/.4)
Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Acetal/DELRIN racks teeth machinedAcetal/Delrin Mod 2.0 15x20mmx0.4m Plastic Rack (DR20/15/.4) Part No. 7700-128 Code DR20/15/.4 Pitch module 2 Width B 15 Overall height A 20 Height to pitch line hp 18 Length L 400 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£48.58
-
Delrin Acetal/Delrin MOD 2.0 20x20mmx0.5m Plastic Rack (DR20/20/.5)
Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Acetal/DELRIN racks teeth machinedAcetal/Delrin Mod 2.0 20x20mmx0.5m Plastic Rack (DR20/20/.5) Part No. 7700-129 Code DR20/20/.5 Pitch module 2 Width B 20 Overall height A 20 Height to pitch line hp 18 Length L 500 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£58.57
-
Delrin Acetal/Delrin MOD 2.0 20x20mmx1m Plastic Rack (DR20/20/1)
Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Acetal/DELRIN racks teeth machinedAcetal/Delrin Mod 2.0 20x20mmx1m Plastic Rack (DR20/20/1) Part No. 7700-130 Code DR20/20/1 Pitch module 2 Width B 20 Overall height A 20 Height to pitch line hp 18 Length L 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£111.65
-
Delrin Acetal/Delrin MOD 3.0 30x30mmx1m Plastic Rack (DR30/30/1)
Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Acetal/DELRIN racks teeth machinedAcetal/Delrin Mod 3.0 30x30mmx1m Plastic Rack (DR30/30/1) Part No. 7700-131 Code DR30/30/1 Pitch module 3 Width B 30 Overall height A 30 Height to pitch line hp 27 Length L 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£201.70
-
Plastic MOD 2 Rack 20x20x250mm (PR20/20/.25)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Plastic Mod 2 Rack 20x20x250mm (PR20/20/.25) Part No. 7700-132 Code PR20/20/.25 Pitch module 2 Type S Width B 20 Height A 20 Height to pitch line hp 18 Length L 250 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£26.01
-
Plastic MOD 2 Rack 20x20x500mm (PR20/20/.50)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Plastic Mod 2 Rack 20x20x500mm (PR20/20/.50) Part No. 7700-133 Code PR20/20/.50 Pitch module 2 Type S Width B 20 Height A 20 Height to pitch line hp 18 Length L 500 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£39.71
-
Plastic MOD 2 Rack 20x20x1000mm (PR20/20/1.00)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Plastic Mod 2 Rack 20x20x1000mm (PR20/20/1.00) Part No. 7700-134 Code PR20/20/1.00 Pitch module 2 Type S Width B 20 Height A 20 Height to pitch line hp 18 Length L 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£79.57
-
Plastic MOD 3 Rack 30x30x500mm (PR30/30/.50)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Plastic Mod 3 Rack 30x30x500mm (PR30/30/.50) Part No. 7700-135 Code PR30/30/.50 Pitch module 3 Type S Width B 30 Height A 30 Height to pitch line hp 27 Length L 500 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£54.42
-
Plastic MOD 3 Rack 30x30x1000mm (PR30/30/1.00)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Plastic Mod 3 Rack 30x30x1000mm (PR30/30/1.00) Part No. 7700-136 Code PR30/30/1.00 Pitch module 3 Type S Width B 30 Height A 30 Height to pitch line hp 27 Length L 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£87.07
-
Plastic MOD 4 Rack 28x20x1000mm (PR40/28/1.00)
Module 1.5 to 4.0 have a steel core. All dimensions in mm. 30% Glass filled Nylon 6Plastic Mod 4 Rack 28x20x1000mm (PR40/28/1.00) Part No. 7700-137 Code PR40/28/1.00 Pitch module 4 Type S Width B 20 Height A 28 Height to pitch line hp 24 Length L 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£83.78
-
Duracon Alu FixRail 0.8x1m (AFR08/10/1)
AFR Aluminium Fixing rail for use with our flexible metric racks and FKIT rack clamping plate and screws Alu FixRail 0.8x1m (AFR08/10/1) Part No. 7700-138 Code AFR08/10/1 A mm 10.3 B mm. 4.4 C mm. 4.7 D mm. 2 E mm. 1.7 F mm. 8.3 Length mm 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£27.28
-
Duracon Alu FixRail 1.0x1m (AFR10/12/1)
AFR Aluminium Fixing rail for use with our flexible metric racks and FKIT rack clamping plate and screws Alu FixRail 1.0x1m (AFR10/12/1) Part No. 7700-139 Code AFR10/12/1 A mm 12.3 B mm. 5.6 C mm. 5.2 D mm. 2 E mm. 2.2 F mm. 10.3 Length mm 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£34.29
-

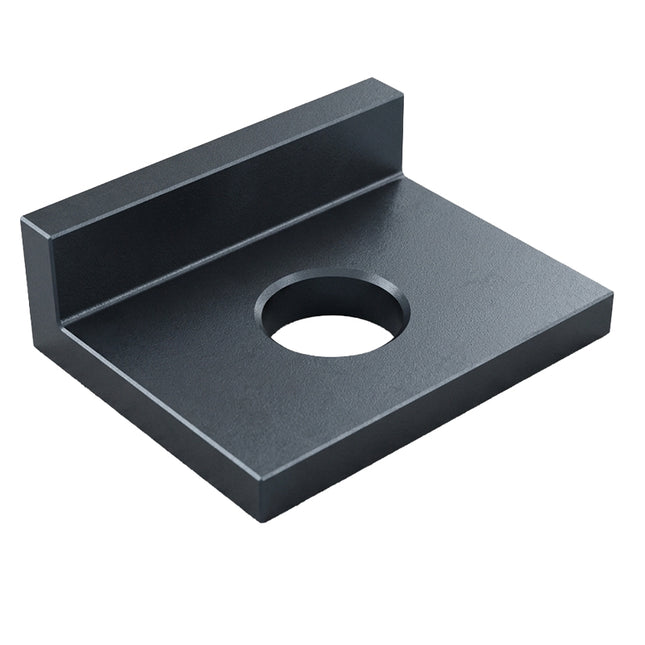

Duracon Gear Rack Rail Fixing Kit (FKIT0810)
FKIT rack clamping plate and screws for use with our AFR Aluminium Fixing rail and our flexible metric racksGear Rack Rail Fixing Kit (FKIT0810) Part No. 7700-140 Code FKIT0810 For Rack MOD 0.8 / 1.0 A mm. 10.2 B mm. 8 C mm. 4.5 D mm. 2.7 E mm. 1.2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£13.62
-
Duracon Duracon Rack MOD 0.8 3.3x8mmx2m (PFR08/8/2)
Recommended minimum pinion size = 20 teeth. Recommended minimum bending radius >=150mm. Maximum working temperature = 100°C. Duracon Flexible Racks are available in 2 metre lengths ( ±10 mm) and can easily be cut to the required length. DURACON M25-44Duracon Rack Mod 0.8 3.3x8mmx2m (PFR08/8/2) Part No. 7700-141 Code PFR08/8/2 Pitch module 0.8 Standard Length mm. 2000 B mm. 3.8 B1 mm. 3 C mm. 3.3 D mm. 2.5 E mm. 1.5 F mm. 0.7 G mm. 3.7 H mm. 8 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£61.92
-

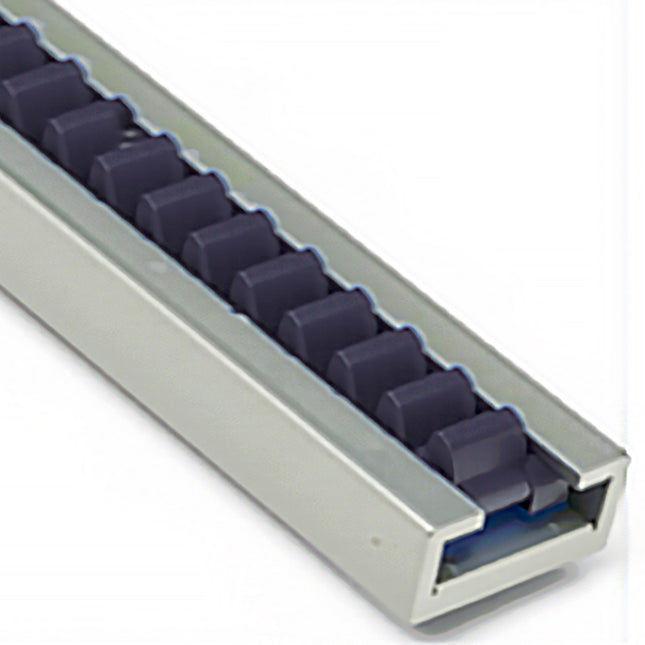

Duracon Duracon Rack MOD 1 4.3x10mmx2m (PFR10/10/2)
Recommended minimum pinion size = 20 teeth. Recommended minimum bending radius >=150mm. Maximum working temperature = 100°C. Duracon Flexible Racks are available in 2 metre lengths ( ±10 mm) and can easily be cut to the required length. DURACON M25-44Duracon Rack Mod 1 4.3x10mmx2m (PFR10/10/2) Part No. 7700-142 Code PFR10/10/2 Pitch module 1 Standard Length mm. 2000 B mm. 5 B1 mm. 4 C mm. 4.3 D mm. 3.3 E mm. 2 F mm. 0.9 G mm. 4.9 H mm. 10 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£96.43
-

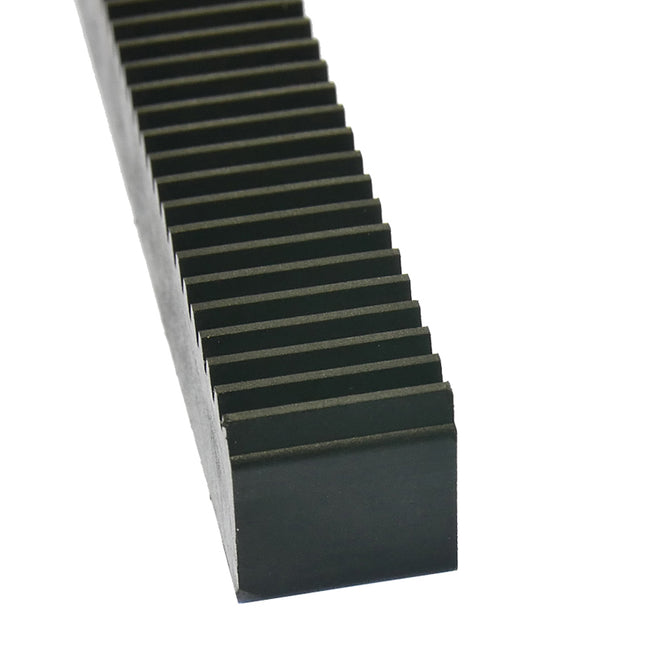

PA6 + GF MOD 1 Rack 15x15x150mm
MOD 1 rack, pressure angle 20 degrees.Material: Polyamide-based technopolymer reinforced with glass fibre.Colour: Grey / Black Part No. 7700-150 Pitch module 1.0 Width B 15 Overall height A 15 Length L 165
£5.36
-

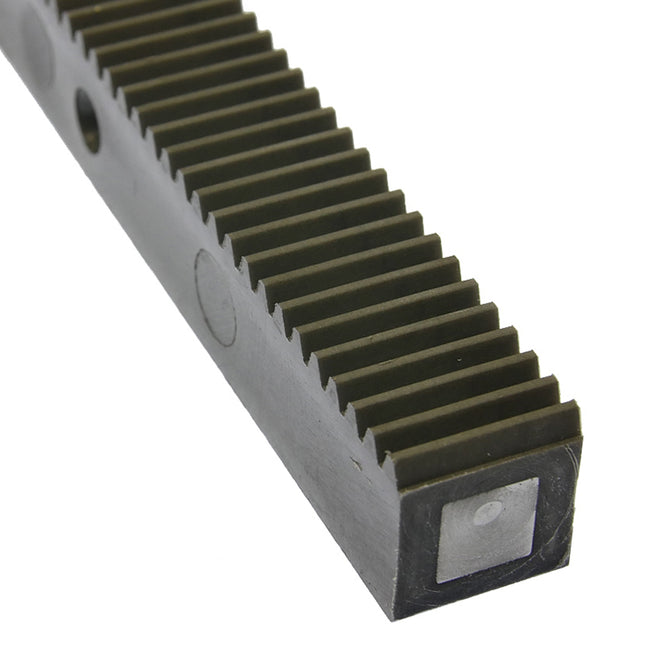

PA6 + GF MOD 1 Rack Steel Core 15x15x350mm
MOD 1 rack, pressure angle 20 degrees.Material: Polyamide-based technopolymer reinforced with glass fibre with 8x8mm steel core.Colour: Grey / Brown Part No. 7700-151 Pitch module 1.0 Width B 15 Overall height A 15 Length L 351
£15.96
-

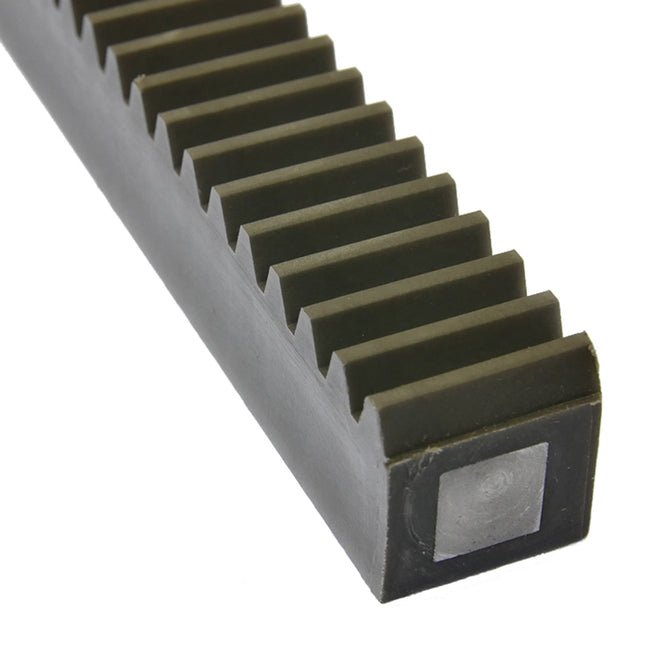

PA6 + GF MOD 2 Rack Steel Core 20x20x250mm
MOD 2 rack, pressure angle 20 degrees.Material: Polyamide-based technopolymer reinforced with glass fibre with 10x10mm steel core.Colour: Grey / Brown Part No. 7700-152 Pitch module 2.0 Width B 20 Overall height A 20 Length L 250
£14.22
-
PA6 + GF MOD 2 Rack Steel Core 20x20x565mm
MOD 2 rack, pressure angle 20 degrees.Material: Polyamide-based technopolymer reinforced with glass fibre with 10x10mm steel core.Colour: Grey / Brown Part No. 7700-153 Pitch module 2.0 Width B 20 Overall height A 20 Length L 565
£30.35
-
S/S Rectangular Rack MOD 1 10x10mmx0.5m (STR10/10/.5)
Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Rectangular Rack Mod 1 10x10mmx0.5m (STR10/10/.5) Part No. 7700-301 Code STR10/10/.5 Pitch module 1 Width B 10 Height A 10 Height to Pitch Line hp 9 Length L 500 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£38.88
-
S/S Rectangular Rack MOD 1 10x10mmx1m (STR10/10/1)
Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Rectangular Rack Mod 1 10x10mmx1m (STR10/10/1) Part No. 7700-302 Code STR10/10/1 Pitch module 1 Width B 10 Height A 10 Height to Pitch Line hp 9 Length L 1000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£83.10
-
S/S Rectangular Rack MOD 1 10x10mmx2m (STR10/10/2)
Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Stainless Steel AISI 303/304S/S Rectangular Rack Mod 1 10x10mmx2m (STR10/10/2) Part No. 7700-303 Code STR10/10/2 Pitch module 1 Width B 10 Height A 10 Height to Pitch Line hp 9 Length L 2000 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur
£162.62
You have seen 50 out of 156 products
