HTD Pilot Bore Timing Pulleys

Show previous products

•

  HTD Pulley 64-8M-30F, With Pilot Bore (HP64-8M-30F)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 64-8M-30F, With Pilot Bore (HP64-8M-30F) Part No. 7800-482 Code HP64-8M-30F Material Steel No. teeth 64 Type 2F Dp 162.97 De 161.6 Df 168 Dm 90 F 38 L 48 Bore (d) 15 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £43.74

•

  HTD Pulley 64-8M-50F, With Pilot Bore (HP64-8M-50F)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 64-8M-50F, With Pilot Bore (HP64-8M-50F) Part No. 7800-483 Code HP64-8M-50F Material Steel No. teeth 64 Type 2F Dp 162.97 De 161.6 Df 168 Dm 100 F 60 L 60 Bore (d) 18 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £55.48

•

  HTD Pulley 64-8M-85F, With Pilot Bore (HP64-8M-85F)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 64-8M-85F, With Pilot Bore (HP64-8M-85F) Part No. 7800-484 Code HP64-8M-85F Material Steel No. teeth 64 Type 6F Dp 162.97 De 161.6 Df 168 Dm 100 F 95 L 95 Bore (d) 20 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £83.58

•

  HTD Pulley 72-8M-20F, With Pilot Bore (HP72-8M-20F)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 72-8M-20F, With Pilot Bore (HP72-8M-20F) Part No. 7800-485 Code HP72-8M-20F Material Steel No. teeth 72 Type 2F Dp 183.35 De 181.97 Df 192 Dm 80 F 28 L 38 Bore (d) 15 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £43.01

•

  HTD Pulley 72-8M-30F, With Pilot Bore (HP72-8M-30F)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 72-8M-30F, With Pilot Bore (HP72-8M-30F) Part No. 7800-486 Code HP72-8M-30F Material Steel No. teeth 72 Type 2F Dp 183.35 De 181.97 Df 192 Dm 95 F 38 L 48 Bore (d) 15 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £54.39

•

  HTD Pulley 72-8M-50F, With Pilot Bore (HP72-8M-50F)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 72-8M-50F, With Pilot Bore (HP72-8M-50F) Part No. 7800-487 Code HP72-8M-50F Material Steel No. teeth 72 Type 2F Dp 183.35 De 181.97 Df 192 Dm 100 F 60 L 60 Bore (d) 18 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £66.95

•

  HTD Pulley 72-8M-85F, With Pilot Bore (HP72-8M-85F)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 72-8M-85F, With Pilot Bore (HP72-8M-85F) Part No. 7800-488 Code HP72-8M-85F Material Steel No. teeth 72 Type 6F Dp 183.35 De 181.97 Df 192 Dm 100 F 95 L 95 Bore (d) 20 No. flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £101.16

•

  HTD Pulley 80-8M-20, With Pilot Bore (HP80-8M-20)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 80-8M-20, With Pilot Bore (HP80-8M-20) Part No. 7800-489 Code HP80-8M-20 Material Cast Iron No. teeth 80 Type 3 Dp 203.72 De 202.35 Df – Dm 90 F 28 L 38 Bore (d) 15 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £46.06

•

  HTD Pulley 80-8M-30, With Pilot Bore (HP80-8M-30)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 80-8M-30, With Pilot Bore (HP80-8M-30) Part No. 7800-490 Code HP80-8M-30 Material Cast Iron No. teeth 80 Type 3 Dp 203.72 De 202.35 Df – Dm 100 F 38 L 48 Bore (d) 15 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £51.76

•

  HTD Pulley 80-8M-50, With Pilot Bore (HP80-8M-50)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 80-8M-50, With Pilot Bore (HP80-8M-50) Part No. 7800-491 Code HP80-8M-50 Material Cast Iron No. teeth 80 Type 3 Dp 203.72 De 202.35 Df – Dm 110 F 60 L 60 Bore (d) 18 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £79.38

•

  HTD Pulley 80-8M-85, With Pilot Bore (HP80-8M-85)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 80-8M-85, With Pilot Bore (HP80-8M-85) Part No. 7800-492 Code HP80-8M-85 Material Cast Iron No. teeth 80 Type 5 Dp 203.72 De 202.35 Df – Dm 110 F 95 L 95 Bore (d) 20 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £123.02

•

  HTD Pulley 90-8M-20, With Pilot Bore (HP90-8M-20)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 90-8M-20, With Pilot Bore (HP90-8M-20) Part No. 7800-493 Code HP90-8M-20 Material Cast Iron No. teeth 90 Type 3 Dp 229.18 De 227.81 Df – Dm 90 F 28 L 38 Bore (d) 15 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £51.18

•

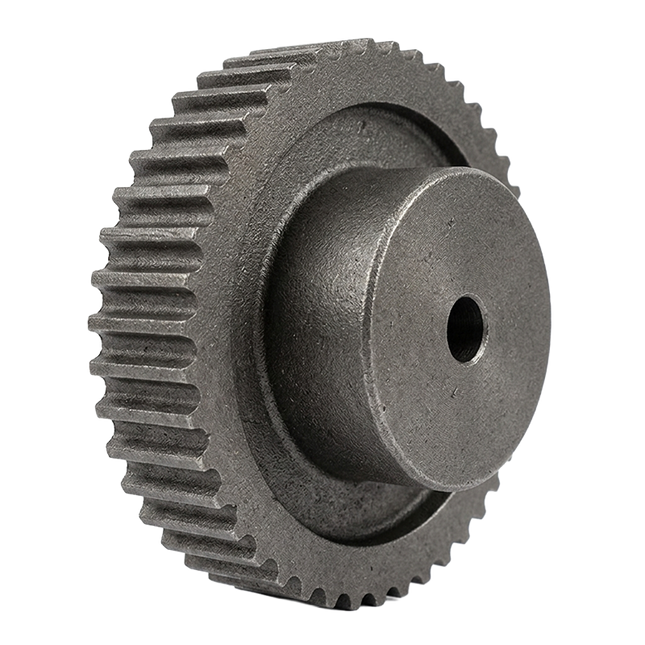

  HTD Pulley 90-8M-30, With Pilot Bore (HP90-8M-30)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 90-8M-30, With Pilot Bore (HP90-8M-30) Part No. 7800-494 Code HP90-8M-30 Material Cast Iron No. teeth 90 Type 3 Dp 229.18 De 227.81 Df – Dm 100 F 38 L 48 Bore (d) 15 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £62.86

•

  HTD Pulley 90-8M-50, With Pilot Bore (HP90-8M-50)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 90-8M-50, With Pilot Bore (HP90-8M-50) Part No. 7800-495 Code HP90-8M-50 Material Cast Iron No. teeth 90 Type 3 Dp 229.18 De 227.81 Df – Dm 110 F 60 L 60 Bore (d) 18 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £91.30

•

  HTD Pulley 90-8M-85, With Pilot Bore (HP90-8M-85)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a pilot bore.HTD Pulley 90-8M-85, With Pilot Bore (HP90-8M-85) Part No. 7800-496 Code HP90-8M-85 Material Cast Iron No. teeth 90 Type 5 Dp 229.18 De 227.81 Df – Dm 110 F 95 L 95 Bore (d) 20 No. flanges – Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £127.14

•

  HTD Pulley 22-8M-20F (HT22-8M-20F)

  UK Gears supply High Torque Drive (HTD) timing pulleys in pilot bore type and taper lock bush type.The material used for smaller pulleys is Aluminium, medium sizes are in Steel, larger sizes in Cast Iron, all featuring flanges made from Steel. HTD, CXP and CXA belts are all designed to run on these pulleys. This HTD pulley has a taper bore for use with our taper 1008 bushes.HTD Pulley 22-8M-20F (HT22-8M-20F) Part No. 7800-508 Code HT22-8M-20F Material Steel No. Teeth 22 Type 2F Bush 1008 Dp 56.02 De 54.65 Df 60 Dm – Di 37 F 28 S 22 P 6 No. Flanges 2 Every effort is taken to ensure the accuracy of the table data Design variations and errors although rare may occur

  Read more less

  £6.57
